SKU: 5175251

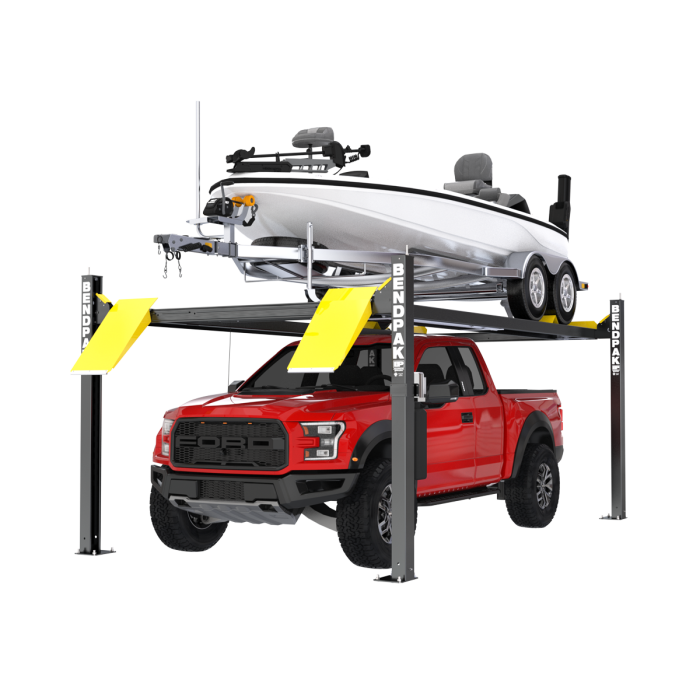

The HD-75BXT is the ultimate dry-docking solution for boats, featuring a 7,500-lb. lifting capacity. Its adjustable runways make it a versatile choice for both boat storage and professional-grade car lifting, ensuring your vehicle or vessel remains safe, secure, and protected.
HD-75BXT | 4-Post Hoist
Features
Dual-Purpose Functionality
Designed for boats and vehicles, this lift accommodates various boat trailer types and car models with adjustable runways.
Enhanced Safety Locks
Features spring-loaded locks with a secondary slack-cable system for extra security during operation.
Durable and Dependable Design
Crafted with heavy-duty stainless steel wire ropes, enclosed lifting components, and a single hydraulic cylinder for long-term reliability.
Effortless Operation
Equipped with an electric-hydraulic power system and push-button pneumatic safety release for easy and seamless control.
Materials & Tech
Comes with
Optional
| Capacity | Imperial | Metric |
|---|---|---|
| Lifting Capacity | 7,500 lbs | 3,402 kg |
| Max Capacity / Front Axle | 3,750 lbs | 1,701 kg |
| Max Capacity / Rear Axle | 3,750 lbs | 1,701 kg |
| Rise | Imperial | Metric | |
|---|---|---|---|
| A – Min. Runway Height | 5″ | 127 mm | |
| B – Max. Rise | 82″ | 2,083 mm | |
| C – Max. Lifting Height | 87″ | 2,210 mm | |
| Time to Full Rise | 50 seconds | ||
| Outside Dimensions | Imperial | Metric |
|---|---|---|
| D – Overall Width | 133.75″ | 3,397 mm |
| E – Outside Length | 222″ | 5,639 mm |
| F – Overall Length | 248.5″ | 6,312 mm |
| G – Height of Columns | 100″ | 2,540 mm |
| Inside Dimensions | Imperial | Metric |
|---|---|---|
| H – Width Between Columns | 122″ | 3,099 mm |
| I – Drive-Thru Clearance | 108.5″ | 2,756 mm |
| Runways | Imperial | Metric |
|---|---|---|
| J – Runway Width | 19″ | 483 mm |
| K – Length of Runways | 206.25″ | 5,239 mm |
| L – Width Between Runways | 46.5″ or 66.5″ | 1,181 mm or 1,689 mm |
| M – Runway Centerline | 68.5″ or 88.5″ | 1,740 mm or 2,248 mm |
| N – Outside Edge of Runways | 87.5″ or 107.5″ | 2,223 mm or 2,730 mm |
| Minimum Wheelbase | Imperial | Metric |
|---|---|---|
| Rated Capacity | 150″ | 3,810 mm |
| 75% Capacity | 130″ | 3,302 mm |
| 50% Capacity | 110″ | 2,794 mm |
| 25% Capacity | 90″ | 2,286 mm |
| Locking | Imperial | Metric |
|---|---|---|
| Locking Positions | 17 | – |
| Lock Spacing | Every 4″ | 102 mm |
| Power Unit | ||
|---|---|---|
| Motor | 208-230 VAC, 60 Hz, 1 Ph | |
