HD-7PXW | 4-Post Hoist

SKU: 5175516

The HD-7PXW is a super-tall four-post hoist with a 3,175-kg. capacity, designed to display vehicles at over 3.65 m in height. This hoist is ideal for dealerships and showrooms, offering unmatched visibility and safety features.

3,175-kg. lifting capacity
Super-tall rise of 3.7 m
Display platform for dealerships and showrooms
One-touch pneumatic safety release
Heavy-duty aircraft cables for durability

Here to help

Features

With a towering 3.7 m hoisting height, the HD-7PXW is ideal for showcasing vehicles in showrooms or maximizing space in service garages.

Heavy-Duty Aircraft Cables
The hoist is equipped with 38 mm aircraft cables, rated for durability and safety, providing 822% of the lift’s overall capacity.

Multi-Position Safety Locks
30 lock positions spaced every 4 inches ensure secure hoisting at various heights, accommodating all vehicle types.

Integrated Electric-Hydraulic System
A maintenance-free, high-efficiency power unit with push-button pneumatic safety release ensures smooth and reliable operation.

Long and Non-Skid Ramps
Non-skid ramps accommodate vehicles with varying wheelbases while ensuring a safe and easy loading experience.

Adjustable Lock Ladders
Designed for versatility, the lock ladders allow customization for varying vehicle heights, perfect for display or storage.

Low-Sheen Black Finish
The sleek design complements showroom aesthetics while providing long-lasting durability against wear and tear.

Materials & Tech

The HD-7PXW features oversized self-lubricating cable rollers, rugged roller axles, and anti-sway slider blocks for smooth, reliable operation.

Full-length underside runway covers
Push-button pneumatic safety release
Multi-position locking system

Comes with

Single hydraulic cylinder mounted under the runway for minimal exposure
Full runway shields to protect components

Optional

Custom branding for dealership use (optional)

Specifications

Capacity	Imperial	Metric
Lifting Capacity	7,000 lbs	3,175 kg
Max Capacity / Front Axle	3,500 lbs	1,588 kg
Max Capacity / Rear Axle	3,500 lbs	1,588 kg

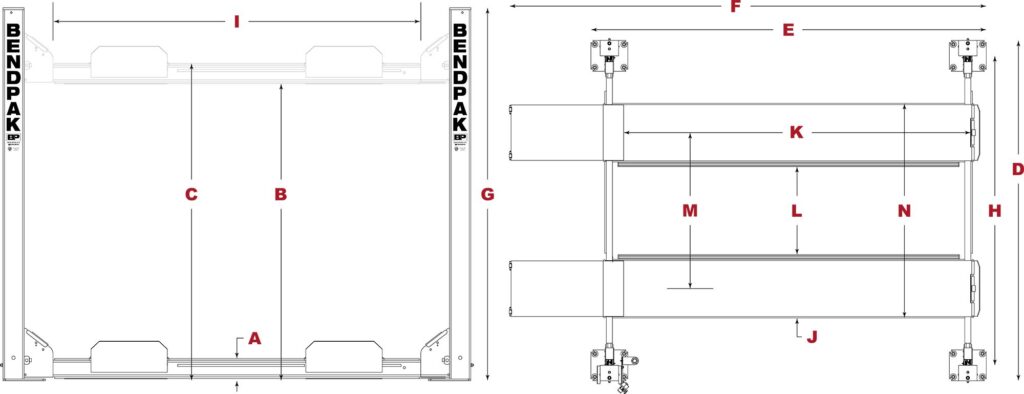

Rise	Imperial	Metric
A – Min. Runway Height	4.5″	114 mm
B – Max. Rise	140″	3,556 mm
C – Max. Lifting Height	145″	3,683 mm
Time to Full Rise	60 seconds

Outside Dimensions	Imperial	Metric
D – Overall Width	110.25″	2,800 mm
E – Outside Length	198″	5,029 mm
F – Overall Length	224.5″	5,702 mm
G – Height of Columns	158″	4,013 mm

Inside Dimensions	Imperial	Metric
H – Width Between Columns	100″	2,540 mm
I – Drive-Thru Clearance	86.5″	2,197 mm

Runways	Imperial	Metric
J – Runway Width	19″	483 mm
K – Length of Runways	188″	4,775 mm
L – Width Between Runways	37.5″ or 44.5″	953 mm or 1,130 mm
M – Runway Centerline	56.5″ or 63.5″	1,435 mm or 1,613 mm
N – Outside Edge of Runways	75.5″ or 82.5″	1,918 mm or 2,096 mm

Minimum Wheelbase	Imperial	Metric
Rated Capacity	135″	3,429 mm
75% Capacity	115″	2,921 mm
50% Capacity	95″	2,413 mm
25% Capacity	80″	2,032 mm

Locking	Imperial	Metric
Locking Positions	30	–
Lock Spacing	Every 4″	102 mm

Power Unit
Motor	208-230 VAC / 50-60 Hz / 1 Ph
Noise	45 dB
