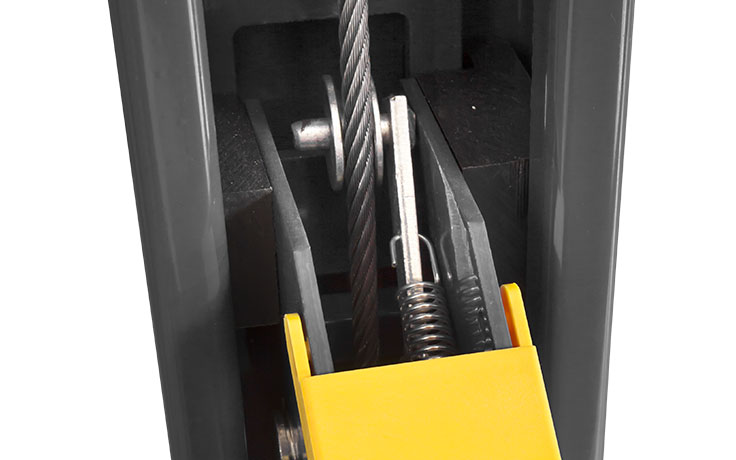

BendPak-4-Post-Lift-Slack-Safety-Cable-System

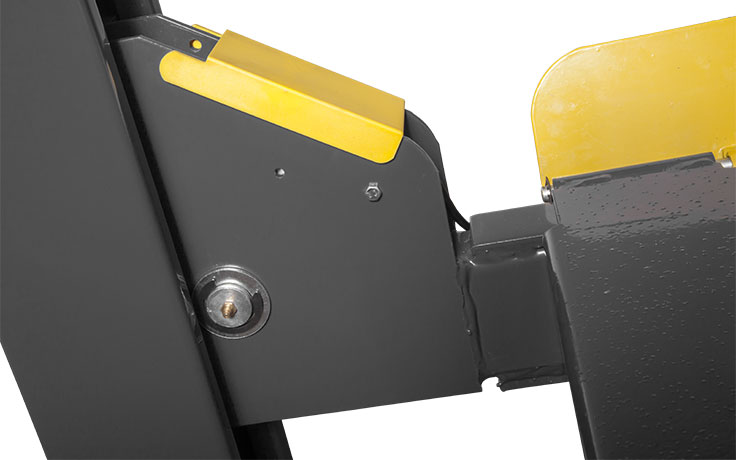

BendPak-Four-Post-Lift-Cross-Member-Carriage-Design

BendPak-4-Post-Lift-Large-Cable-Sheave-Design

Four-Post-Lift-Portable-Wheel-Kit-BendPak

HD-9 | 4-Post Hoist

SKU: 5175861

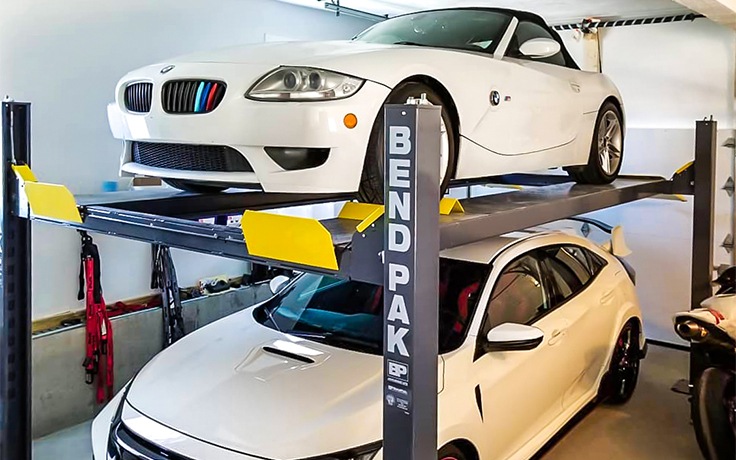

The HD-9 Series is a four-post parking lift with a 4,082-kg capacity, designed to fit into standard garage spaces. Ideal for light-duty trucks, SUVs, and sports cars, it offers superior safety, versatility, and efficiency for parking and storage.

4,082-kg lifting capacity
Compact design for versatile garage use
Aircraft-quality heavy-duty cables
Multi-level safety locks
Longer approach ramps for low-clearance vehicles

Here to help

HD-9 | 4-Post Hoist

Features

The HD-9 Series offers a 4,082-kg lift capacity, accommodating a wide range of vehicles, including light-duty trucks and SUVs.

Compact Design for Space Efficiency
Designed to fit within the dimensions of a standard parking space, the HD-9 Series is perfect for garages with limited space or lower ceilings.

Heavy-Duty Aircraft Cables
Crafted from high-quality stainless steel, the cables safely hold up to 6,532 kg, ensuring durability and reliability for long-term use.

Multi-Level Locking Positions
Equipped with automatic spring-loaded locks, the lift secures safely at multiple height levels, providing flexible parking and storage options.

Integrated Electric-Hydraulic System
The user-friendly electric-hydraulic power system ensures smooth operation with balanced rises and controlled descents at the push of a button.

Low-Deck Runways with Longer Ramps
Low-profile runways and extended-length approach ramps make it easy to load low-clearance vehicles without risking damage.

Customisable Options
Optional accessories, such as drive-thru ramps, drip trays, and solid decks, allow users to tailor the lift to their specific parking or storage needs.

Materials & Tech

The HD-9 Series features oversized self-lubricating cable rollers, rugged roller axles, and fully enclosed critical components for a safe, durable, and low-maintenance parking solution.

Push-button pneumatic safety release
Adjustable lock ladders
Built-in anti-sway slider blocks

Comes with

Single hydraulic cylinder mounted under the runway for efficient lifting
Integrated cable sheaves for reduced wear and tear

Optional

Air/hydraulic rolling jacks with a 2,041-kg capacity (Model RBJ4500)
Solid deck for increased storage options

Specifications

Style
Type	Four-Post Parking Lift

Capacity	Imperial	Metric
Lifting Capacity	9,000 lbs	4,082 kg

Rise	Imperial	Metric
A – Min. Runway Height	4.5″	114 mm
B – Max. Rise	70″	1,778 mm
C – Max. Lifting Height	74.5″	1,892 mm
Time to Full Rise	50 seconds

Outside Dimensions	Imperial	Metric
D – Overall Width	110.25″	2,800 mm
E – Outside Length	174″	4,420 mm
F – Overall Length	200″	5,080 mm
G – Height of Columns	88″	2,235 mm

Inside Dimensions	Imperial	Metric
H – Width Between Columns	100.25″	2,555 mm
I – Drive-Thru Clearance	86.5″	2,197 mm

Runways	Imperial	Metric
J – Runway Width	19″	483 mm
K – Length of Runways	164″	4,166 mm
L – Width Between Runways	37.5″ or 44.375″	952 mm or 1,127 mm
M – Runway Centerline	56.5″ or 63.375″	1,435 mm or 1,610 mm
N – Outside Edge of Runways	75.5″ or 82.375″	1,918 mm or 2,092 mm

Locking	Imperial	Metric
Locking Positions	12	–
Lock Spacing	Every 4″	102 mm

Power Unit
Motor	220 VAC / 60 Hz / 1 Ph
