HD-973P

SKU: 5175238

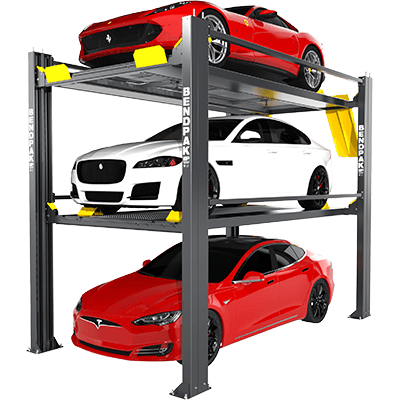

The BendPak HD-973P is a revolutionary tri-level four-post parking hoist, designed to store three vehicles in a single parking space. With a 4,082 kg (9,000 lbs) lower deck capacity and a 3,175 kg (7,000 lbs) upper deck capacity, this space-saving solution maximizes parking efficiency for residential garages, dealerships, commercial parking structures, and auto workshops. Its independent lifting platforms provide flexible height adjustments, making it the most versatile and compact triple-stacker on the market.

  • Tri-level parking for three vehicles in one space
  • Independent platforms for varied height adjustments
  • 4,082 kg (9,000 lbs) lower deck & 3,175 kg (7,000 lbs) upper deck capacity
  • Compact, patent-pending design for lower ceiling applications
  • Heavy-duty steel construction with integrated safety locks

Features

The HD-973P is engineered to maximize vertical storage without requiring excessive ceiling height, making it ideal for both residential and commercial use.

Independent Lifting Platforms for Maximum Flexibility
Unlike traditional car stackers, the HD-973P features independently controlled platforms, allowing individual vehicle access without lowering all levels.

Compact, Patent-Pending Design for Low Ceilings
BendPak’s specially engineered structure eliminates unnecessary height, making it more adaptable to garages and commercial spaces with limited overhead clearance.

Heavy-Duty Hydraulic Lifting System
Each platform is powered by reliable hydraulic cylinders and high-strength hoisting cables, ensuring smooth, stable, and safe lifting.

Multi-Level Safety Locks & Anti-Fall Protection
The HD-973P includes spring-loaded safety locks spaced every 4 inches, along with redundant anti-fall devices for unmatched security.

Weight-Displacing Base for Versatile Installation
Designed for residential and commercial concrete flooring, this hoist can even be installed on asphalt when equipped with concrete footers.

Materials & Tech

Built with industrial-grade welded steel, the HD-973P provides unmatched durability, stability, and longevity. Each platform includes hydraulic flow restrictors, ensuring controlled descent in case of hose failure.
  • HD-973P Tri-Level Parking Hoist
  • Hydraulic Power System
  • Multi-Position Safety Lock System
  • Independent Platform Control System

Optional

  • Drive-Thru Ramps for Easy Access
  • Air-Hydraulic Rolling Jacks (4,500 lbs capacity)

Specifications

Top Platform Specifications

Capacity & Dimensions Imperial Metric
Lifting Capacity 7,000 lbs 3,175 kg
Max. Front Axle Capacity 3,500 lbs 1,588 kg
Max. Rear Axle Capacity 3,500 lbs 1,588 kg
Drive-Thru Clearance 86.5″ 2,201 mm
Max. Rise 139″ 3,531 mm
Max. Lifting Height 145″ 3,683 mm
Lifting Time to Max. Rise 90 sec
Physical Dimensions Imperial Metric
Overall Width 112″ 2,833 mm
Overall Length 242″ 6,141 mm
Column Height 161″ 4,093 mm
Locking Imperial Metric
Locking Spacing Every 4″ Every 102 mm
Locking Positions 31
Power Requirements
Motor 220V AC, 60 Hz, 1 Ph

Bottom Platform Specifications

Capacity & Dimensions Imperial Metric
Lifting Capacity 9,000 lbs 4,082 kg
Max. Front Axle Capacity 4,500 lbs 2,041 kg
Max. Rear Axle Capacity 4,500 lbs 2,041 kg
Drive-Thru Clearance 86.5″ 2,201 mm
Max. Rise 69.5″ 1,765 mm
Max. Lifting Height 74.5″ 1,892 mm
Lifting Time to Max. Rise 50 sec
Physical Dimensions Imperial Metric
Overall Width 112″ 2,833 mm
Overall Length 200″ 5,080 mm
Column Height 161″ 4,093 mm
Locking Imperial Metric
Locking Spacing Every 4″ Every 102 mm
Locking Positions 13
Power Requirements
Motor 220V AC, 60 Hz, 1 Ph
Brand Spotlight

BendPak

For decades, BendPak has set the gold standard in hoisting technology, trusted by automotive repair workshops, motor dealerships, and heavy vehicle operators alike.

Renowned for its unmatched quality and durability, BendPak delivers solutions built to withstand the demands of high-volume operations. With our exclusive partnership, Genesis Equipment ensures that your business benefits from the latest innovations and superior performance. When you choose BendPak through Genesis, you’re choosing a brand that professionals trust worldwide to maximize safety, efficiency, and value.

Other BendPak Products

Nussbaum

Top Lift 2.35 TLD XY

— Vehicle Lifts

Nussbaum

Power Lift HF 3S 3500 DT

— Vehicle Lifts

Nussbaum

Smart Lift 2.40 SL Uni

— Vehicle Lifts

Product Uses

What some of our customers have used it for:

357434510_691079939701100_5253503691519644574_n

Premier Autotune Workshop

Genesis was transparent with me, and answered all my questions, they weren't trying to sell me anything or push hoists onto me. They could see my plans and what I needed for the future for all the types of cars I service. And they provided me with solutions for what is going to work for my workshop and the future. I’m confident with Genesis Equipment and the BendPak hoists they’ve supplied me.

Allen, Owner

Perfect for:

  • Residential garages & car storage solutions
  • High-density commercial parking facilities
  • Auto dealerships & vehicle showrooms
  • Fleet & rental car storage
