HD-9STX | 4-Post Hoist

SKU: 5175862

The HD-9STX is a high-rise, narrow-width four-post lift with a 9,000-lb. capacity, perfect for garages with high ceilings and limited floor space. Designed for professional and home use, it offers efficient parking, storage, and maintenance solutions.

9,000-lb. lifting capacity
Compact narrow-width design
Extended lifting height for SUVs and trucks
Integrated electric-hydraulic power system
Multi-position safety locks

Here to help

Features

The HD-9STX combines a slim footprint with an extended lifting height, making it ideal for garages with high ceilings and limited floor space.

Heavy-Duty Aircraft Cables
Features durable 9.5 mm aircraft-quality cables capable of supporting loads far exceeding the lift’s rated capacity.

Multi-Level Safety Locks
Spring-loaded safety locks engage automatically at multiple positions, ensuring secure operation at any height.

Extended Runways
The long runways accommodate both narrow and standard vehicles, with optional drive-thru ramps for added convenience.

Integrated Hydraulic System
The electric-hydraulic system ensures smooth, reliable lifts and descents, controlled by a user-friendly push-button interface.

Optional Accessories
Enhance functionality with optional drip trays, solid decks for additional storage, and air/hydraulic rolling jacks (Model RJ-45).

Low-Profile Runways with Longer Ramps
Easily handle low-clearance vehicles with low-profile runways and extended-length ramps that prevent undercarriage damage.

Materials & Tech

Built with heavy-duty materials, including oversized self-lubricating cable rollers and rugged 1.25” roller axles, ensuring durability and minimal maintenance.

Fully enclosed lifting cables and safety locks
Push-button pneumatic safety release
Adjustable lock ladders

Comes with

Hydraulic cylinder mounted beneath the runway
Removable approach ramps

Optional

Drive-thru ramps for better accessibility
Drip trays and solid decks for enhanced storage

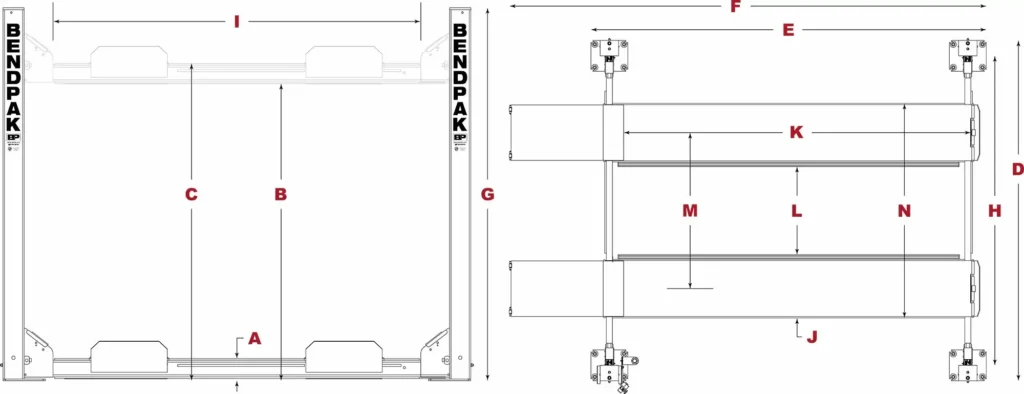

Specifications

Capacity	Imperial	Metric
Lifting Capacity	9,000 lbs	4,082 kg

Rise	Imperial	Metric
Minimum Runway Height	5″	127 mm
Maximum Rise	82″	2,083 mm
Maximum Lifting Height	86.5″	2,197 mm
Time to Full Rise	50 seconds

Dimensions	Imperial	Metric
Width Overall	100.25″	2,546 mm
Outside Length	198″	5,029 mm
Overall Length	224″	5,690 mm
Height of Columns	100″	2,540 mm
Width Between Columns	89.75″	2,280 mm
Drive-Thru Clearance	76.5″	1,943 mm

Runways	Imperial	Metric
Runway Width	19″	483 mm
Length of Runways	188″	4,775 mm
Width Between Runways	37.5″	953 mm
Runway Centerline	56.5″	1,435 mm
Outside Edge of Runways	75.5″	1,918 mm

Minimum Wheelbase	Imperial	Metric
Rated Capacity	135″	3,429 mm
75% Capacity	115″	2,921 mm
50% Capacity	95″	2,413 mm
25% Capacity	80″	2,032 mm

Locking	Imperial	Metric
Locking Positions	15	–
Lock Spacing	Every 4″	102 mm

Shipping
Dimensions	190″ x 22″ x 41″

Noise
Noise	45 dB
