HD-9SW | 4-Post Hoist

SKU: 5175023

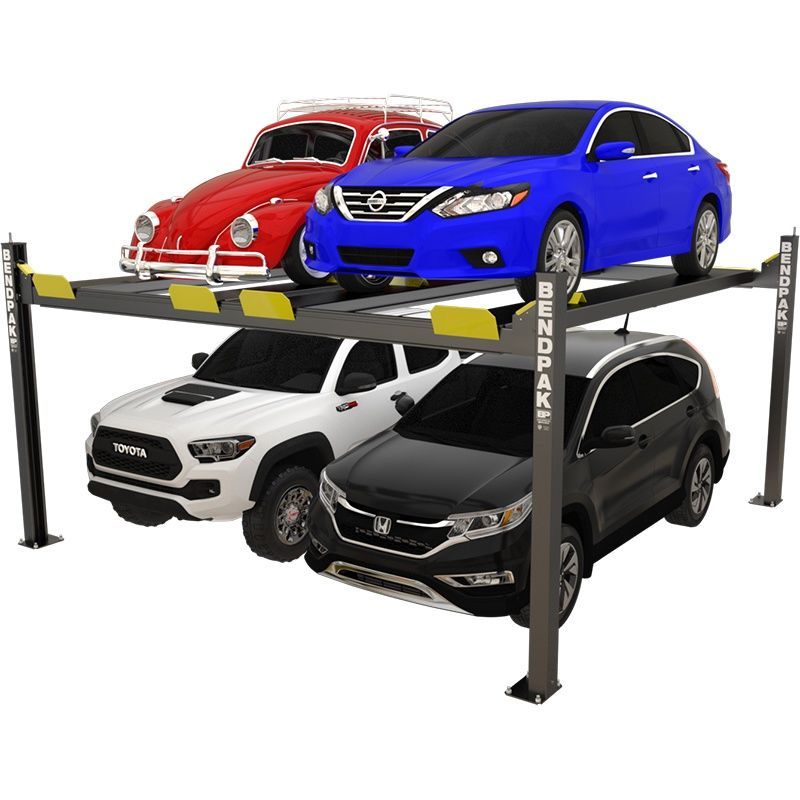

The BendPak HD-9SW is a 9,000-lb. capacity, super-wide four-post parking lift designed to double your parking or service wider vehicles with ease. Ideal for both home garages and professional workshops, it offers robust features and superior versatility.

9,000-lb. lifting capacity
Super-wide design for dual platform parking
Integrated electric-hydraulic power system
Multi-position safety locks with automatic engagement
Heavy-duty aircraft cable for enhanced durability

Here to help

Features

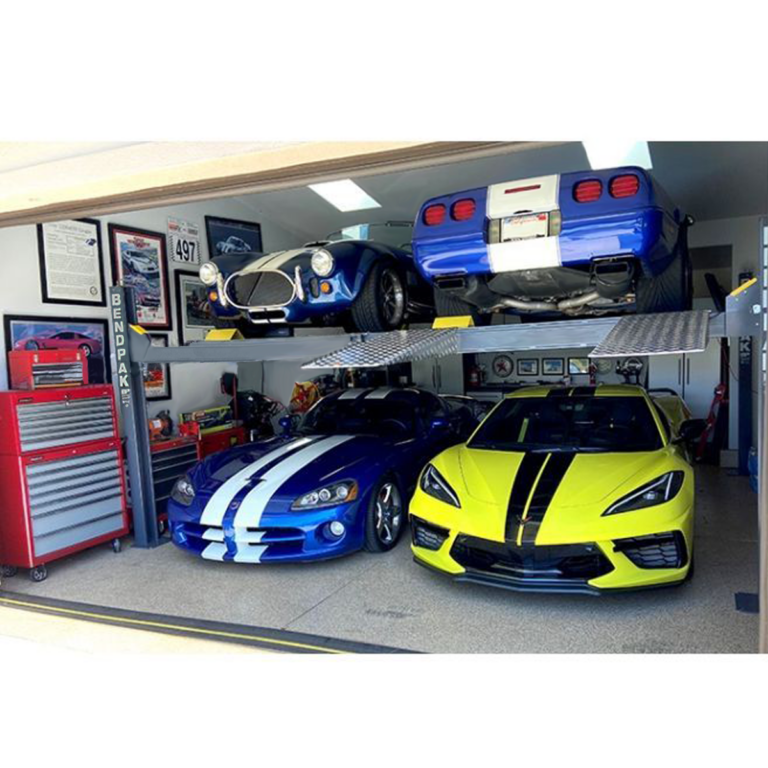

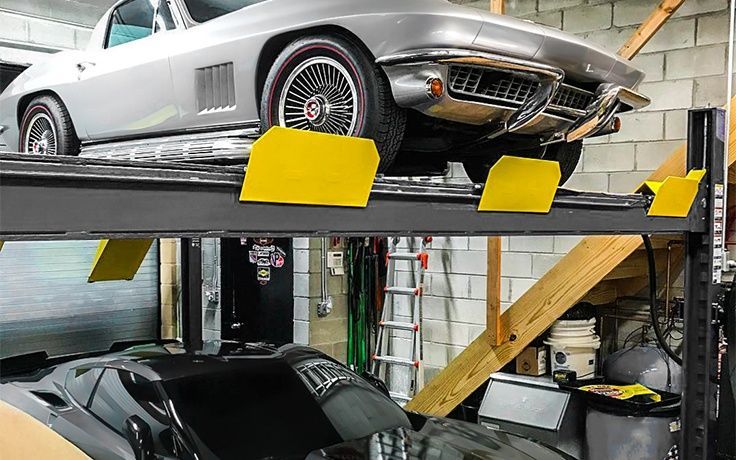

The HD-9SW features a super-wide design that accommodates up to four vehicles, making it perfect for maximizing space and performing maintenance on multiple vehicles.

Heavy-Duty Aircraft Cables
Durable 3/8″ aircraft-quality cables with a tensile strength of 14,400 lbs., ensuring superior safety and longevity.

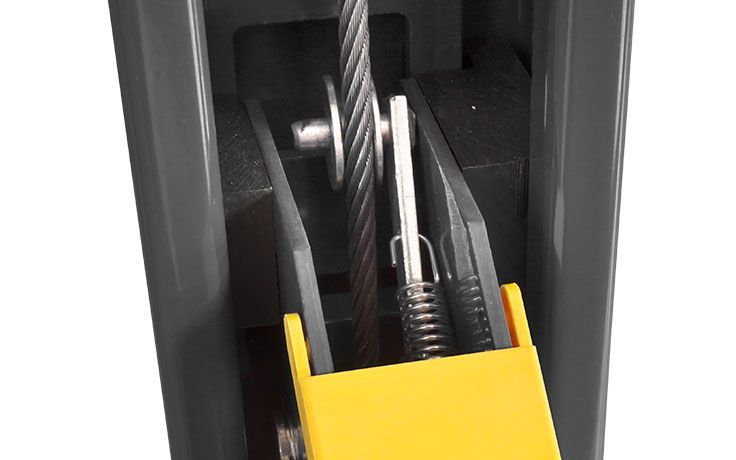

Multi-Level Safety Locks
Automatic spring-loaded locks engage at multiple levels, providing secure operation and peace of mind during use.

Integrated Hydraulic Power System
The electric-hydraulic power unit ensures smooth lifting and lowering, with synchronized lock engagement and release.

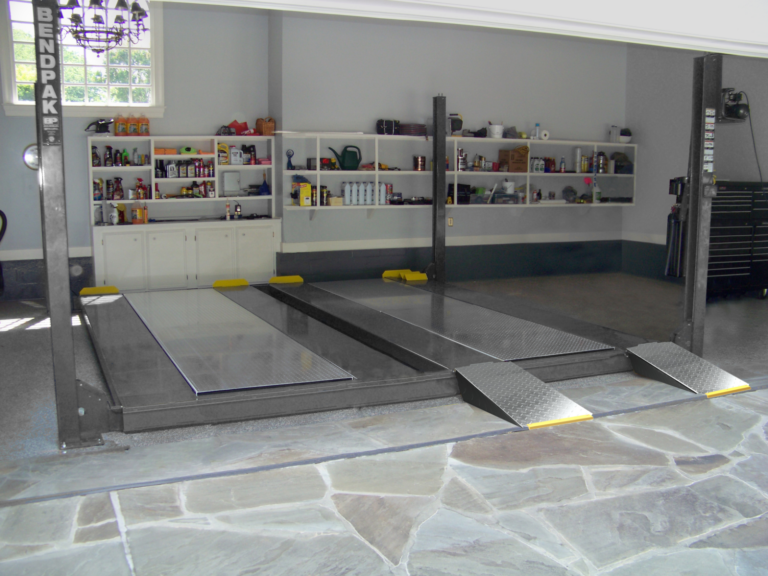

Low-Profile Runways with Longer Ramps
The low-rise runways (4.5″) and extended approach ramps allow easy access for low-clearance vehicles, enhancing safety and ease of use.

Dual-Hub Cable Sheaves
Reduces cable friction, prolonging the lifespan of the lift and ensuring consistent performance even with heavy loads.

Optional Accessories
Includes customisable add-ons such as drip trays, solid decks for additional storage, and 4,500-lb. air/hydraulic rolling jacks.

Materials & Tech

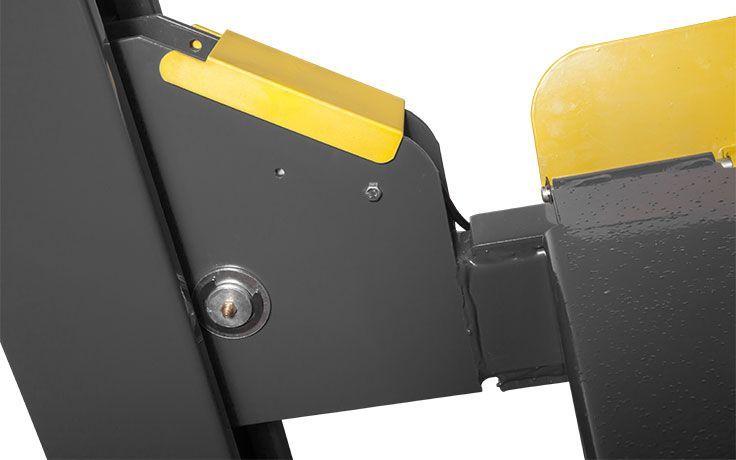

The HD-9SW is constructed with heavy-duty components, including oversized self-lubricating cable rollers and rugged 1.25″ roller axles, ensuring long-lasting durability.

One kit (pair) of aluminum ramps
Fully enclosed lifting cables, locks, and sheaves
Adjustable lock ladders

Comes with

Push-button pneumatic safety release
Removable approach ramps

Optional

Drive-thru ramps for enhanced accessibility

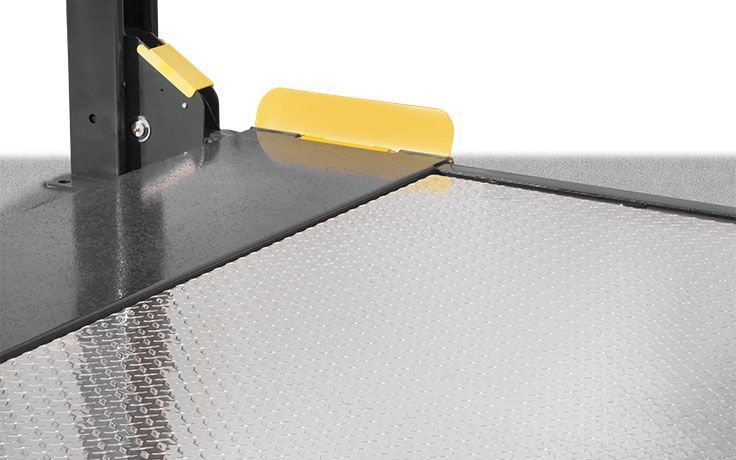

Drip trays and solid decks for increased storage

Specifications

Rise	Imperial	Metric
A – Min. Runway Height	7″	178 mm
B – Max. Rise	70″	1,778 mm
C – Max. Lifting Height	77″	1,956 mm
Time to Full Rise	55 seconds

Dimensions	Imperial	Metric
D – Overall Width	202″	5,131 mm
E – Outside Length	174″	4,420 mm
F – Overall Length	218.5″	5,550 mm
G – Height of Columns	90″	2,284 mm
H – Width Between Columns	192″	4,877 mm
I – Drive-Thru Clearance	178″	4,521 mm

Runways	Imperial	Metric
J – Runway Width	19″	483 mm
K – Length of Runways	164″	4,166 mm
L – Width Between Runways	34.25″ – 41″	870 mm – 1,041 mm
M – Runway Centerline	56.25″ – 62.75″	1,429 mm – 1,594 mm
N – Outside Edge of Runways	75.25″ – 81.75″	1,911 mm – 2,076 mm

Locking	Imperial	Metric
Locking Positions	14	–
Lock Spacing	Every 4″	102 mm

Power Unit
Motor	220 VAC / 60 Hz / 1 Ph

Shipping	Imperial	Metric
Weight	2,796 lbs	1,268 kg
Dimensions	200″ x 22″ x 52″	5,080 mm x 559 mm x 1,333 mm
