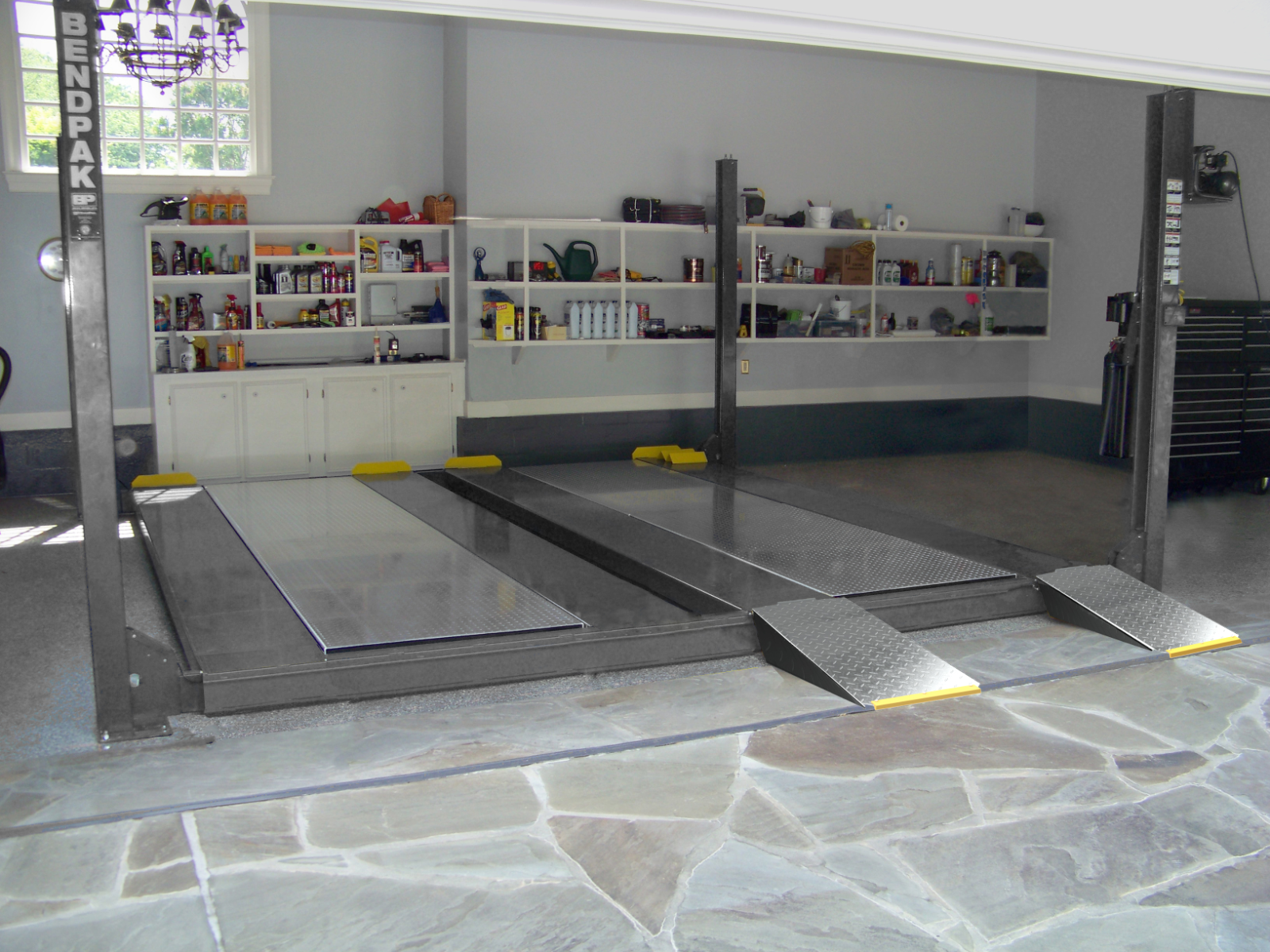

bendpak_hd-9sw_5175023_4-post-lift_garage_lowered_01

BendPak-4-Post-Lift-Large-Cable-Sheave-Design_5

bendpak-4-post-lift-slack-safety-cable-system_giwz6ipbctiywndi

bendpak-4-post-parking-lift-aluminum-solid-deck_sbsnmuvcp0x5agux

double-wide-bendpak-4-post-lift_ztvdk4edvra1ndqj

bendpak_hd-9sw_5175023_4-post-lift_garage_in-use_01

HD-9SWX | 4-Post Hoist

SKU: 5175024

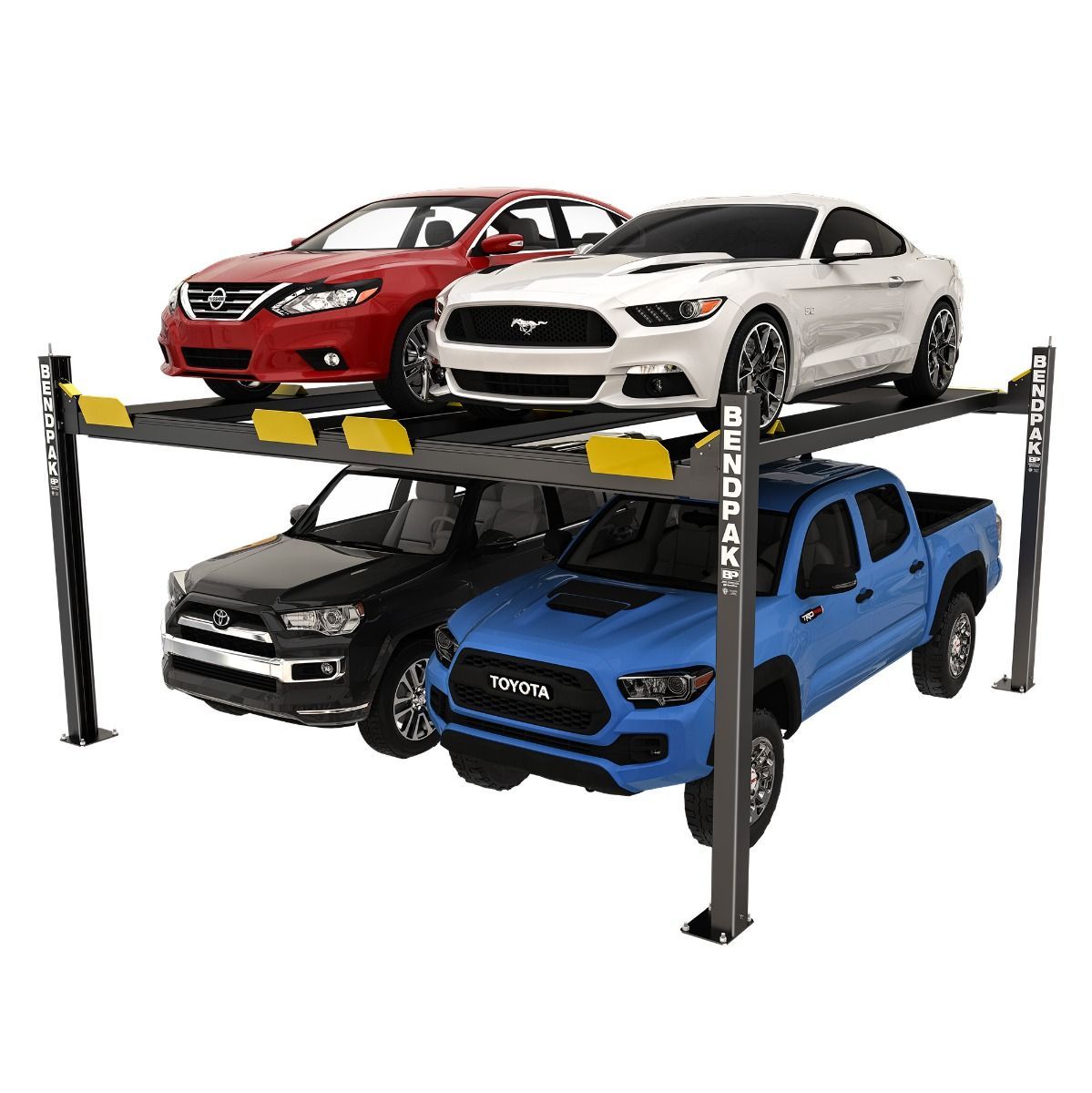

The HD-9SWX is a super-wide, extended-length four-post hoist with a 4,082-kg. capacity. Ideal for parking up to four vehicles or servicing two simultaneously, this hoist is perfect for maximizing space in family garages or professional workshops.

4,082-kg. lifting capacity
Extended-length runways for long-wheelbase vehicles
Double-wide configuration for quad-vehicle storage
Super-tall rise for additional clearance
Fully enclosed lifting cables and safety components

Here to help

Features

Super-Wide and Extended-Length Design. Perfect for parking four vehicles or servicing long-wheelbase cars and trucks.

Heavy-Duty Aircraft Cables
Robust 9.5 mm aircraft-quality cables ensure superior safety, with a tensile strength that far exceeds the hoist’s lifting capacity.

Adjustable Multi-Position Safety Locks
The hoist’s columns include adjustable lock ladders and automatic spring-activated locks for secure parking and maintenance.

Integrated Electric-Hydraulic Power System
Ensures smooth lifting and lowering with synchronized lock engagement and release, providing effortless operation.

Low-Profile Runways and Longer Ramps
The runways feature a low-profile rise (7″) and extended ramps for easy loading of low-clearance vehicles.

Optional Accessories
Includes customizable options like drip trays, solid aluminum decks for increased storage, and 2,041-kg. rolling jacks for additional versatility.

Materials & Tech

The HD-9SWX features internal anti-sway slider blocks, oversized self-lubricating cable rollers, and rugged 32 mm roller axles, ensuring long-lasting performance.

Fully enclosed lifting cables and sheaves
Push-button pneumatic safety release
Aluminum ramps (standard pair included)

Comes with

High-speed lifting system
Adjustable lock ladders for varied vehicle sizes

Optional

Drive-thru ramps for enhanced accessibility
Drip trays for added cleanliness
Solid decks to maximize storage capacity

Specifications

Capacity	Imperial	Metric
Lifting Capacity	9,000 lbs	4,082 kg
Max Capacity / Front Axle	4,500 lbs	2,041 kg
Max Capacity / Rear Axle	4,500 lbs	2,041 kg

Rise	Imperial	Metric
A – Min. Runway Height	7″	178 mm
B – Max. Rise	82″	2,083 mm
C – Max. Lifting Height	89″	2,261 mm
Time to Full Rise	65 seconds

Outside Dimensions	Imperial	Metric
D – Overall Width	202″	5,131 mm
E – Outside Length	198″	5,029 mm
F – Overall Length	224″	5,690 mm
G – Height of Columns	102″	2,591 mm

Inside Dimensions	Imperial	Metric
H – Width Between Columns	192″	4,877 mm
I – Drive-Thru Clearance	178″	4,521 mm

Runways	Imperial	Metric
J – Runway Width	19″	483 mm
K – Length of Runways	188″	4,775 mm
L – Width Between Runways	37″ or 42″	940 mm or 1,067 mm
M – Runway Centerline	56″ or 61″	1,422 mm or 1,549 mm
N – Outside Edge of Runways	75″ or 80″	1,905 mm or 2,032 mm

Minimum Wheelbase	Imperial	Metric
Rated Capacity	135″	3,429 mm
75% Capacity	115″	2,921 mm
50% Capacity	95″	2,413 mm
25% Capacity	80″	2,032 mm

Locking	Imperial	Metric
Locking Positions	16	–
Lock Spacing	Every 4″	102 mm

Power Unit
Motor	220 VAC / 60 Hz / 1 Ph
Noise	45 dB

Shipping
Weight	3,892 lbs	1,769 kg
Dimensions	216″ x 24″ x 48″	5,486 mm x 610 mm x 1,219 mm
