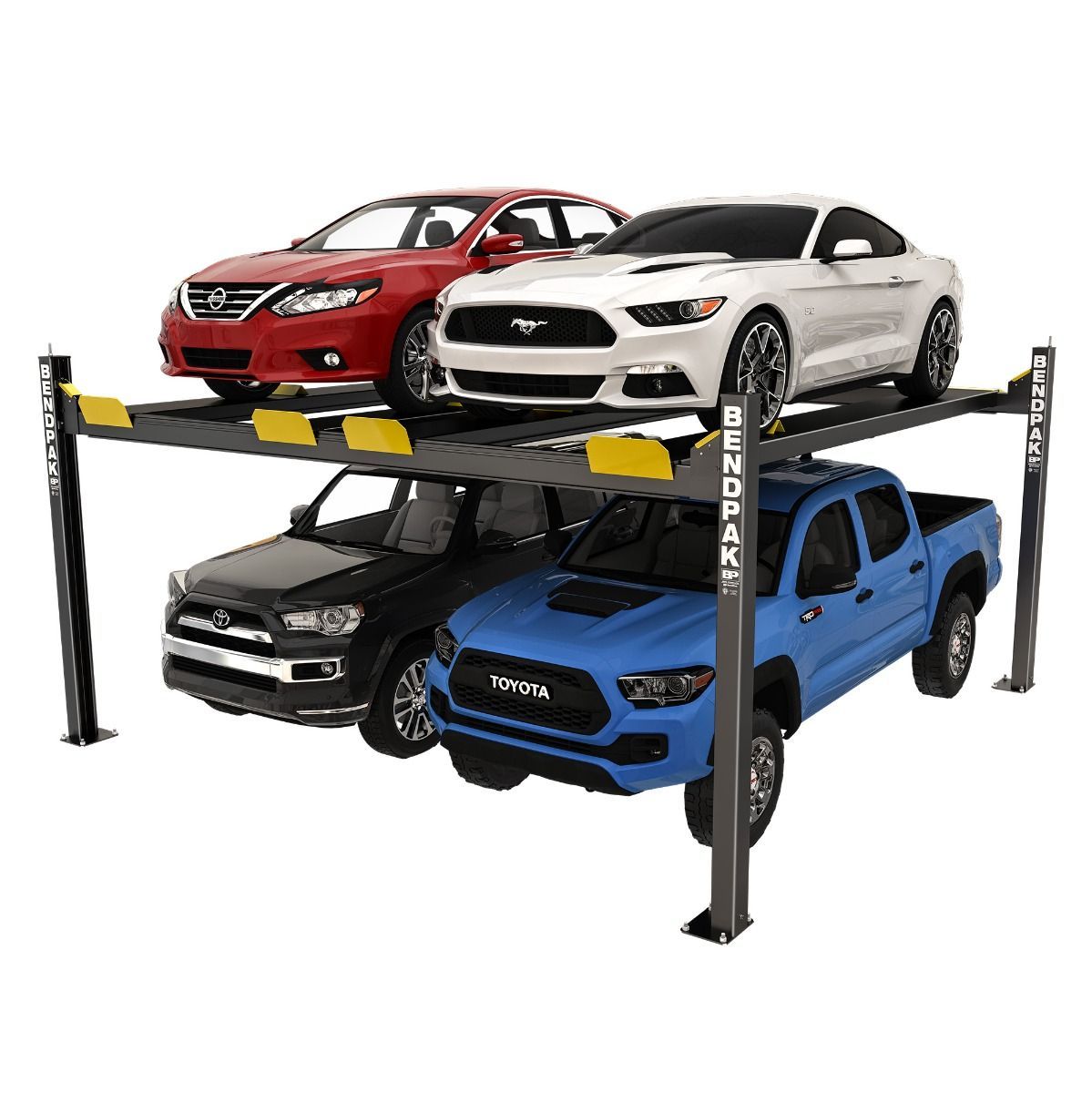

bendpak-hd-9swx-4-post-lift-dual-platform-super-wide-9000-lb-cap-5175024-main

bendpak_hd-9sw_5175023_4-post-lift_garage_lowered_01

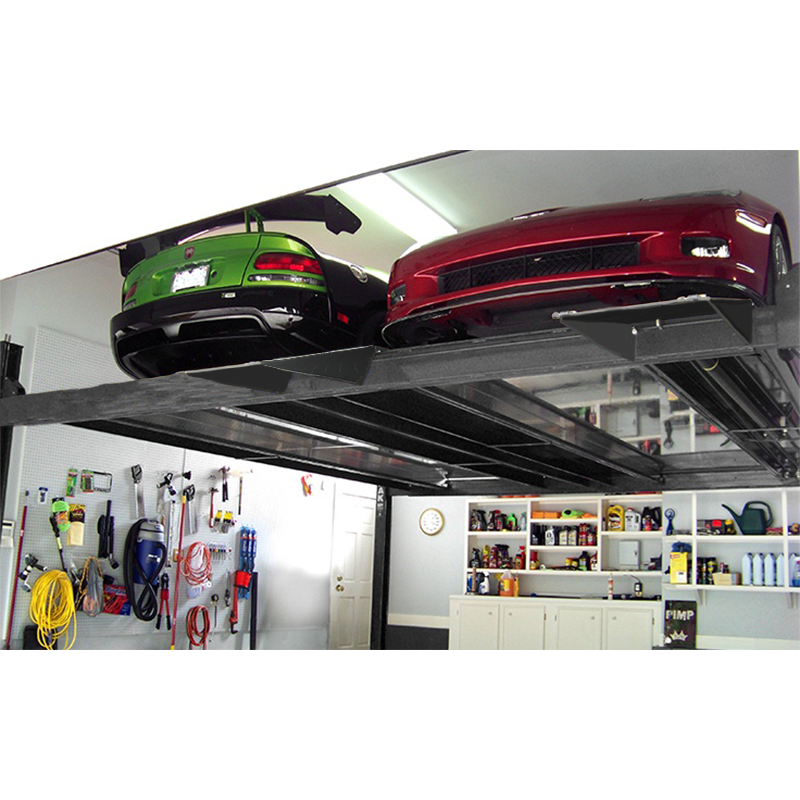

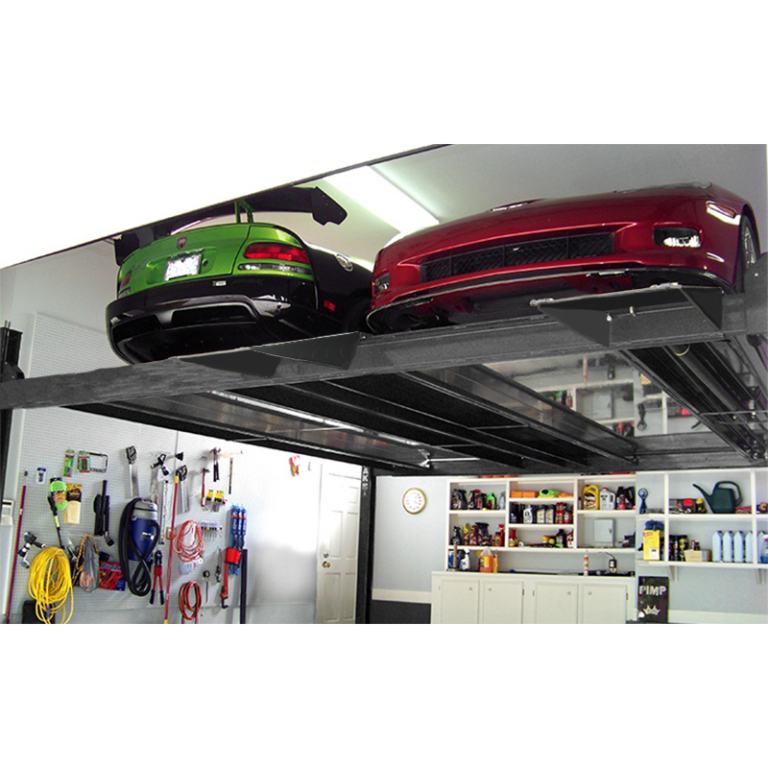

bendpak_hd-9sw_5175023_4-post-lift_garage_raised_01

BendPak-4-Post-Lift-Large-Cable-Sheave-Design_5

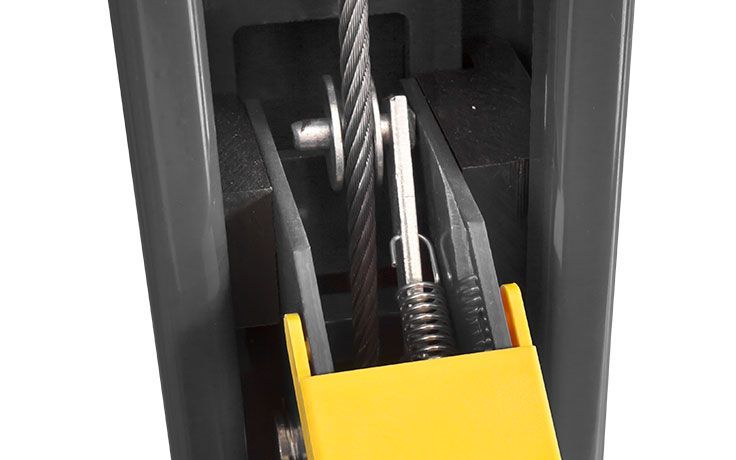

bendpak-4-post-lift-slack-safety-cable-system_giwz6ipbctiywndi

bendpak-4-post-parking-lift-aluminum-solid-deck_sbsnmuvcp0x5agux

double-wide-bendpak-4-post-lift_ztvdk4edvra1ndqj

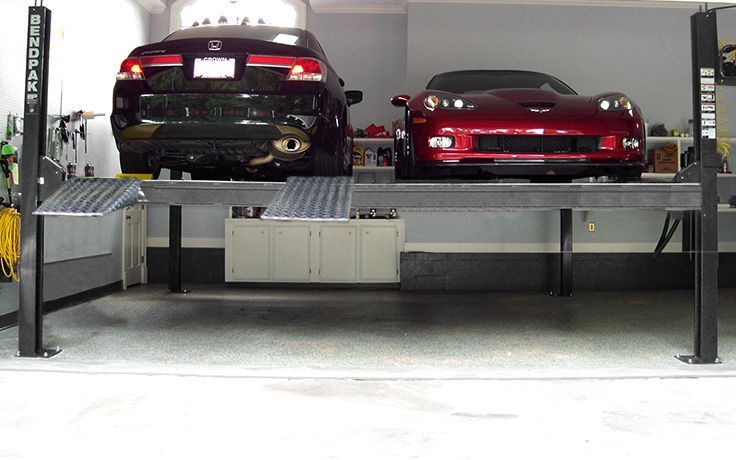

bendpak_hd-9sw_5175023_4-post-lift_garage_in-use_01

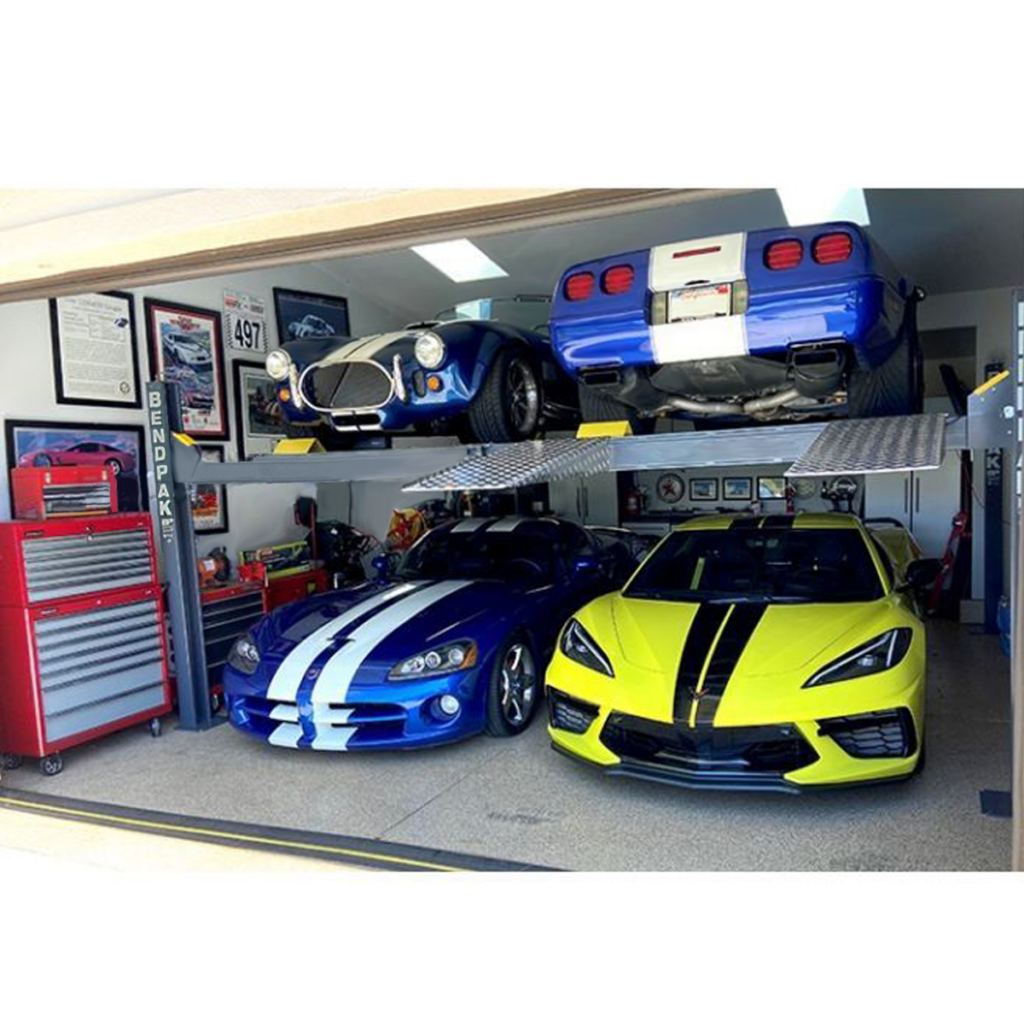

bendpak_hd-9sw_5175023_4-post-lift_garage_in-use_02

HD-9XL | 4-Post Hoist

SKU: 5175859

The HD-9XL is a 9,000-lb. capacity four-post lift featuring extended-length runways for long-wheelbase vehicles. Ideal for classic car collectors, large garages, and professional workshops, it offers durability, safety, and versatility for parking and maintenance.

9,000-lb. lifting capacity
Extended-length runways for longer vehicles
Multi-position safety locks
Heavy-duty aircraft cables
ntegrated electric-hydraulic power system

Here to help

Features

Accommodates longer vehicles, including vintage Chevys and extended trucks, without sacrificing safety or stability.

Heavy-Duty Aircraft Cables
Aircraft-quality cables with a tensile strength of 14,000 lbs. ensure long-lasting reliability and safety.

Adjustable Multi-Position Safety Locks
Locks automatically engage at multiple heights for secure parking and maintenance.

Electric-Hydraulic Power System
A fully integrated, maintenance-free power unit ensures smooth, safe operation at all times.

Low-Deck Runways with Longer Ramps
Low-profile runways and extended approach ramps make it easier and safer to load low-clearance vehicles.

Optional Accessories
Enhance functionality with caster kits, drip trays, jack platforms, and drive-thru ramps for added versatility.

Materials & Tech

The HD-9XL features oversized self-lubricating cable rollers, rugged 1.25″ roller axles, and anti-sway slider blocks for optimal performance and durability.

Push-button pneumatic safety release
Single hydraulic cylinder under the runway
Non-skid runway surface for added safety

Comes with

Standard 9,000-lb. lifting capacity
Adjustable lock ladders for versatile height options

Optional

4,500-lb. air/hydraulic rolling jack
Additional ramps and solid deck options

Specifications

Capacity	Imperial	Metric
Lifting Capacity	9,000 lbs	4,082 kg
Max Capacity / Front Axle	4,500 lbs	2,041 kg
Max Capacity / Rear Axle	4,500 lbs	2,041 kg

Rise	Imperial	Metric
A – Min. Runway Height	5″	127 mm
B – Max. Rise	70″	1,778 mm
C – Max. Lifting Height	75″	1,905 mm
Time to Full Rise	50 seconds

Outside Dimensions	Imperial	Metric
D – Overall Width	110.25″	2,800 mm
E – Outside Length	198″	5,029 mm
F – Overall Length	224.5″	5,702 mm
G – Height of Columns	88″	2,235 mm

Inside Dimensions	Imperial	Metric
H – Width Between Columns	100.25″	2,546 mm
I – Drive-Thru Clearance	86.5″	2,197 mm

Runways	Imperial	Metric
J – Runway Width	19″	483 mm
K – Length of Runways	182.25″	4,629 mm
L – Width Between Runways	35″ or 41″	889 mm or 1,041 mm
M – Runway Centerline	56.75″ or 63″	1,441 mm or 1,600 mm
N – Outside Edge of Runways	75.75″ or 82″	1,924 mm or 2,083 mm

Minimum Wheelbase	Imperial	Metric
Rated Capacity	135″	3,429 mm
75% Capacity	115″	2,921 mm
50% Capacity	95″	2,413 mm
25% Capacity	80″	2,032 mm

Locking	Imperial	Metric
Locking Positions	14	–
Lock Spacing	Every 4″	102 mm

Power Unit
Motor	220 VAC / 60 Hz / 1 Ph
Noise	45 dB

Shipping
Weight	1,696 lbs	769 kg
Dimensions	192″ x 22″ x 28″	4,877 mm x 558 mm x 711 mm
