SKU: 5175170

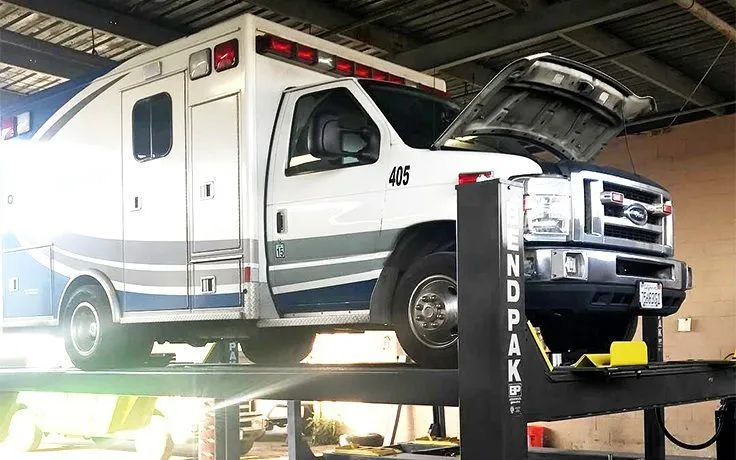

The BendPak HDS-14 is a 6,350-kg capacity four-post hoist built to meet the demands of heavy-duty vehicle lifting. Designed for professional-grade applications, it features extended runways, heavy-duty aircraft cables, and integrated safety systems, making it ideal for oversized vehicles.
4 Post Van Hoist HDS-14
Features

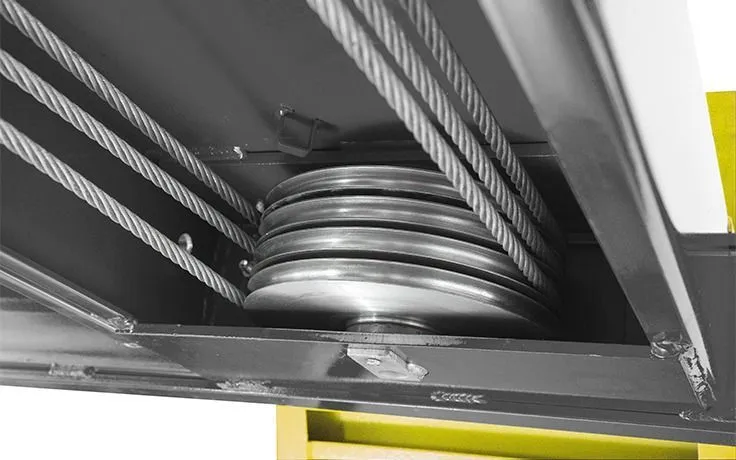

Dual-Hub Cable Sheaves
Large-diameter sheaves minimize cable wear and extend the lifespan of critical components, ensuring long-term reliability.
Built-In Lubrication System
Grease fittings on all sheaves and axles simplify maintenance and ensure smooth operation.
Pneumatic Push-Button Lock Release
The easy-to-use pneumatic system provides quick and safe lowering with minimal effort.
Optional Rolling Bridge Jacks
Enhance your hoist with 3,175-kg capacity rolling jacks for efficient wheel and brake servicing.

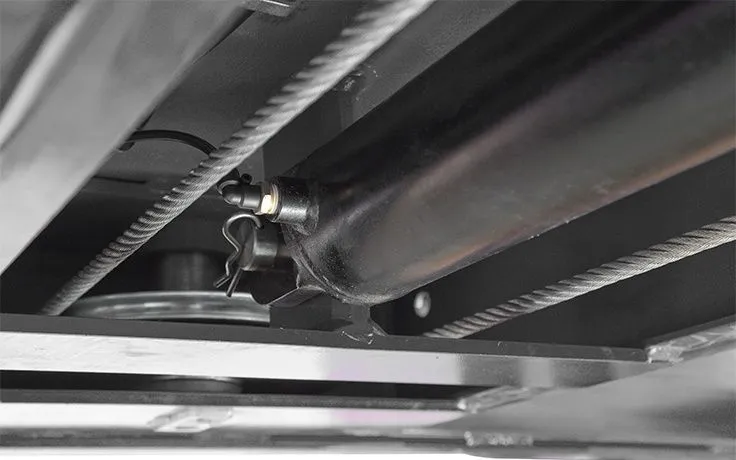

Electric-Hydraulic Power System
The low-maintenance power system guarantees consistent performance and reliability in busy service environments.
Adjustable Safety Locks
Multiple height locking positions allow for variable-height parking and service, even on uneven surfaces.
Materials & Tech
Comes with
Optional
| Capacity | Imperial | Metric |
|---|---|---|
| Lifting Capacity | 14,000 lbs | 6,350 kg |
| Max Capacity / Front Axle | 7,000 lbs | 3,175 kg |
| Max Capacity / Rear Axle | 7,000 lbs | 3,175 kg |

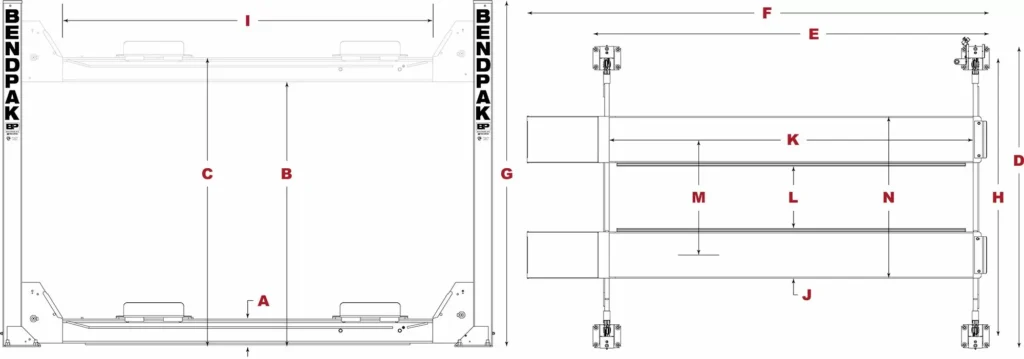

| Rise | Imperial | Metric |
|---|---|---|
| A – Min. Runway Height | 7.5″ | 191 mm |
| B – Max. Rise | 70″ | 1,778 mm |
| C – Max. Lifting Height | 77.5″ | 1,969 mm |
| Time to Full Rise | 60 seconds | |
| Outside Dimensions | Imperial | Metric |
|---|---|---|
| D – Overall Width | 130″ | 3,302 mm |
| E – Outside Length | 213″ | 5,410 mm |
| F – Overall Length | 242″ | 6,147 mm |
| G – Height of Columns | 92″ | 2,337 mm |
| Inside Dimensions | Imperial | Metric |
|---|---|---|
| H – Width Between Columns | 120″ | 3,048 mm |
| I – Drive-Thru Clearance | 98″ | 2,489 mm |
| Runways | Imperial | Metric |
|---|---|---|
| J – Runway Width | 20″ | 508 mm |
| K – Length of Runways | 197.5″ | 5,017 mm |
| L – Width Between Runways | 34.5″ or 41.5″ | 876 mm or 1,054 mm |
| M – Runway Centerline | 57.5″ or 64.5″ | 1,461 mm or 1,638 mm |
| N – Outside Edge of Runways | 77.5″ or 84.5″ | 1,969 mm or 2,146 mm |
| Minimum Wheelbase | Imperial | Metric |
|---|---|---|
| Rated Capacity | 140″ | 3,556 mm |
| 75% Capacity | 120″ | 3,048 mm |
| 50% Capacity | 100″ | 2,540 mm |
| 25% Capacity | 80″ | 2,032 mm |
| Locking | ||
|---|---|---|
| Locking Positions | 15 | |
| Lock Spacing | Every 4″ | 102 mm |
| Power Unit | ||
|---|---|---|
| Motor | 220 VAC / 60 Hz / 1 Ph | |
| Noise | 45 dB | |
| Shipping | ||
|---|---|---|
| Weight | 2,606 lbs | 1,182 kg |
| Dimensions | 209″ x 22″ x 29″ | 5,309 mm x 558 mm x 737 mm |
An air supply (minimum 30 PSI / 3 CFM) is required for the safety-lock mechanisms to disengage. The end-user is responsible for providing, installing and maintaining the air supply.
