SKU: 5175172
6,350-kg. Capacity / Alignment Hoist / Limo Extended / Includes Turnplates and Slip Plates

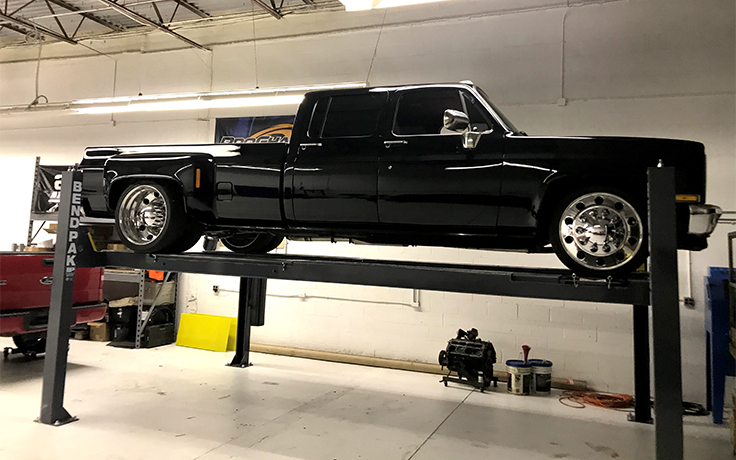

The BendPak HDS-14LSXE is the extended version of the HDS-14LSX, adding an extra 762 mm to its overall length and runways. Designed for large vehicles, including trucks, SUVs, and limousines, this robust 6,350-kg. capacity alignment hoist ensures seamless, precision-based alignment services for busy workshops.
HDS-14LSXE
Features
Extended Length for Versatile Lifting
The HDS-14LSXE extends the overall length and runway size by 762 mm, accommodating longer vehicles, such as limousines and extended trucks, with ease.

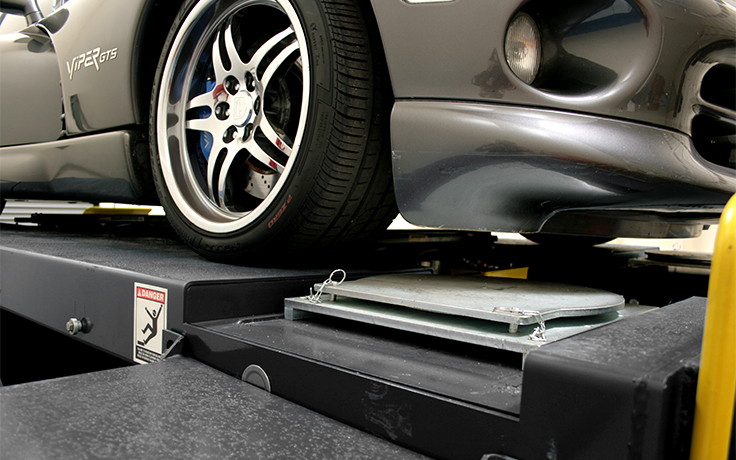

Turn Plates for Accurate Alignments
Integrated aluminum-alloy turn plates with dual “popsicle gap stops” provide precise wheel alignments while being lightweight yet durable.

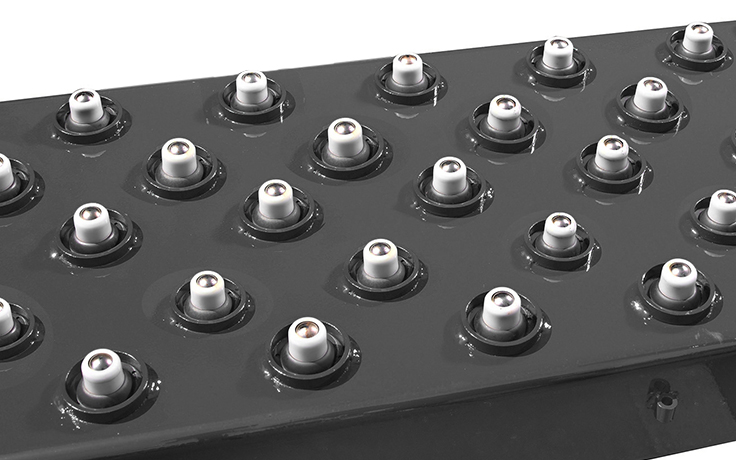

Multi-Caster Slip Plates
The multi-caster slip plates in the rear ensure smooth, free-floating alignments, reducing resistance and improving alignment efficiency.
Heavy-Duty Aircraft Cable System
A 13 mm diameter 6 x 25 aircraft-quality stainless-steel cable ensures long-term durability, resisting abrasions and wear over time.
Spring-Loaded Safety Locks
Spring-loaded locks engage automatically at multiple height positions, ensuring a secure and stable lift operation.
Push-Button Pneumatic Lock Release
A simple push-button release system allows for smooth descent operation with aircraft-quality stainless steel and aluminum pneumatic cylinders.
Longer Approach Ramps
Designed for low-clearance vehicles, extended ramps provide easy access for sports cars, trucks, and SUVs.
Materials & Tech
Inclusions
| CAPACITY | lbs | kgs |
| Lifting Capacity | 14,000 lbs | 6,350 kg |
| Max Capacity / Front Axle | 7,000 lbs | 3,175 kg |
| Max Capacity / Rear Axle | 7,000 lbs | 3,175 kg |
| RISE | inches | mm |
| Minimum Runway Height | 7.625” | 194 mm |
| Maximum Rise | 70” | 1,778 mm |
| Maximum Lifting Height | 77.625” | 1,972 mm |
| Time to Full Rise | 60 seconds |
| POWER | |
| Power Unit | 220 VAC / 60 Hz / 1 Ph |
| NOISE | |
| Noise Level | 45 dB |
| SHIPPING | Weight |
| Shipping Weight | 3,102 lbs (1,407 kg) |
