Heavy Duty Jacking Beams in 8T, 12T, 16T, and 20T

SKU: JB80-2, JB120-2, JB160-2, JB200-2

Give your wheel-free maintenance jobs flexibility and strength.  Stertil Koni offers four Heavy Duty Jacking Beams to help you lift  8 tons, 12 tons, 16 tons, or 20 tons.  Ask your sales person for price options on your specific needs.

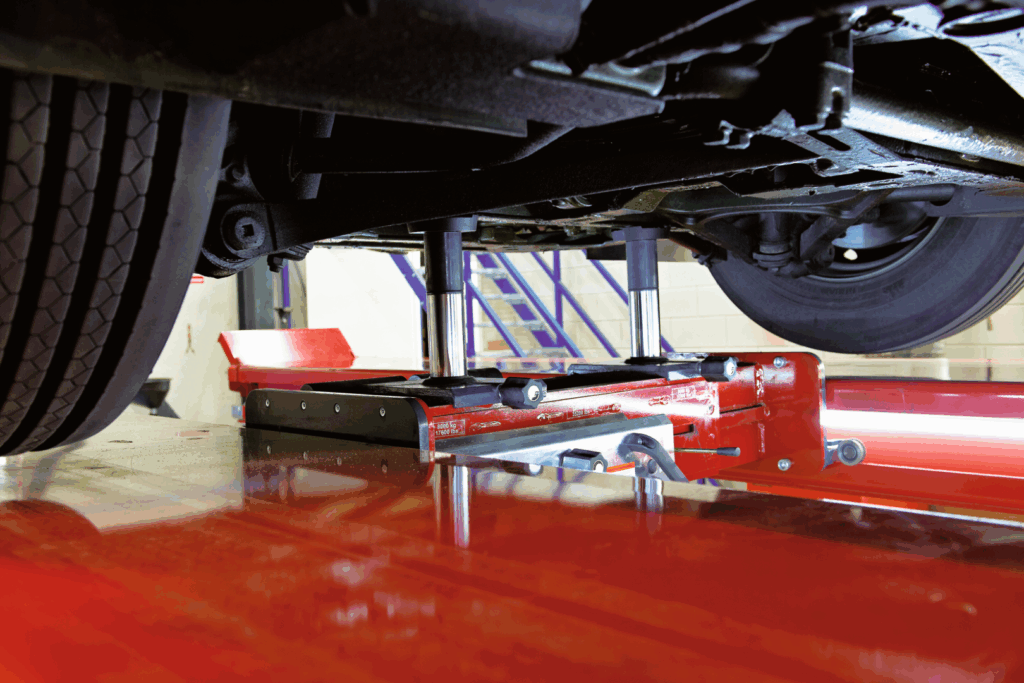

These air hydraulic twin ram jacking beams work together with Stertil Koni platform SKYLIFTS and all Stertil Koni 4 post lifts.

Includes two 100mm extensions and two flat adapters.  Also available in a single ram style.

Enquire

Here to help

Heavy Duty Jacking Beams in 8T, 12T, 16T, and 20T

Enquire
DESIGNED TO ADJUST TO YOUR WORKSHOP

Air Power
High speed rams travel via rapid air hydraulics.

Balance
You control the two transversely sliding rams individually for added safety and balance.

Best Fit for Your People
Customise your frame height – talk to your salesperson.

Ease of Use
Simple, modern control panel located at ergonomic working height.

Easy Fit SKYLIFT and 4 Post Hoists
Adjustable frames in two styles: Small 590-890mm and Wide 850-1150mm.

ADD THESE AS NEEDED

Ask about these optional extras.

  • TROLLEY to make your 202kg jacking beam easier to move through the workshop.
  • EXTENSIONS 100mm or 200mm.
  • DIFF BEAM for lifting with both rams at a single point.
  • CROSSBEAM ADAPTER capacity 15 tons, adjustable 125-750mm, total length 902mm, height 136mm.
  • ADAPTERS U-shape or V-shape.

SPECIFICATIONS

JB80-2 8 Ton Heavy Duty Jacking Beam
Width Range Small Frame 590mm-890mm
Width Range Wide Frame 850mm-1150mm
Weight 202kg
Stroke 200mm
Minimum Height 305mm
Maximum Height 505mm
Lifting Points (distance) 200mm-990mm
Depth 665mm
Air Supply 8-12 bar
Air Consumption 350 litres per minute



JB120-2 12 Ton Heavy Duty Jacking Beam
Width Range Small Frame 590mm-890mm
Width Range Wide Frame 850mm-1150mm
Weight 202kg
Stroke 200mm
Minimum Height 305mm
Maximum Height 505mm
Lifting Points (distance) 200mm-990mm
Depth 665mm
Air Supply 8-12 bar
Air Consumption 350 litres per minute



JB160-2 16 Ton Heavy Duty Jacking Beam
Width Range Small Frame 590mm-890mm
Width Range Wide Frame 850mm-1150mm
Weight 202kg
Stroke 200mm
Minimum Height 305mm
Maximum Height 505mm
Lifting Points (distance) 200mm-990mm
Depth 665mm
Air Supply 8-12 bar
Air Consumption 350 litres per minute



JB200-2 20 Ton Heavy Duty Jacking Beam
Width Range Small Frame 590mm-890mm
Width Range Wide Frame 850mm-1150mm
Weight 202kg
Stroke 200mm
Minimum Height 305mm
Maximum Height 505mm
Lifting Points (distance) 200mm-990mm
Depth 665mm
Air Supply 8-12 bar
Air Consumption 350 litres per minute



Table Notes:
1) Yes, the specs are the same across all four different capacity jacking beams.
2) The capacity of the jacking beam must not exceed 0.66 times the lifting capacity.  Talk to your sales person about your lifting needs.
