Home / Workshop Equipment / Hydraulic High Lift Wheel Dolly WD-5P

High-Lift-Wheel-Dolly-WD-5P_free-standing

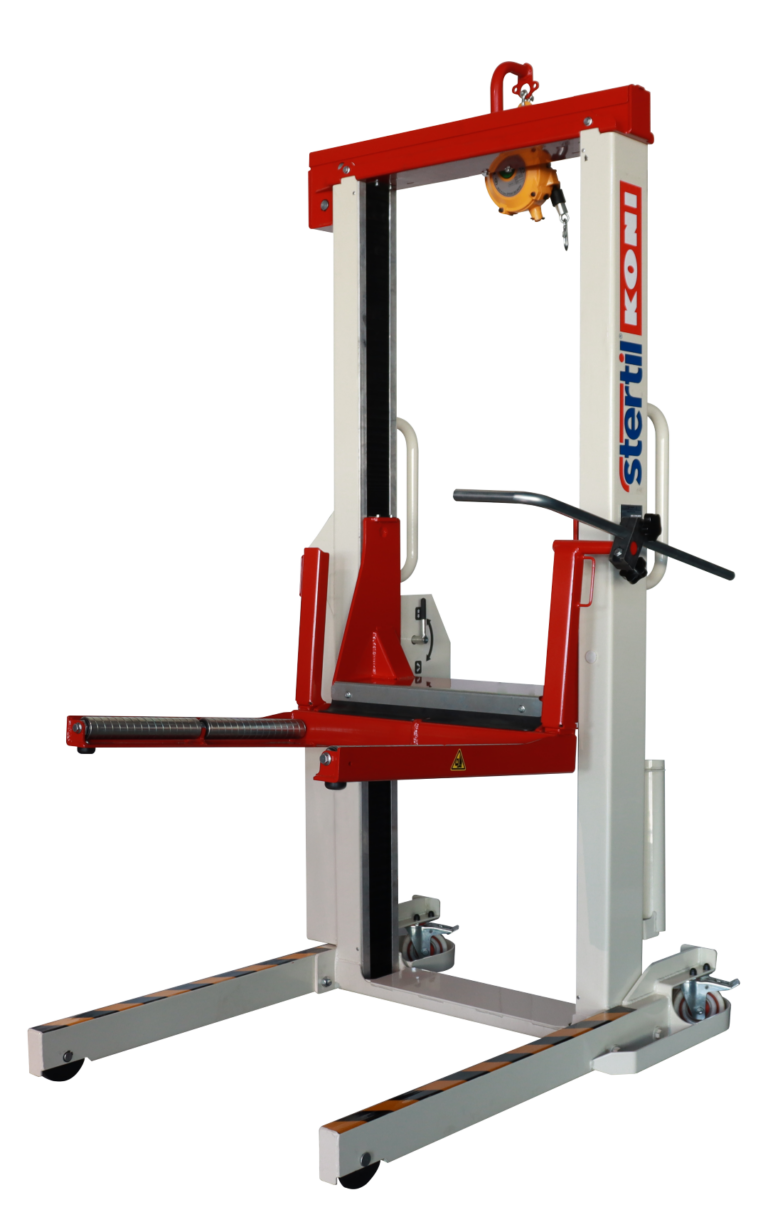

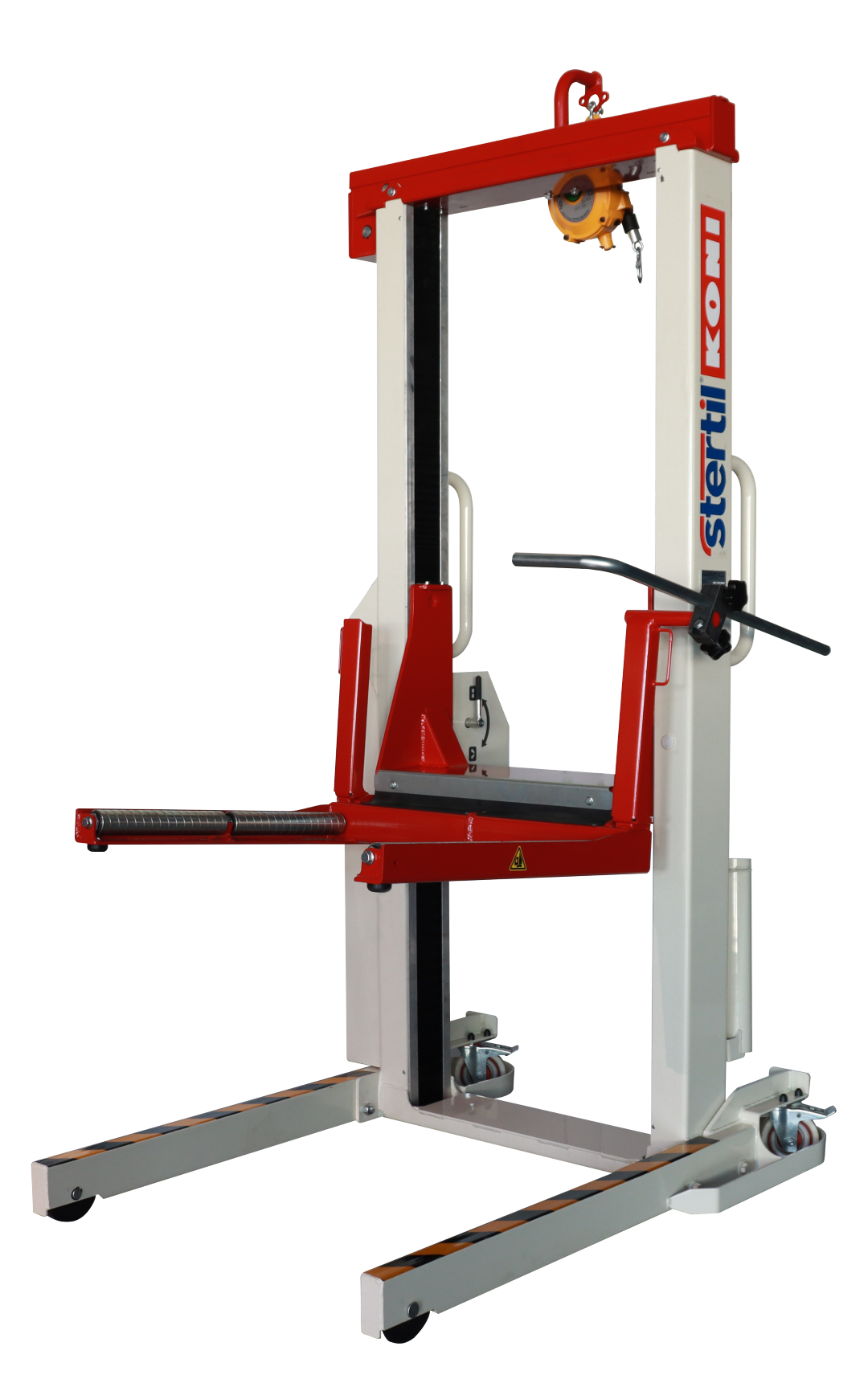

Hydraulic High Lift Wheel Dolly WD-5P

SKU: 95003932

The Stertil-Koni WD-5P is a fully hydraulic high-lift wheel dolly designed for ergonomic and efficient wheel and tire maintenance. With a 1,100 lbs lifting capacity, hydraulic tilting forks, and an open chassis for enhanced accessibility, this heavy-duty wheel dolly provides maximum safety, maneuverability, and precision alignment.

1,100 lbs lifting capacity
Hydraulic tilting forks
Open chassis
Swivel casters
Air-driven hydraulic pump with adjustable speed

Here to help

Features

The WD-5P simplifies the process of removing, installing, and aligning heavy wheels and tires, ensuring effortless and precise handling.

Hydraulic Tilting Forks for Precision Alignment
Separate rollers for first and second wheel
Smooth and precise wheel positioning
Tilt angles of 10° up and 4° down

Open Chassis Design for Increased Accessibility
Extra working space for technicians
Unobstructed access to the wheel and tire
Designed to improve workflow efficiency

Retaining Bracket for Secure Wheel Handling
Provides a stable and secure grip
Reduces risk of wheel slippage during removal and installation

Swivel Casters for Easy Positioning
Effortless movement around the workshop
Smooth maneuverability for enhanced control

Air-Driven Hydraulic Pump with Adjustable Speed
Fast and controlled lifting operation
Adjustable settings for optimized efficiency

Versatile Compatibility for Various Wheel Sizes
Suitable for single and double wheels
Accommodates wheel sizes from 31.5” to 47.2”

Materials & Tech

Built with a robust steel frame and protective covers, the WD-5P is designed for longevity, stability, and operator safety.

Fully hydraulic high-lift wheel dolly
Swivel casters for easy maneuverability
Hydraulic tilting forks for precision alignment
Open chassis for added workspace
Retaining bracket for secure wheel handling
Air tool holder for impact gun storage

Optional

Extended Forks for Larger Wheel Applications
Additional Retaining Brackets for Enhanced Stability
Heavy-Duty Casters for Increased Mobility

Specifications

GENERAL SPECIFICATIONS	Specifications
Lifting Capacity	1,100 lbs
Lifting Height	55.5”
Lifting Speed	1.8” per second
Tilt Angles	10° up, 4° down

DIMENSIONS & WEIGHT	Specifications
Height	85.5”
Length	54.3”
Width	44.3”
Fork Length	26.7”
Double Roller Length	26.3”
Weight	575 lbs

WHEEL COMPATIBILITY	Specifications
Wheel Sizes	31.5” – 47.2”
Pneumatic Operation Pressure	72 – 145 Bar
Air Gun Balancer	20 – 31 lbs

ELECTRICAL & PNEUMATIC	Specifications
Operation Type	Air-driven hydraulic pump
Adjustable Speed	Yes

Brand Spotlight

StertilKoni

Stertil-Koni is a global leader in heavy-duty vehicle lifts, known for its unmatched quality, innovation, and reliability.

Exclusively supplied in Australia by Genesis Equipment, Stertil-Koni products stand out with patented technologies such as wireless mobile column lifts, the innovative EARTHLIFT energy retrieval system, and microprocessor-controlled lifting systems. These features ensure exceptional safety, efficiency, and durability, making Stertil-Koni the trusted choice for heavy-duty lifting. With Genesis Equipment’s industry expertise and after-sales support, Stertil-Koni continues to set the benchmark for excellence in the Australian market.

Other StertilKoni Products

Ranger

Tyre Inflation Cage

— Wheel Service Equipment

BendPak

Litestix Under Hood Work Light

— Workshop Equipment

Nussbaum

Top Lift 2.35 TLD XY

— Vehicle Lifts

Product Uses

What some of our customers have used it for:

No data was found

Perfect for:

Truck & Bus Wheel Maintenance
Heavy Vehicle Dealerships & Service Centers
Fleet Management & Logistics Operators
Mining & Industrial Vehicle Workshops
Crash Repair & Body Shops

Resources

Downloads

BrochurePDF
