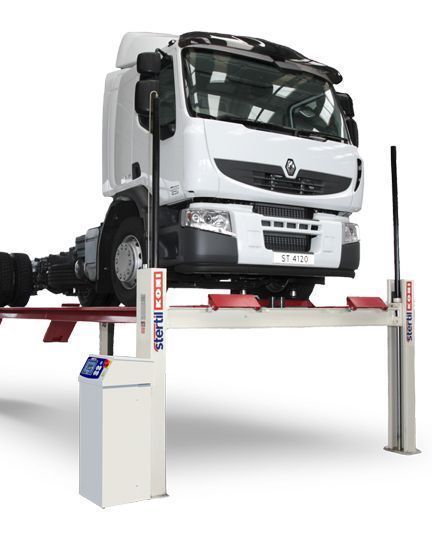

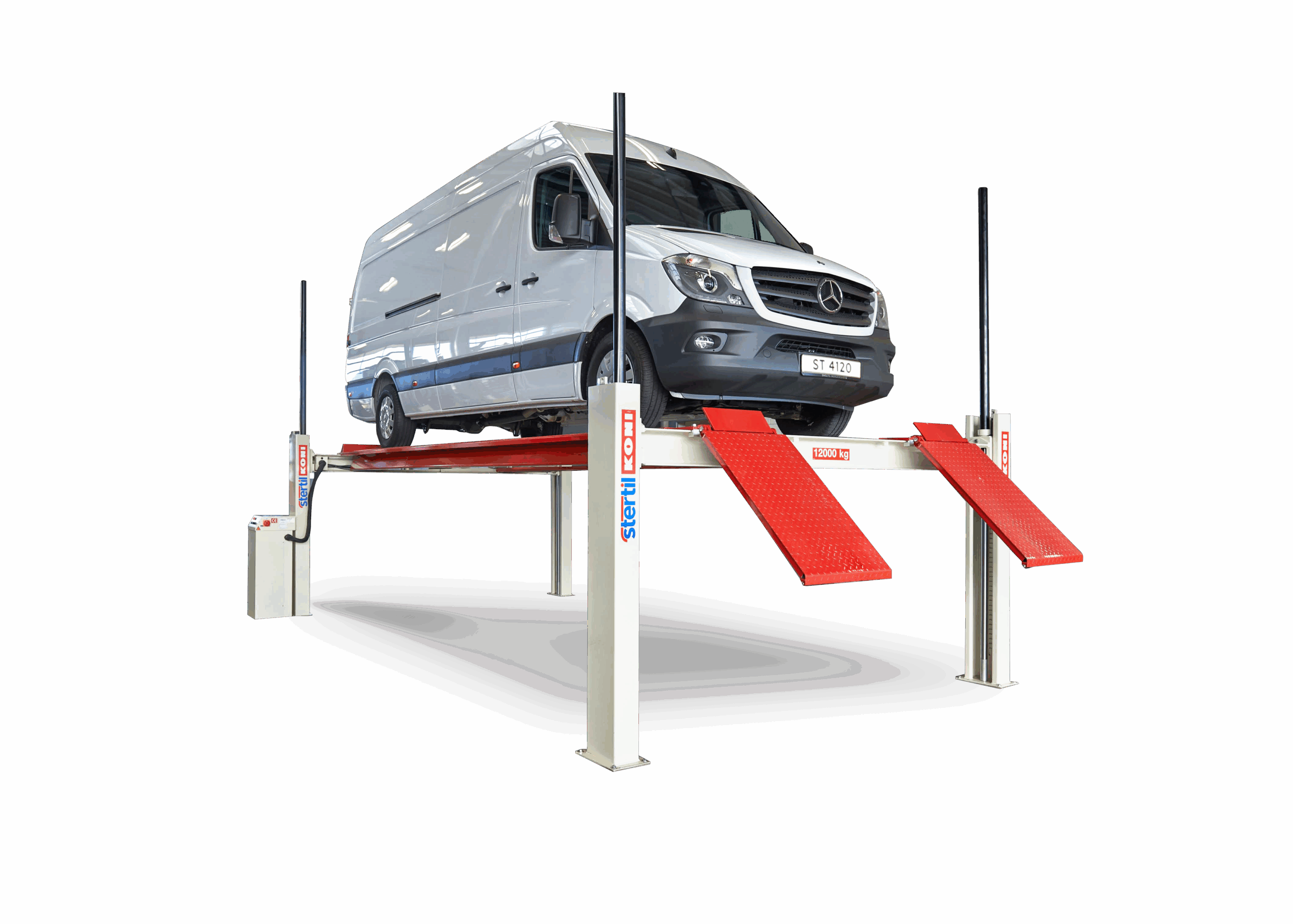

Adjustable Tandem 4 Post Lift 12 Tonne ST4120

SKU: ST4120

The Stertil-Koni ST4120 is specified around your fleet rather than the other way round. 12,000 kg of capacity, platform lengths from 4,800 mm to 10,000 mm, and a synchronisation kit that pairs two lifts into a single 20 metre run for truck-and-trailer combinations. The ebright touchscreen stores lifting heights, so a job that repeats gets the same height every time without anyone eyeballing it.

12,000 kg lifting capacity
1,890 mm lifting height
90 second rise
245 mm drive-on height
Platform lengths 4,800 – 10,000 mm, or 20 metres in tandem
Programmable lifting heights

Here to help

One lift, specified to the vehicles you actually service — and re-specified when they change.

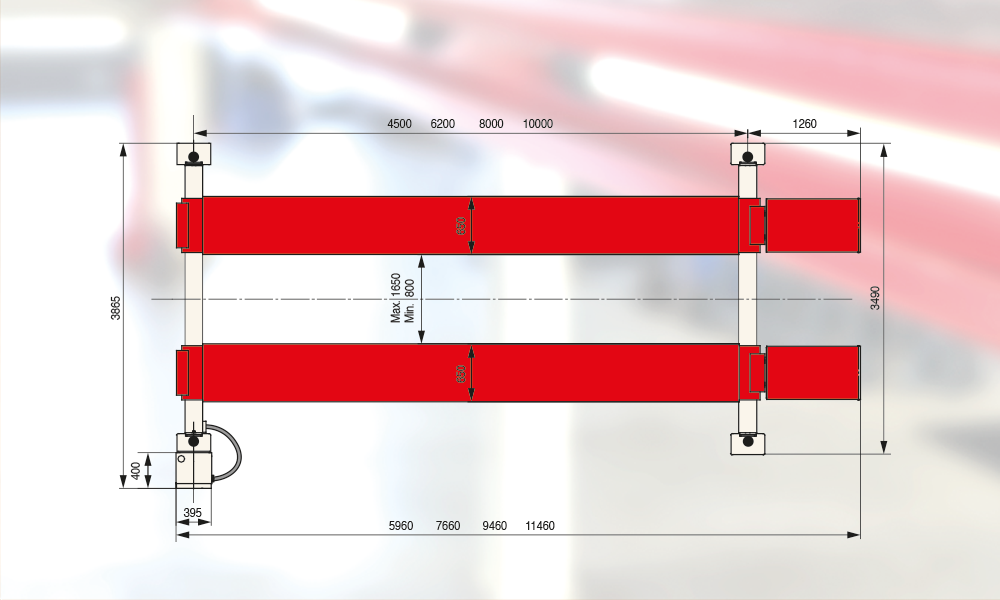

Platform length is chosen at order, anywhere from 4,800 mm to 10,000 mm.

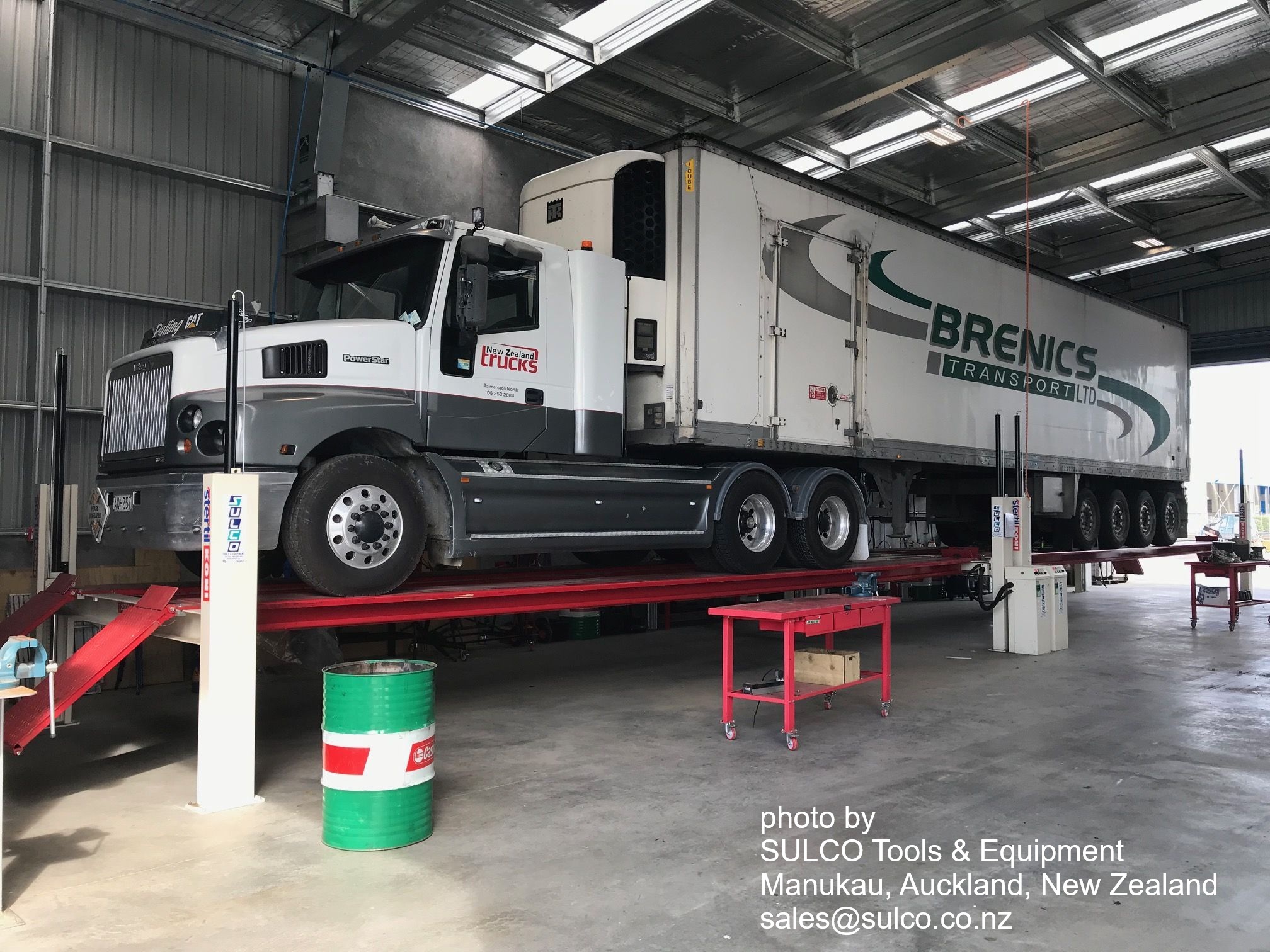

A tandem synchronisation kit links two lifts into 20 metres, operated together or independently.
Lifting heights can be programmed for repeat service tasks.
Vertical lifting motion with no horizontal drift, which protects alignment accuracy.

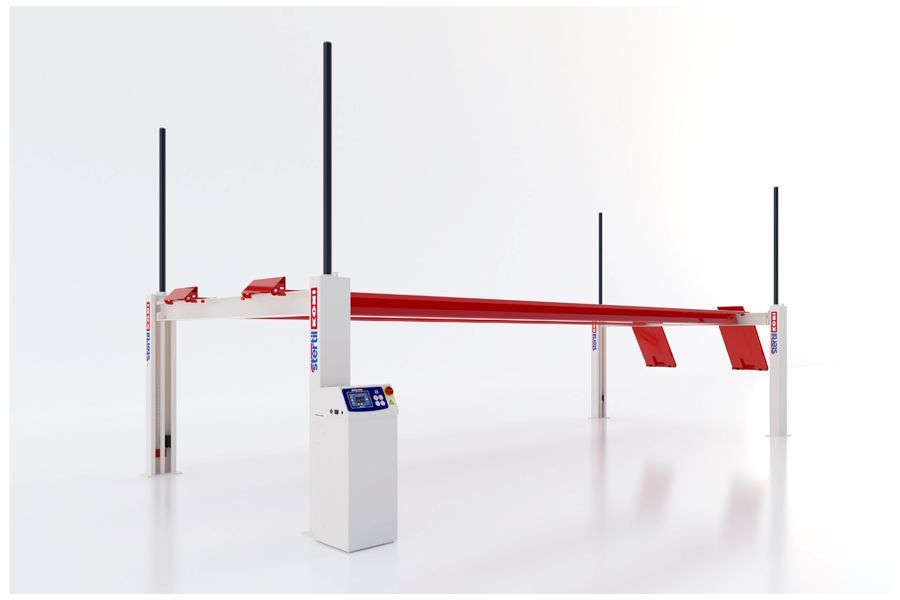

Surface-mounted or recessed, to suit the slab already in the workshop.

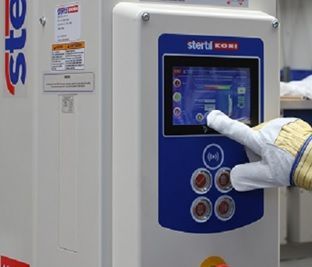

ebright Smart Control System — a full-colour touchscreen that reads through gloves, with operating history, fault diagnostics and maintenance prompts on the one screen.

Comes with

ebright Smart Control System
Microprocessor-controlled tracking
Independent mechanical locking
Automatic overload protection
Automatic stop at full height
Dead-man's operation

Optional

Tandem synchronisation kit
Short approach ramps for recessed installation

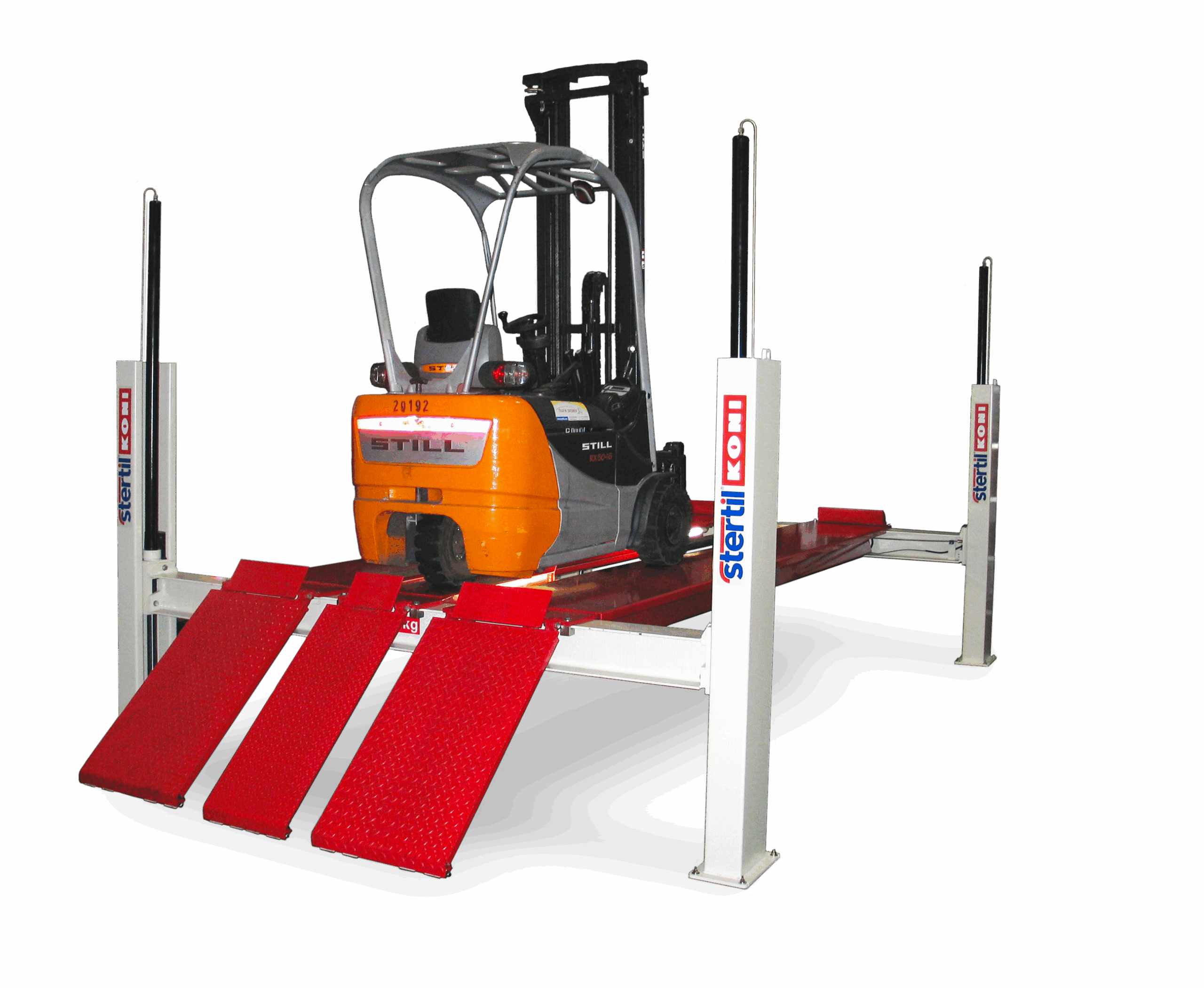

Third platform for three-wheel forklifts
LED lighting in sets of 4, 6, 8 or 10

Specifications

Specification	ST4120
Lifting capacity	12,000 kg
Lifting system	Hydraulic
Lifting height	1,890 mm
Lifting time	90 seconds
Drive-on height	245 mm
Platform lengths	4,800 – 10,000 mm (20,000 mm in tandem)
Certification	CE, UKCA, CSA, ANSI/ALI-ALCTV

Brand Spotlight

Stertil Koni

Stertil-Koni is a global leader in heavy-duty vehicle lifts, known for its unmatched quality, innovation, and reliability.

Exclusively supplied in Australia by Genesis Equipment, Stertil-Koni products stand out with patented technologies such as wireless mobile column lifts, the innovative EARTHLIFT energy retrieval system, and microprocessor-controlled lifting systems. These features ensure exceptional safety, efficiency, and durability, making Stertil-Koni the trusted choice for heavy-duty lifting. With Genesis Equipment’s industry expertise and after-sales support, Stertil-Koni continues to set the benchmark for excellence in the Australian market.

Other Stertil Koni Products

Stertil Koni

Compact 4 Post Lift 7 Tonne LWB ST4070

— Heavy Vehicle Lifts

Stertil Koni

Ultra 4 Post Platform Lift 25 Tonne ST4250

— Heavy Vehicle Lifts

Stertil Koni

Heavy Duty Jacking Beams in 8T, 12T, 16T, and 20T

— Heavy Vehicle Lifts

Stertil Koni

Ultra 4 Post Platform Lift 17.5 Tonne ST4175

— Heavy Vehicle Lifts

Stertil Koni

Compact 4 Post Lift 5.5 Tonne ST4055

— Heavy Vehicle Lifts

Stertil Koni

Hydraulic High Lift Wheel Dolly WD-5P

— Workshop Equipment

Stertil Koni

Platform Lift 35,000kg SKY.350

— Heavy Vehicle Lifts

Stertil Koni

Platform Lift 20,000kg SKY.200

— Heavy Vehicle Lifts

Stertil Koni

Platform Lift 25,000kg SKY.250

— Heavy Vehicle Lifts

Product uses

Perfect for:

Mixed fleets where vehicle length varies from job to job
Truck and trailer combinations lifted as a single unit
Forklift and materials-handling servicing, with the third platform fitted
Workshops that need a repeatable, programmed lift height

Resources

Downloads

ST4120 BrochurePDF

ST4120 Installation and Service ManualPDF

ST4120 Service and Parts ManualPDF

ST4120 Parts List and AppendicesPDF
