SKU: 5175192

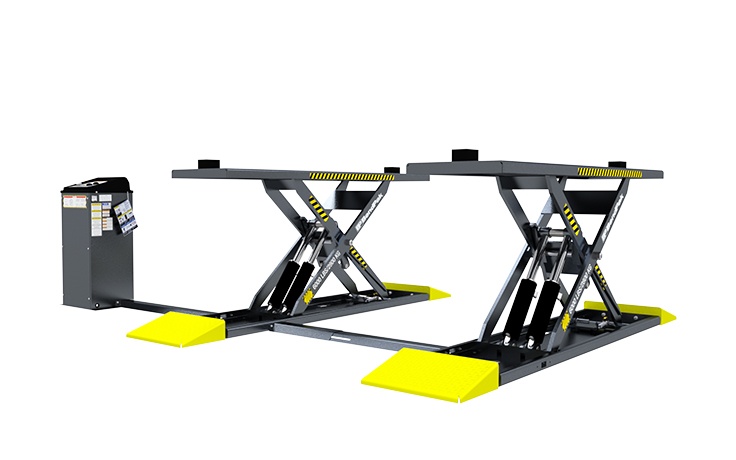

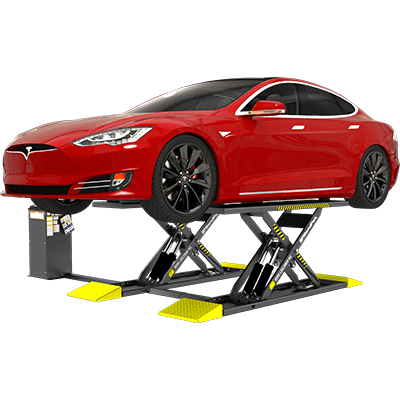

The BendPak MDS-6EXT is an extended-platform, open-center mid-rise scissor lift designed to accommodate long-wheelbase vehicles, including modern electric cars. Featuring adjustable arm assemblies, multiple safety locks, pneumatic-assisted lifting, and a rugged steel frame, this lift is perfect for wheel service, detailing, and vehicle maintenance.
MDS-6EXT | Scissor Lift
Features
Extended Platform for Long-Wheelbase Vehicles
Designed to accommodate modern electric vehicles and long-wheelbase cars, ensuring proper lifting points and stability.
Open-Center Design for Full Undercarriage Access
The open-center construction allows for easy access to the undercarriage, making repairs and maintenance more efficient.
Pneumatic Kicker Assist for Effortless Lifting
Air-powered assist system ensures smooth, powerful initial lifting, making operations faster and easier.
Four Hydraulic Cylinders for Even Lifting
The quad-cylinder system with a built-in flow divider guarantees balanced and controlled lifting at all times.
Solid-Steel Safety Lock Bars for Secure Positioning
The self-locking safety arms engage automatically, ensuring zero risk of hydraulic failure.
Removable Ramps for Enhanced Versatility
The clip-on approach ramps allow for low-clearance vehicle access and can be removed for open-center use.
Materials & Tech
Inclusions
| CAPACITY | lbs | kgs |
| Lifting Capacity | 6,000 lbs | 2,722 kg |
| RISE | inches | mm |
| Lifting Height | 36.6″ | 930 mm |
| Lifting Height + Blocks | 38.1″ | 968.5 mm |
| Lowered Height | 4.3″ | 110 mm |
| PLATFORM DIMENSIONS | inches | mm |
| Lift Platform Dimensions | 19″ x 78.7″ | 484 mm x 2,000 mm |
| Width Between Platforms | 40″ – 46″ | 1,018 mm – 1,168 mm |
| OUTSIDE DIMENSIONS | inches | mm |
| Overall Width | 19″ | 484 mm |
| Overall Length | 104.3″ | 2,650 mm |
| POWER & SHIPPING | |
| Power Source | 110 or 220 VAC / 60 Hz / 1 Ph |
| Shipping Weight | Varies based on configuration |
