SKU: 5175226

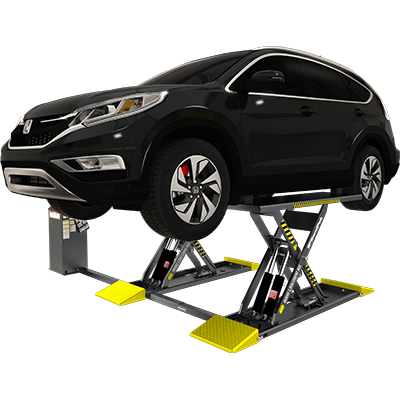

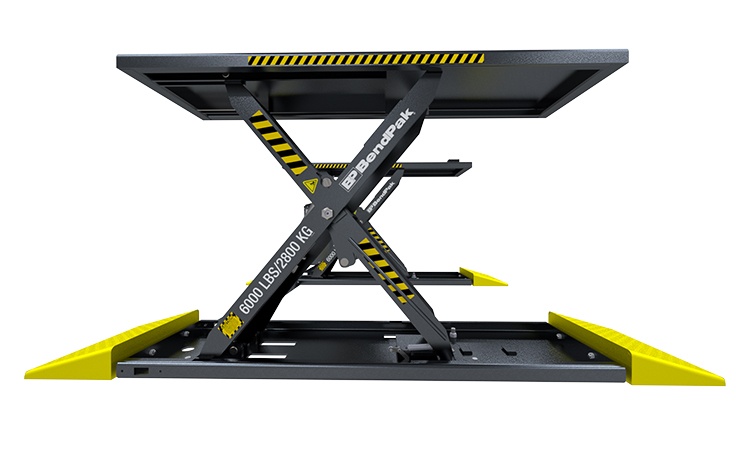

The BendPak MDS-6LP is a 2,722-kg. capacity mid-rise scissor lift featuring a fully open-center design for maximum convenience and work productivity. With longer platforms to accommodate various vehicle types, adjustable ramps, and enhanced safety mechanisms, this lift is ideal for home garages, quick-lube pits, and professional workshops.
Features
Fully Open-Center Design for Easy Access
The open-center construction provides unobstructed undercarriage access, allowing effortless vehicle maintenance and servicing.
Adjustable Approach Ramps for Versatility
Easily attach or remove the ramps to accommodate low-clearance vehicles or create a flush-mount lifting setup.
Powerful Four-Cylinder Hydraulic System
The quad-cylinder system with a flow divider ensures balanced lifting and efficient performance in all conditions.
Multiple Safety Lock Positions for Secure Holding
Automatic solid-steel safety locks engage at various heights, providing secure, customizable lifting positions.
Push-Button Pneumatic Safety Release System
With the press of a button, the air-powered safety locks disengage for smooth, controlled lowering.
Durable Zerk Grease Fittings for Longevity
Self-lubricating hinge points minimize wear and extend the lifespan of the lift with minimal maintenance.
Heavy-Duty Steel Frame with Powder Coat Finish
Built with rugged steel construction and a durable powder coat finish, ensuring maximum strength and corrosion resistance.
Rubber Lift Blocks for Safe and Secure Positioning
The included durable rubber blocks provide a secure, scratch-free grip on vehicles, ensuring safe lifting.
Materials & Tech
Inclusions
| Lifting Capacity | 2,722 kg (6,000 lbs.) |
| Lifting Height | 1,093 mm (43″) |
| Lifting Height + Blocks | 1,144 mm (45″) |
| Lift Platform Dimensions | 484 mm x 1,701 mm (19″ x 67″) |
| Width Between Platforms | 1,018 mm – 1,168 mm (40″ – 46″) |
| Overall Width | Adjustable |
| Overall Length | 2,351 mm (92.6″) |
| Lowered Height | 116 mm (4.6″) |
| Power Source | 110 or 220 VAC / 60 Hz / 1 Ph |
| Shipping Weight | Varies based on configuration |
