RP-20FC

SKU: 5150067

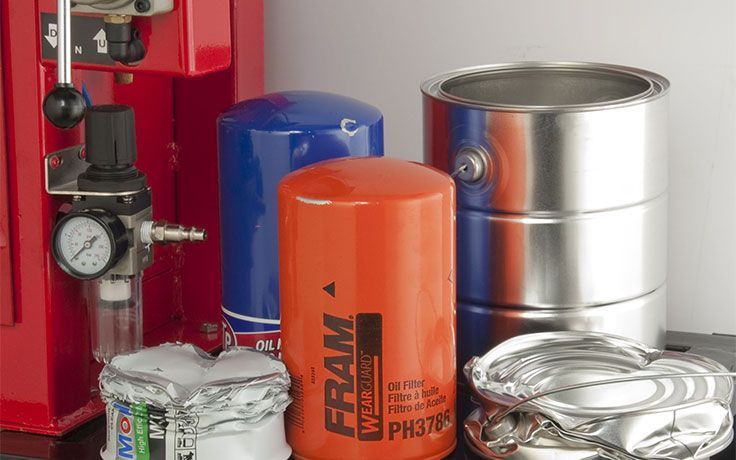

The RP-20FC Oil Filter Crusher applies 10 tons of air-operated pressure to reduce oil filters and cans to 20% – 25% of their original size. It removes up to 95% of oil, making disposal easier and cost-effective. The integrated collection chamber, downspout, and stand make oil recovery clean and efficient.

10-ton crushing capacity

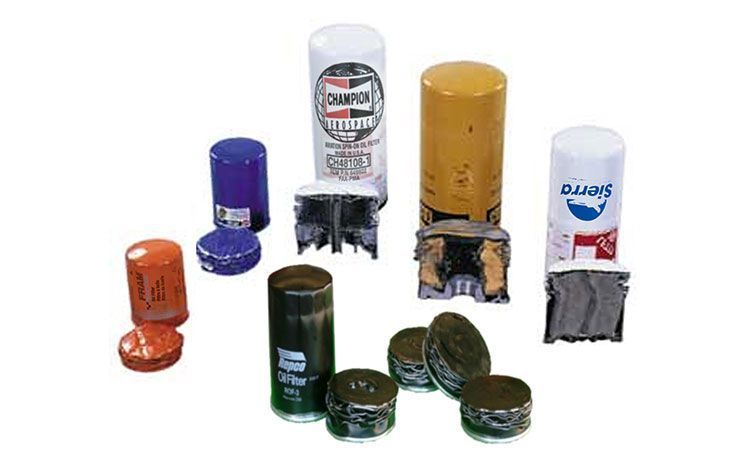

Crushes filters down to 20% – 25% of original size
Removes up to 95% of oil
EPA-compliant
Air-operated design
Automatic safety door
X-shape press head

Here to help

RP-20FC

Features

With 10 tons of crushing power, the RP-20FC reduces oil filters and cans to just 20% – 25% of their original size.

Maximizes Oil Recovery & Waste Reduction
Capable of removing up to 95% of oil, it minimizes hazardous waste disposal costs while ensuring compliance with EPA regulations.

Integrated Stand for Clean Oil Collection
The included stand accommodates 5, 16, and 55-gallon oil storage tanks, allowing for easy and efficient oil drainage.

Durable Welded Steel Construction
Built with heavy-duty welded steel, ensuring long-term reliability in commercial workshops.

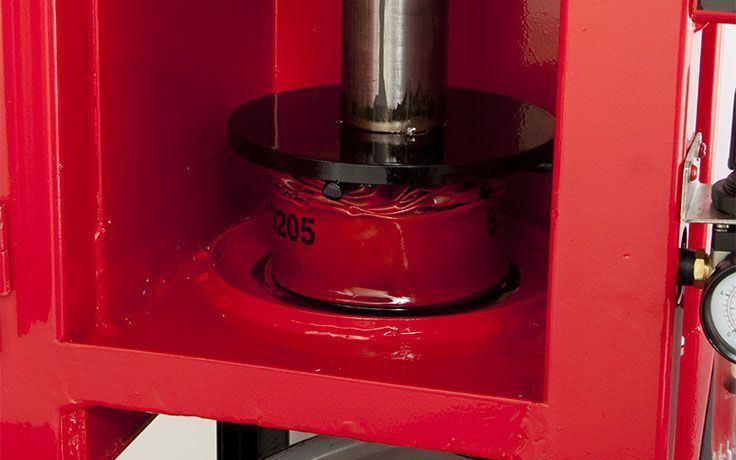

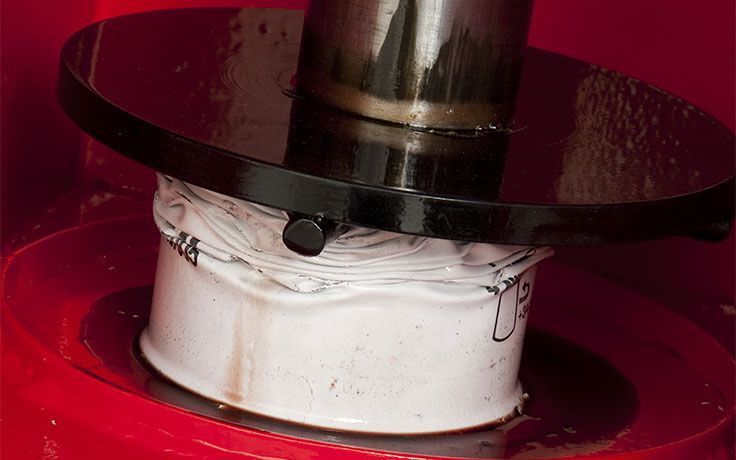

X-Shape Beveled Press Head for Precise Crushing
The unique X-shape bevel aligns filters and cans vertically, ensuring maximum crushing efficiency.

Safe & Easy to Use
Equipped with an automatic safety door, the machine stops operation when opened, ensuring operator safety.

Materials & Tech

Welded steel plate construction for maximum durability

Air-operated system for efficiency and minimal maintenance

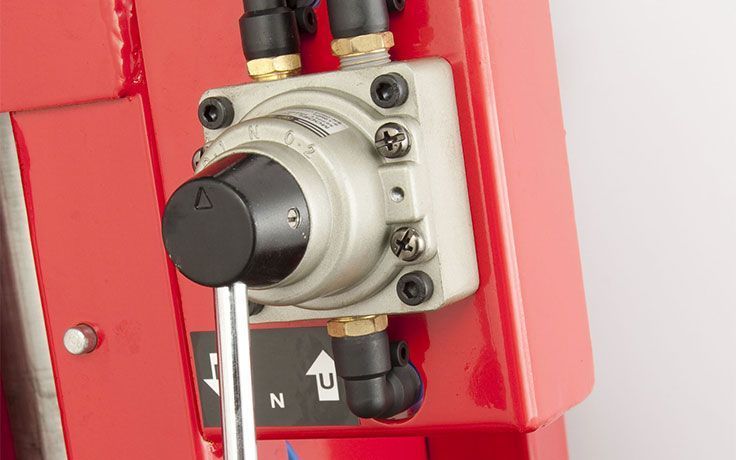

Tamper-proof pressure regulator to prevent overloading
Transparent door for easy process monitoring
X-shaped press head for precise and even crushing

COMES WITH

RP-20FC Oil Filter Crusher
Heavy-duty steel stand

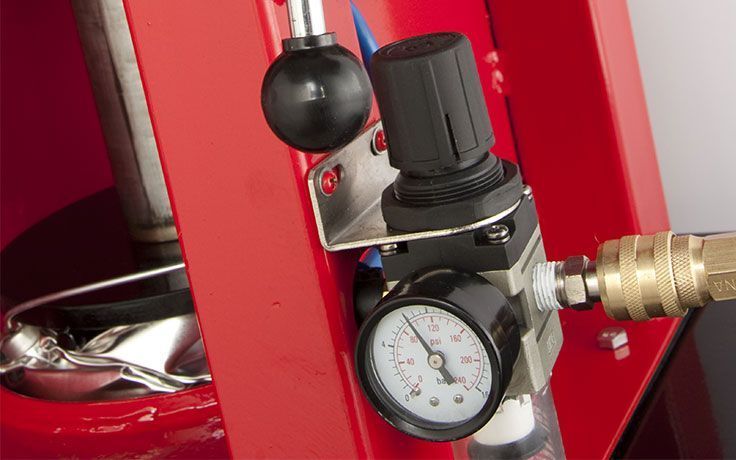

Pressure regulator & air moisture separator
Downspout for clean oil collection
Safety door with automatic shutoff

OPTIONAL

RP-50FC High-Capacity Filter Crusher (50,000 lbs. of crushing force)

Specifications

SPECIFICATION	Imperial	Metric
Crushing Pressure	10 tons	–
Filter Reduction Size	20% – 25% of original size	–
Oil Removal Efficiency	Up to 95%	–
Cycle Time	15 – 20 seconds	–
Air Input	125 – 175 psi	–
Overall Height	29.5″	749 mm
Overall Width	17″	432 mm
Overall Depth	17″	432 mm
Chamber Opening Height	10.25″	260 mm
Chamber Opening Width	8″	203 mm
Chamber Opening Depth	11″	279 mm
Unit Weight	326 lbs.	148 kg
Shipping Dimensions	43″ x 22″ x 22″	1,092 mm x 558 mm x 558 mm
