SKU: 5150059

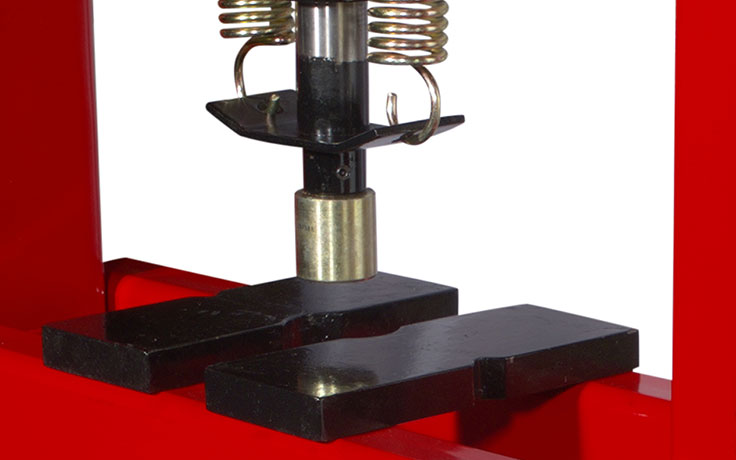

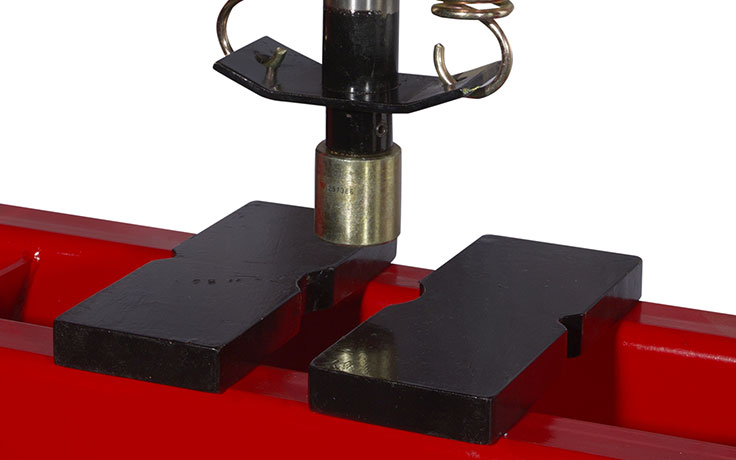

The Ranger RP-20HD is a high-performance 20-ton (18-mt.) shop press designed for professional workshops. Featuring a two-stage hydraulic pump, adjustable table height, and a lateral-moving cylinder, this industrial-grade press is ideal for bearing removal, U-joints, bending, straightening, and other pressing applications.
Features
High-Capacity 20-Ton Pressing Force
Easily handles bearings, bushings, U-joints, gears, and other components with 18,144 kg of pressure.

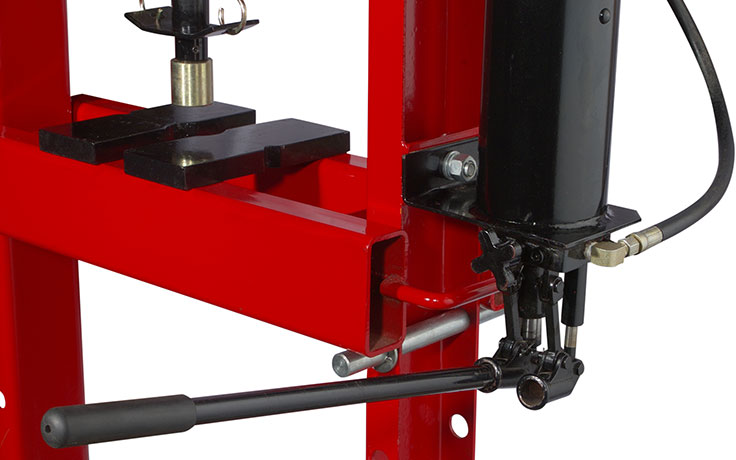

Two-Stage Hydraulic Pump for Precision & Speed
The independent two-speed hydraulic pump offers precise control, whether applying slow, measured pressure or quick pressing power.
Lateral Moving Cylinder for Versatile Operation
Enhances flexibility, allowing the cylinder to move laterally across the press for precision positioning.
Integrated 102mm Pressure Gauge
Provides a clear, real-time pressure reading, ensuring safe and efficient operation.
Heavy-Duty Steel H-Frame Construction
Built for industrial durability, offering maximum rigidity and strength for long-lasting performance.
Adjustable Table Height
Allows easy positioning of components with an adjustable range from 190 mm to 921 mm.
Materials & Tech
COMES WITH
OPTIONAL
| SPECIFICATION | Imperial | Metric |
| Pressing Force | 20 tons | 18,144 kg |
| Overall Height | 60.25″ | 1,530 mm |
| Overall Width | 37″ | 940 mm |
| Inside Width (Between Rails) | 24″ | 610 mm |
| Adjustable Table Height | 7.5″ – 36.25″ | 190 mm – 921 mm |
| Base Dimensions | 27.25″ x 26″ | 692 mm x 660 mm |
| Cylinder Stroke | 5.5″ | 140 mm |
| Shipping Weight | 298 lbs. | 135 kg |
| Shipping Dimensions | 19″ x 63″ x 23″ | 483 mm x 1,600 mm x 584 mm |
