SKU: 5175425

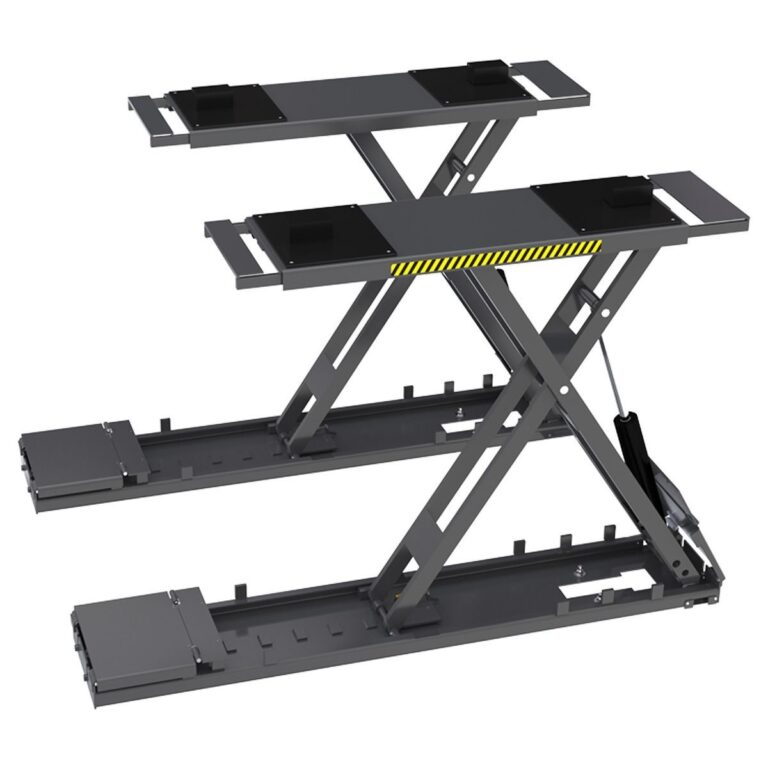

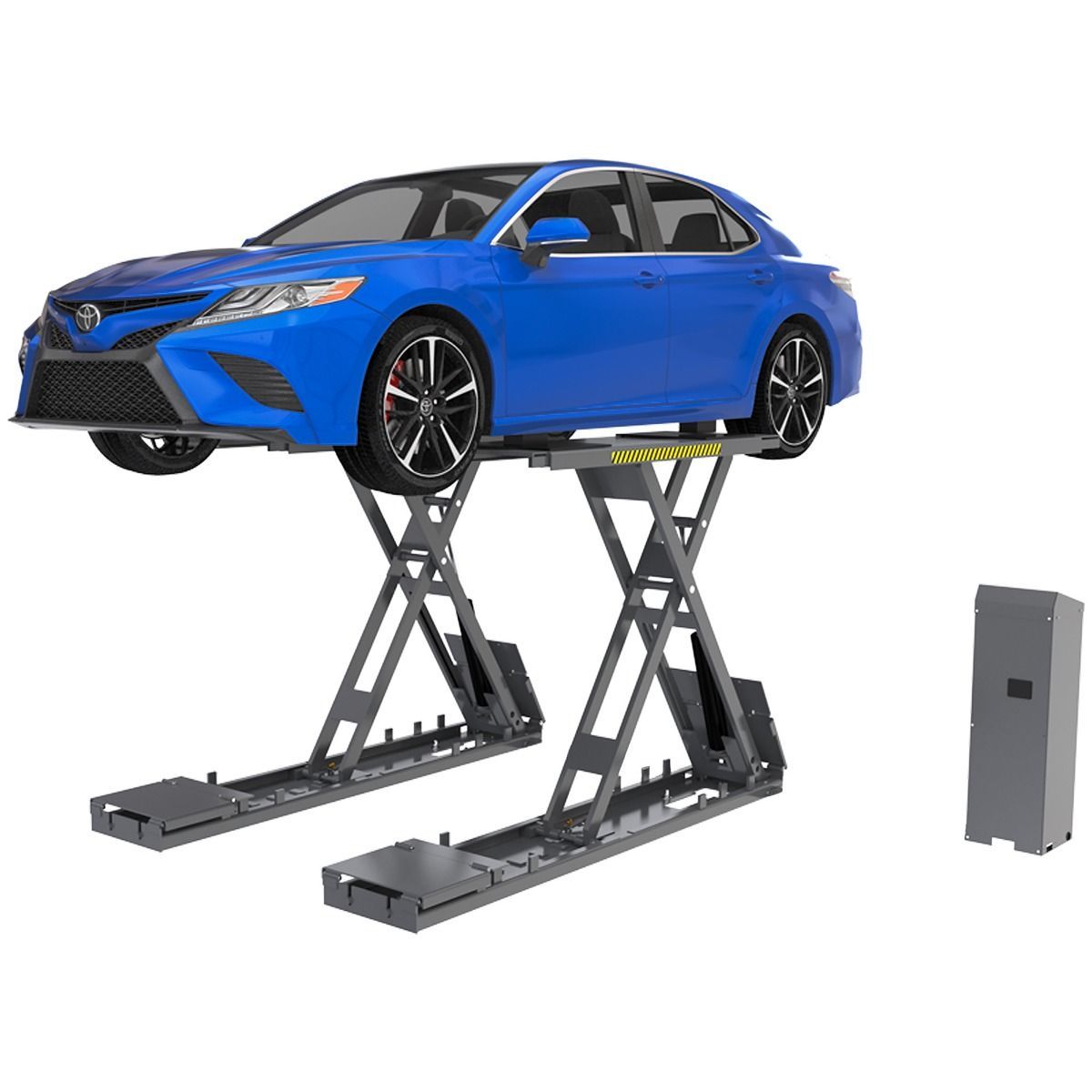

The BendPak SP-7XEF is a 7,000-lb. capacity flush-mounted, full-rise scissor lift designed to provide maximum lifting height without occupying valuable shop space. With an open-center design, hardened pivot pins, dual hydraulic cylinders, and ergonomic controls, this lift is perfect for high-performance service environments that require efficiency, reliability, and accessibility.
Features
Flush-Mounted, Open-Center Design

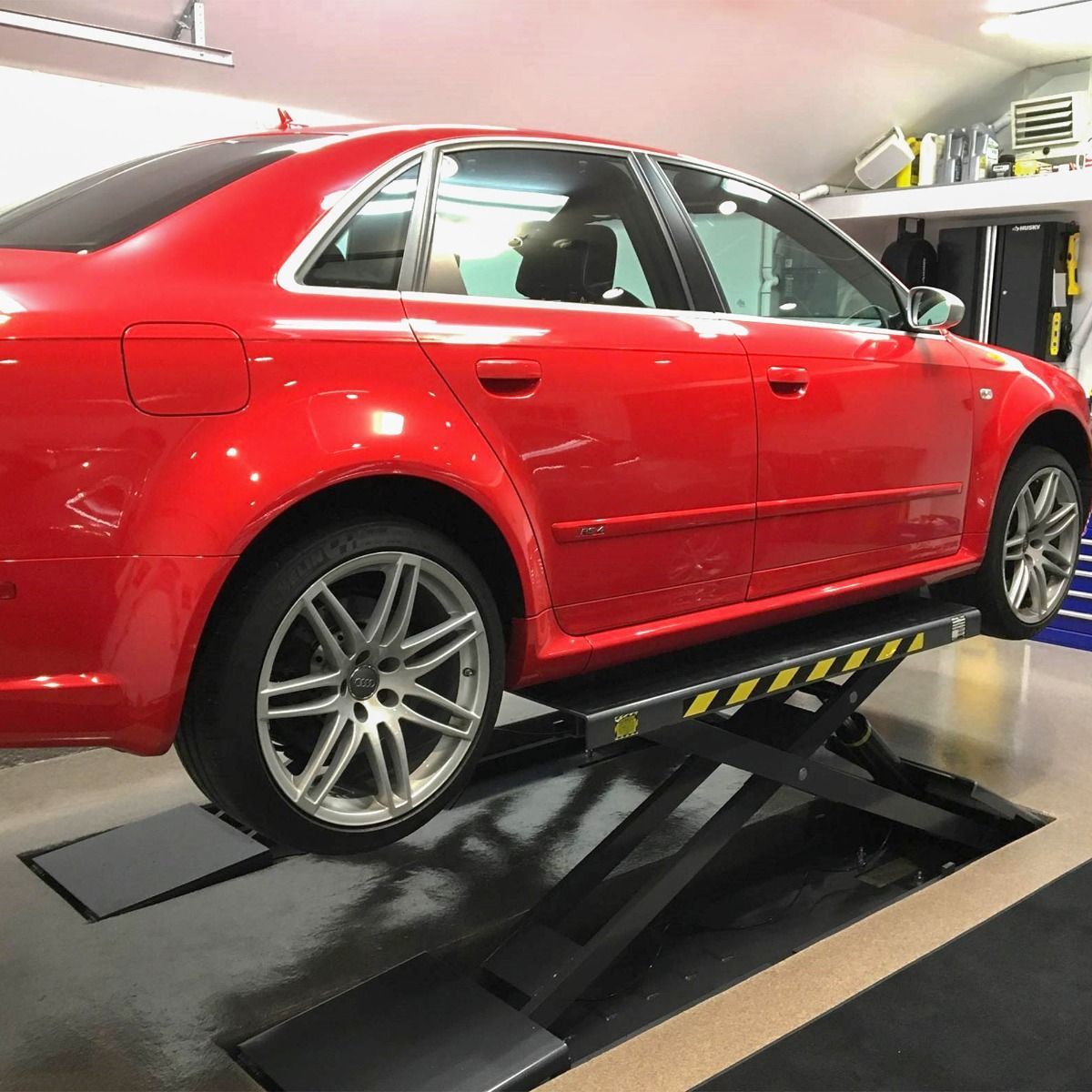

The zero-footprint, pit-style installation ensures a completely unobstructed workspace, making it perfect for quick-lube services, wheel alignments, and general vehicle maintenance.
Dual Hydraulic Cylinder System
Equipped with two heavy-duty hydraulic cylinders, the SP-7XEF provides smooth, even lifting, ensuring consistent and reliable performance.
Pneumatic Safety Locking System
Automatic multi-position safety locks engage securely during ascent, preventing accidental lowering and ensuring operator safety.
Hardened Pivot Pins with Zerk Grease Fittings
The durable, precision-engineered pivot pins enhance stability and longevity, while Zerk grease fittings provide easy maintenance for extended performance.
Heavy-Duty Steel Frame with Powder-Coat Finish
Constructed from reinforced steel and finished with a corrosion-resistant powder coat, ensuring long-term durability in demanding workshop conditions.
Extended Lift Platforms for Larger Vehicles
The 22” x 63” lift platform accommodates a wide range of vehicles, with optional extension kits for trucks and SUVs.
Fast, Efficient Lifting in Just 45 Seconds
Designed for high productivity, the SP-7XEF raises vehicles to a full height of 70.5 inches in under a minute, reducing service downtime and increasing efficiency.
Ergonomic Control Console for Seamless Operation
The electronic push-button control panel allows precise lifting and lowering, ensuring smooth, controlled operation every time.
Materials & Tech
Inclusions
| CAPACITY | lbs | kgs |
| Lifting Capacity | 9,000 lbs | 4,082 kg |
| RISE | inches | mm |
| A. Lifting Height | 24” | 610 mm |
| B. Lifting Height + Block | 27” | 686 mm |
| D. Lowered Height | 4” | 102 mm |
| 55 Seconds to Full Rise |
| OUTSIDE DIMENSIONS | inches | mm |
| E. Overall Lift Platform Length | 58.5” | 1,484 mm |
| F. Overall Lift Platform Width | 24” | 610 mm |
| G. Overall Length | 74.4” | 1,890 mm |
| MOTOR | |
| Power Source | 1.5 HP / 208-230 VAC / 60 Hz / 1 Ph |
| SHIPPING | Dimensions |
| Shipping Dimensions | 77” x 40” x 24” (1,943 mm x 1,016 mm x 609 mm) |
| Weight | 1,134 lbs (514 kg) |
