Ultra Heavy Duty 4 Post Platform Lifts

SKU: ST4175 and ST4250

High lifting 4 post hoists for vehicles 17,500 kg to 25,000 kg. Low drive on height 230 mm to 285 mm. Overload prevention built into the hydraulic lifting cylinders. Stertil Koni’s patented mechanical locking permanently enabled. Two 4 posters can combine into a tandem lift up to 11,500 mm length. Smooth lifting and lowering of uneven loads. Automatic LED lighting built into the platform for undercarriage illumination.

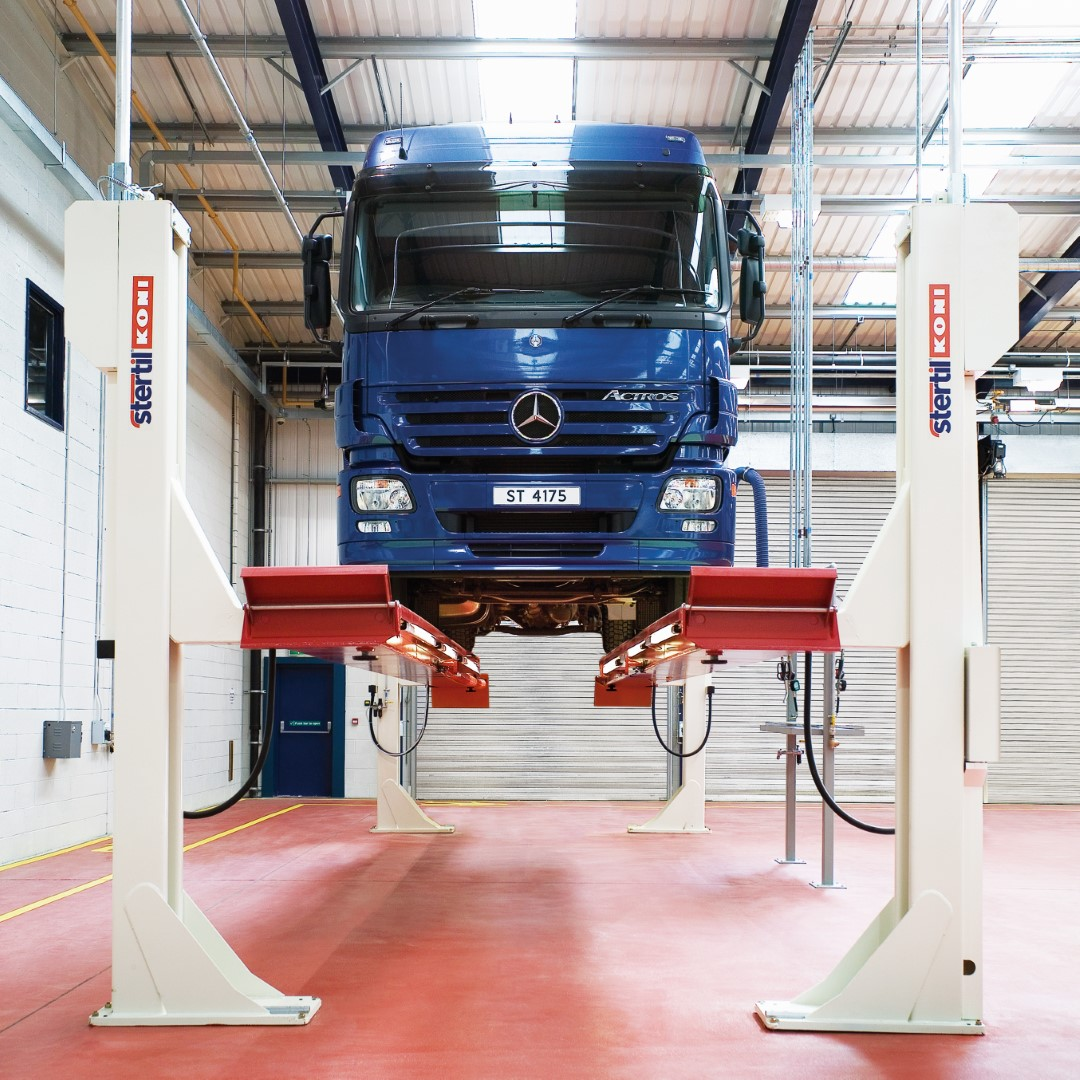

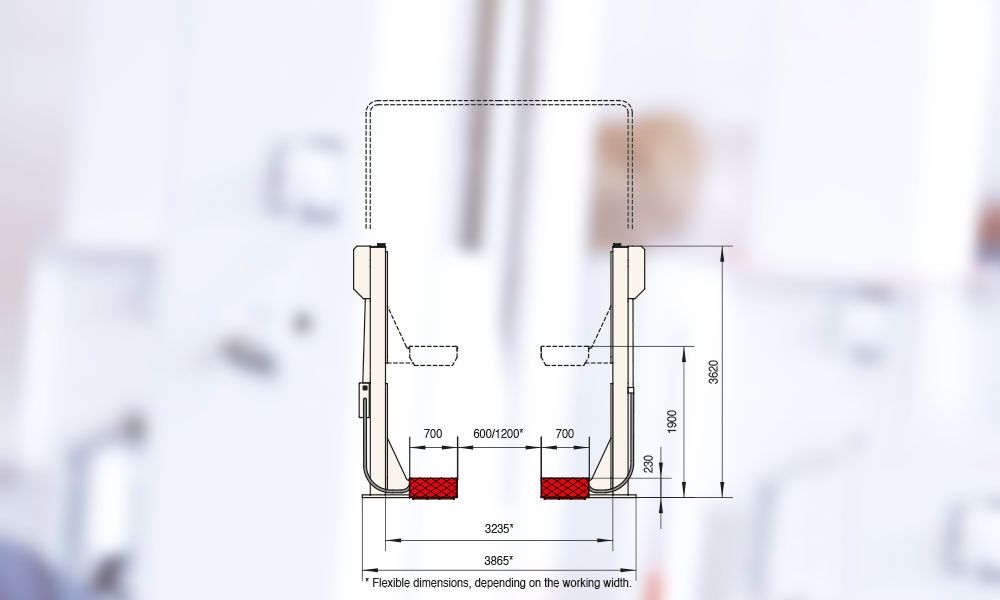

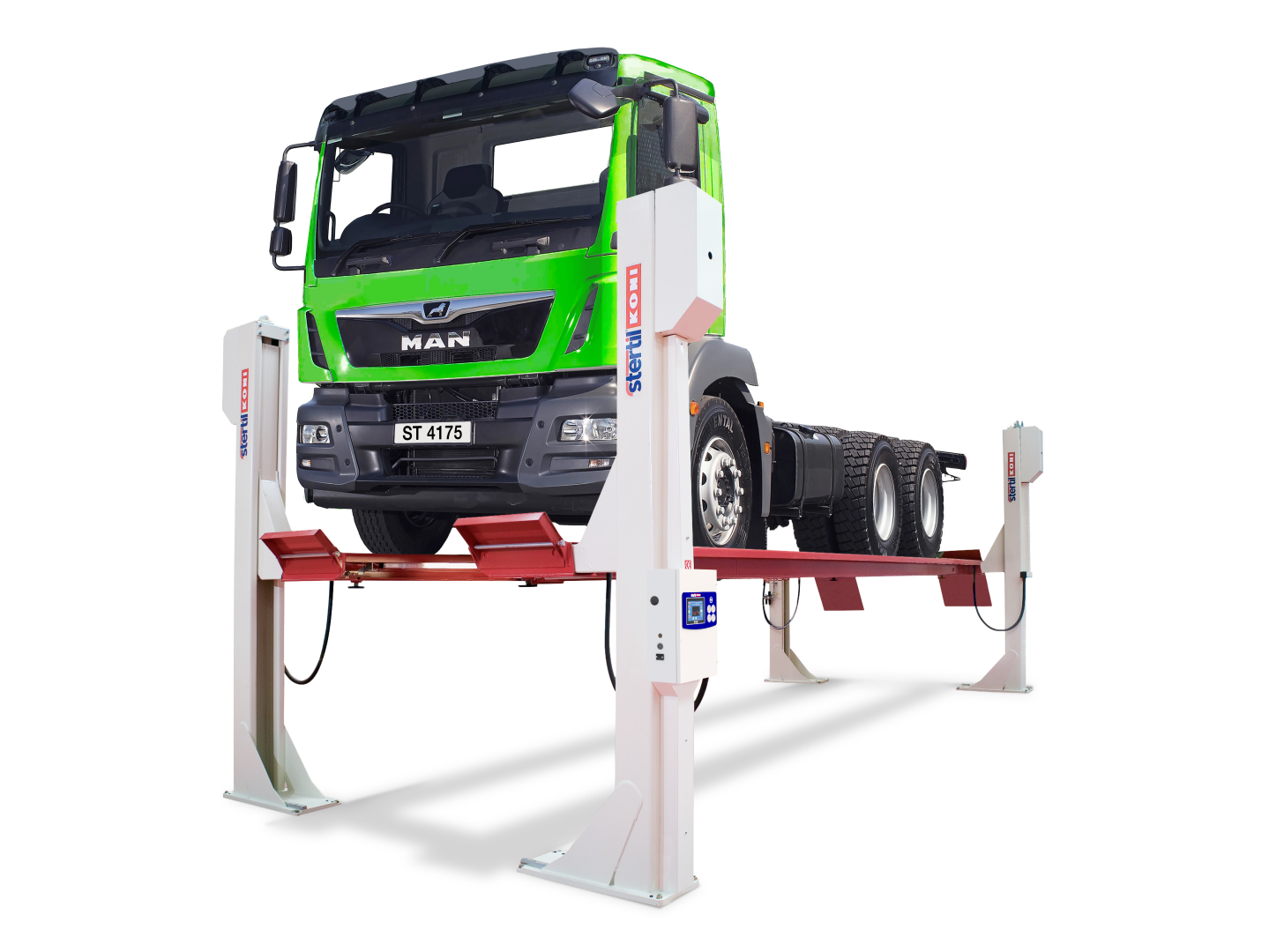

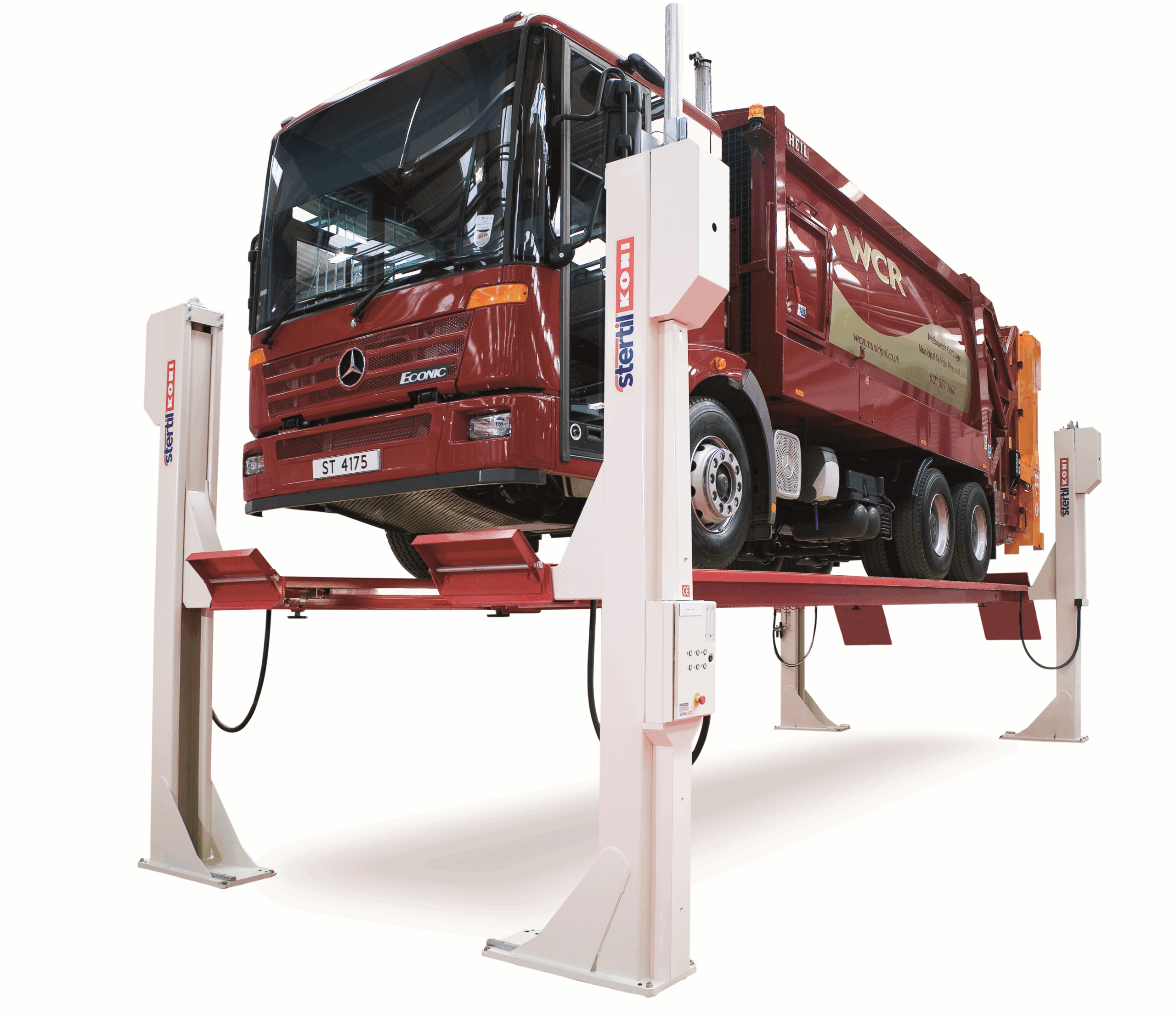

Model ST4175 for up to 17,500 kg lift and 230mm drive on height.

Model ST4250 for up to 25,000 kg lift and 285mm drive on height.

Here to help

Ultra Heavy Duty 4 Post Platform Lifts

MORE WEIGHT, HEIGHT, AND VERSITILITY, ENDURANCE

Smooth lifting and lowering of uneven loads via electronically controlled hydraulic system.
Meets international safety requirements CE, ALI-ETL, and CSA.
Install at a custom width to suit your workshop, ie axle stands, transmission jacks.
Hydraulic cylinders have replaced wearable ropes and pullies.
Hoist design without crossbeams for added vehicle height.
Gravity mechanical locking works independently of lifting system, is always enabled.

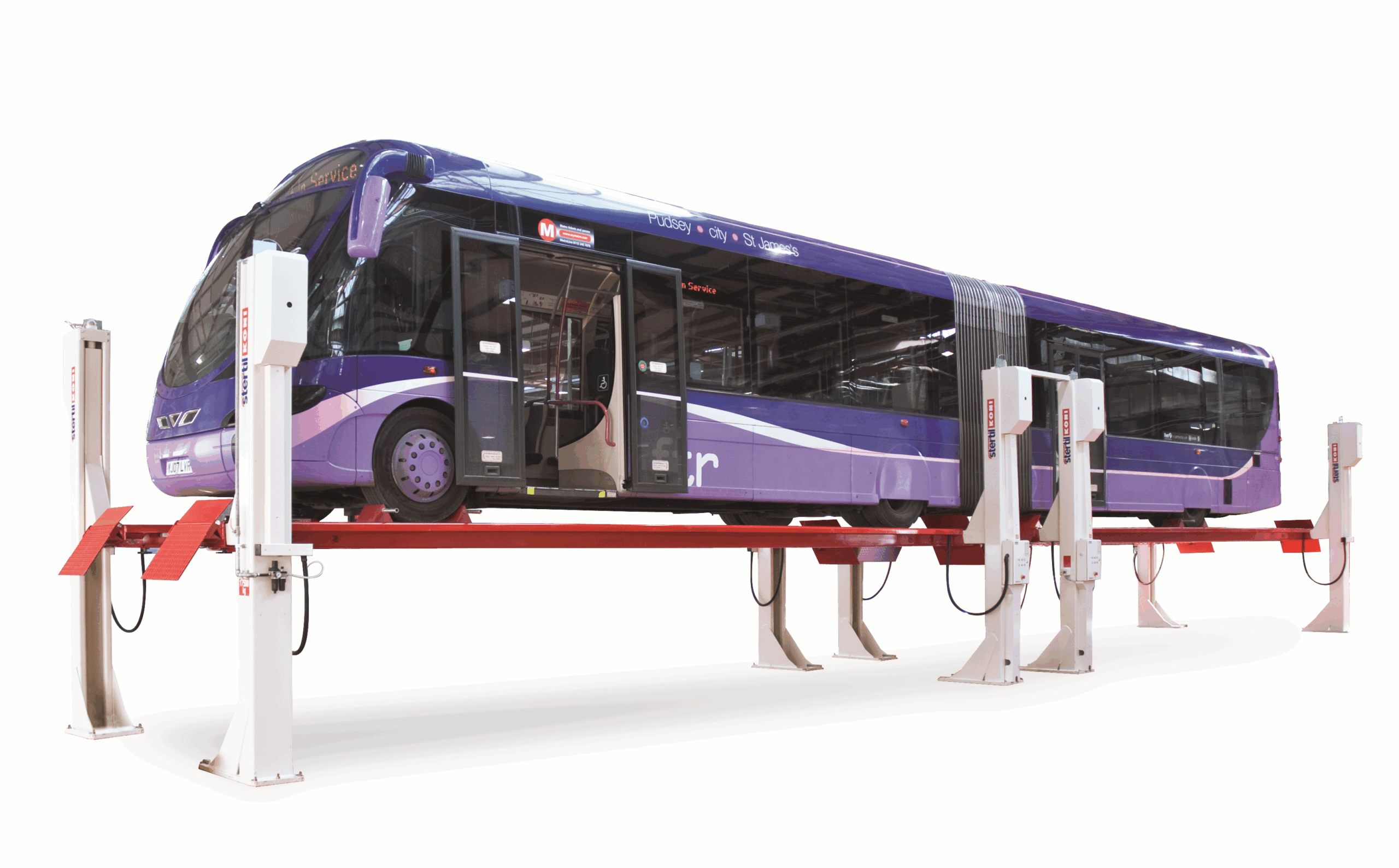

Connect two 4 post hoists for 11.5 meters of tandem lifting length via one control panel.

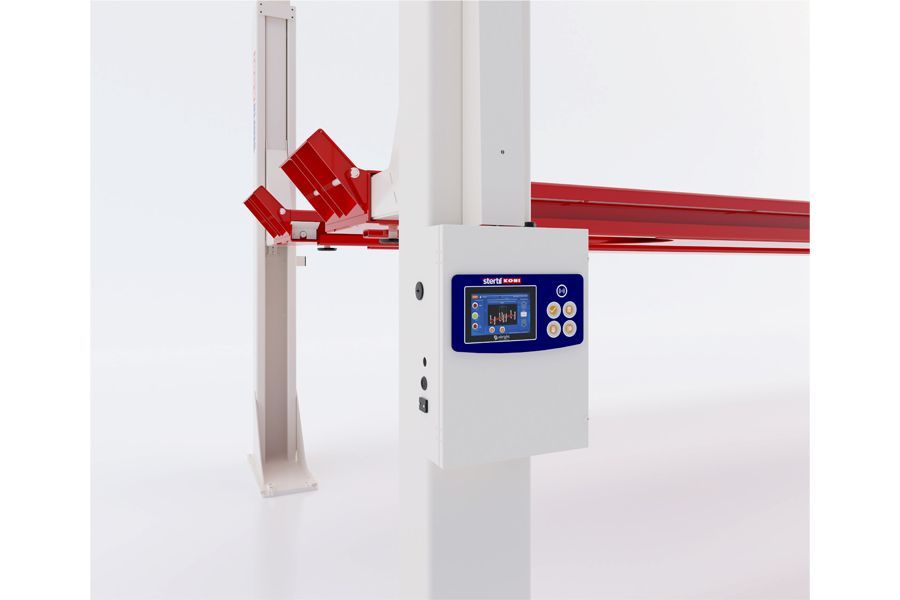

EBRIGHT TOUCHSCREEN CONTROL

Digital control panel gives visual and auditive signals.

Full colour 17.8 cm touchscreen that responds to gloved hands.

Intuitive software guides the operator.

User can configure the Smart Control System to suit their workshop.

Stertil Koni Website Product Page

SPECIFICATIONS	ST 4175	ST 4250
LIFTING CAPACITY	17,500 kg	25,000 kg
LIFTING SYSTEM	Hydraulic	Hydraulic
LIFTING HEIGHT	1,900 mm	1,900 mm
LIFTING TIME	72 seconds	72 seconds

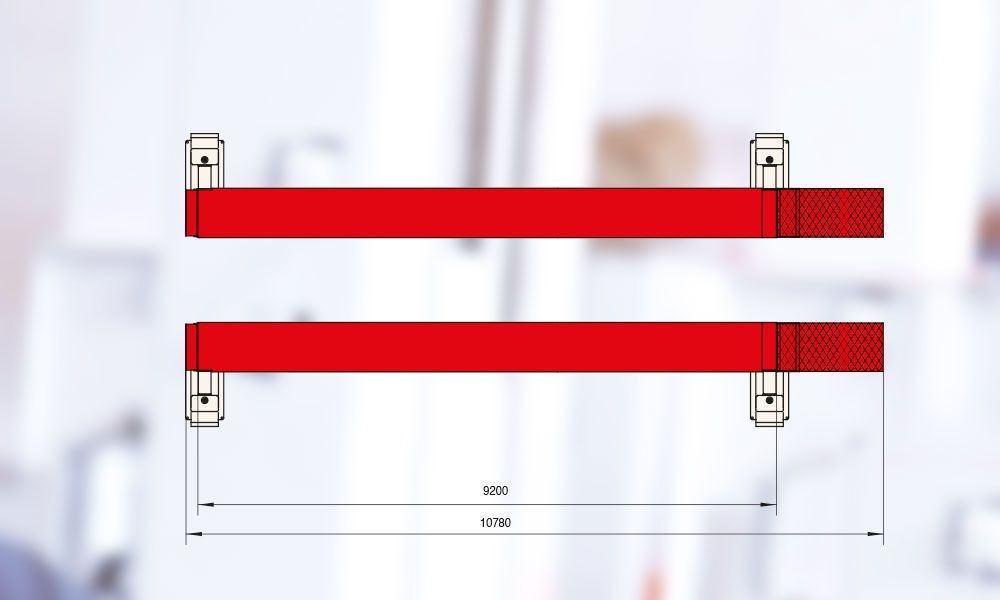

PLATFORM LENGTHS AVAILABLE
ASK YOUR SALES PERSON

6 meters

8 meters

9 meters

10 meters

11.5 meters

Brand Spotlight

Stertil Koni

Stertil-Koni is a global leader in heavy-duty vehicle lifts, known for its unmatched quality, innovation, and reliability.

Exclusively supplied in Australia by Genesis Equipment, Stertil-Koni products stand out with patented technologies such as wireless mobile column lifts, the innovative EARTHLIFT energy retrieval system, and microprocessor-controlled lifting systems. These features ensure exceptional safety, efficiency, and durability, making Stertil-Koni the trusted choice for heavy-duty lifting. With Genesis Equipment’s industry expertise and after-sales support, Stertil-Koni continues to set the benchmark for excellence in the Australian market.
