1302BAS

SKU: 1302BAS

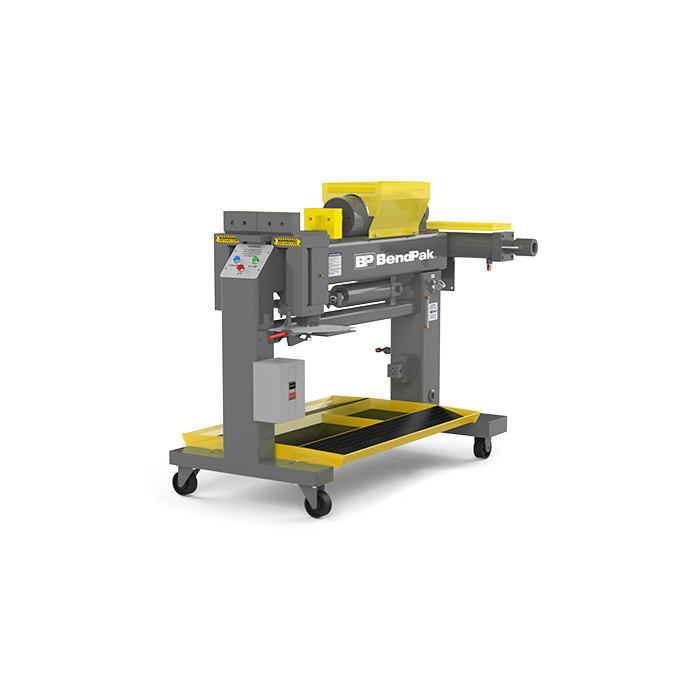

The BendPak 1302BAS Semi-Automatic Pipe Bender is engineered for high-speed and precision bending, featuring a 3-button automatic control system and quick-change bending dies. With a dual-function end-finishing unit, side-loading swager, and twist-lock tooling, this bender is perfect for high-production automotive and industrial workshops.

Semi-Automatic 3-Button Control
Quick-change bending dies
180° bending capability
Dual end-finishing units
Heavy-duty welded steel frame
Remote foot-operated controls

Here to help

1302BAS

Features

Three-button control panel allows for precise and repeatable bends. Operators can switch between manual and automatic modes for full flexibility.

Quick-Change Bending Dies for Maximum Efficiency
Twist-lock tooling and quick-release bending dies ensure rapid setup changes.
Enables fast production turnaround in high-volume fabrication shops.

180° Bending for Deep, Uniform Bends
Prevents pipe sticking or hang-ups with a relief cut design.
5″ radius bends ensure clean, professional-grade exhaust and pipework.

Heavy-Duty Hydraulic Power
60,000 lbs. of top cylinder force for seamless, high-strength bending.
Direct-drive, high-speed 4 GPM pump for quick operation.

Dual End-Finishing System for Comprehensive Fabrication
Built-in high-speed swager and internal expander.
Drop-in collar enables quick and efficient swaging.

Built to Last – Industrial-Grade Durability
6″ x 6″ x 3/8″ welded steel frame provides maximum rigidity.
Enclosed hydraulic system protects against contamination and increases longevity.

Materials & Tech

Heavy-duty welded steel frame for long-term reliability.

Chrome-molly cylinder shafts for superior performance.
NEMA-rated on/off switch with automatic overload relay protection.
Industrial casters for shop mobility and easy positioning.

COMES WITH

BendPak 1302BAS Pipe Bender
Standard die pack (1.5", 1.75", 1.875", 2", 2.25", 2.5")
High-speed clampless swager
Integrated dual-function end-finishing system

OPTIONAL

180° bending dies for deeper bends
Additional custom die packs

Specifications

SPECIFICATION	Imperial	Metric
Bending Controls	Semi-Automatic / 3-Button	–
Expander Controls	Manual	–
Frame Style	Double-Ended Expander	–
Max. Tube Capacity	3″ .095 wall	76 mm .095 wall
Max. Bending Radius	5″	127 mm
Min. Bending Radius	3.3″	89 mm
Top Cylinder Force	60,000 lbs.	27,216 kg
Hydraulic Filter	Canister	–
Motor	5 HP / 208-230 VAC / 60 Hz / 1 PH	–
Die Pack (Standard)	1.5″, 1.75″, 1.875″, 2″, 2.25″, 2.5″	–
Width	41″	1,041 mm
Depth	64″	1,626 mm
Height	26″	660 mm
Shipping Weight	1,362 lbs.	617 kg
Shipping Dimensions	70″ x 32″ x 47″	1,778 mm x 812 mm x 1,206 mm
