HD-7P | 4-Post Hoist

SKU: 5175510

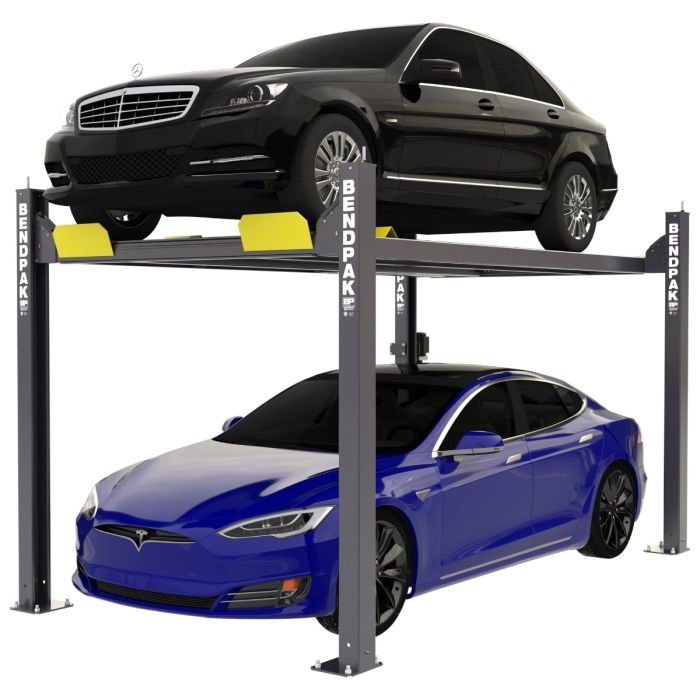

The HD-7P is a 7,000-lb. capacity four-post parking lift with a compact, narrow configuration. Ideal for homeowners or commercial spaces, it maximizes space without sacrificing functionality or style. Its high-rise design and advanced features make it a premium choice for parking efficiency.

7,000-lb. lifting capacity
Narrow, compact design for tight spaces
Multi-level locking positions for secure parking
Dual-hub cable sheaves for enhanced durability
Low-deck runways for accommodating low-profile vehicles

Here to help

Features

The HD-7P offers a space-saving narrow configuration, making it perfect for tight residential garages or commercial spaces.

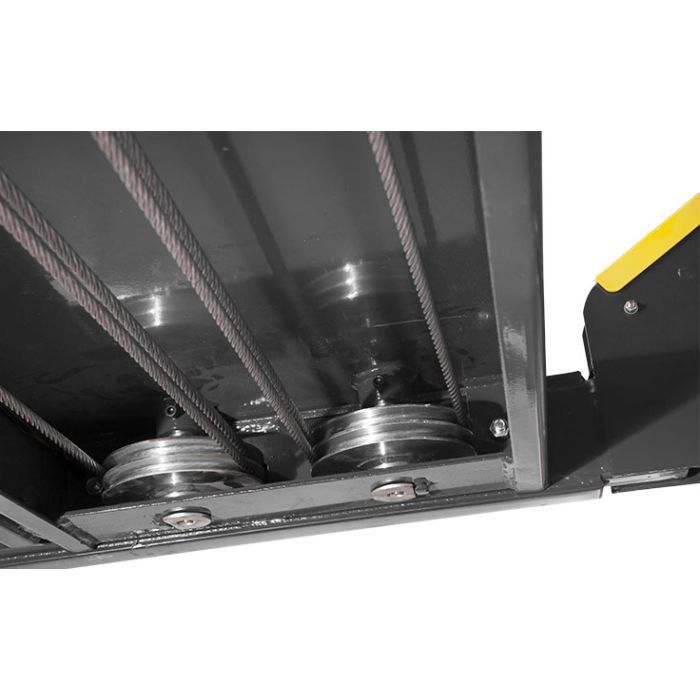

Dual-Hub Cable Sheaves
Engineered with doubled cable-run surface areas for added safety and durability, ensuring long-lasting performance.

Multi-Level Locking Positions
Four safety locks automatically engage at multiple heights, ensuring vehicles are securely parked at any level.

Integrated Design
All lifting cables, safety latches, and airlines are enclosed within the lift columns for improved aesthetics and protection.

Low-Deck Runways and Longer Approach Ramps
Accommodates low-profile vehicles with ease, minimizing the risk of undercarriage damage during loading.

Materials & Tech

The HD-7P is built with heavy-duty aircraft cables, oversized base plates, and self-lubricating components for a long-lasting, low-maintenance solution.

High-speed electric/hydraulic power system
Push-button pneumatic safety release
Optional caster kit for portability

Comes with

Rugged 1.25” roller axles for enhanced stability
Adjustable lock ladders for versatile parking heights

Optional

Rolling jack with a 4,500-lb. capacity for additional lifting functionality

Specifications

Capacity	Imperial	Metric
Lifting Capacity	7,000 lbs	3,175 kg
Max Capacity / Front Axle	3,500 lbs	1,588 kg
Max Capacity / Rear Axle	3,500 lbs	1,588 kg

Rise	Imperial	Metric
A – Min. Runway Height	5″	127 mm
B – Max. Rise	82″	2,083 mm
C – Max. Lifting Height	85.75″	2,178 mm
Time to Full Rise	35 seconds

Outside Dimensions	Imperial	Metric
D – Overall Width	100.25″	2,546 mm
E – Outside Length	174″	4,420 mm
F – Overall Length	200.5″	5,093 mm
G – Height of Columns	100″	2,540 mm

Inside Dimensions	Imperial	Metric
H – Width Between Columns	90.25″	2,292 mm
I – Drive-Thru Clearance	76.5″	1,943 mm

Runways	Imperial	Metric
J – Runway Width	19″	483 mm
K – Length of Runways	158.25″	4,020 mm
L – Width Between Runways	34.5″	876 mm
M – Runway Centerline	56.5″	1,435 mm
N – Outside Edge of Runways	75.5″	1,918 mm

Minimum Wheelbase	Imperial	Metric
Rated Capacity	115″	2,921 mm
75% Capacity	100″	2,540 mm
50% Capacity	85″	2,159 mm
25% Capacity	70″	1,778 mm

Locking	Imperial	Metric
Locking Positions	17	–
Lock Spacing	Every 4″	102 mm

Power Unit
Motor	220 VAC / 60 Hz / 1 Ph
Noise	45 dB

Shipping
Weight	1,756 lbs	796 kg
Dimensions	167″ x 22″ x 28″	4,242 mm x 558 mm x 711 mm
