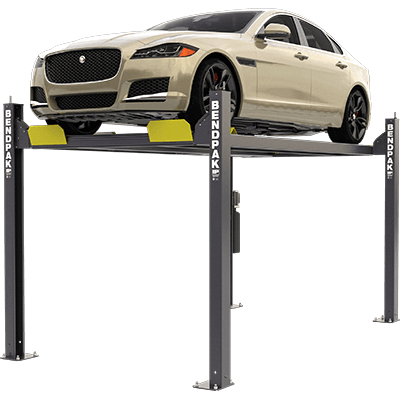

HD-7W-Four-Post-Lift-High-Lift-5175120-BendPak

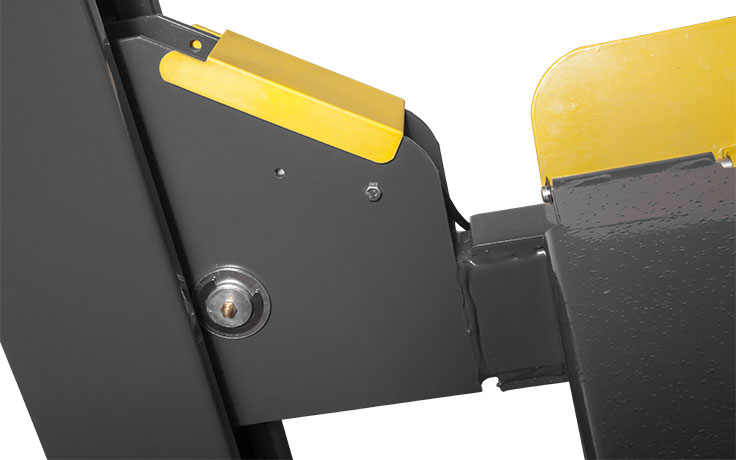

BendPak-Four-Post-Lift-Cross-Member-Carriage-Design

BendPak-4-Post-Lift-Slack-Safety-Cable-System

HD-7W | 4-Post Hoist

SKU: 5175120

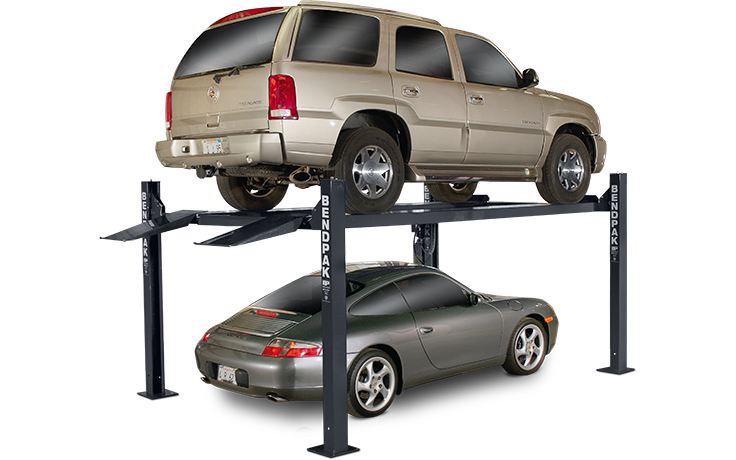

The HD-7W is a dependable, wide-configuration four-post lift with a 7,000-lb. capacity. Designed to handle sports cars, sedans, light-duty trucks, and SUVs, it offers versatility and compact convenience, making it ideal for garages with limited space.

7,000-lb. lifting capacity
Wide drive-thru clearance
Durable aircraft-grade wire cables
Multi-position safety locks
Compact design with longer approach ramps

Here to help

Features

The HD-7W accommodates various vehicle sizes, including sports cars and light-duty trucks, while its compact design saves garage space.

Heavy-Duty Aircraft Cables
Crafted from stainless steel, the cables are rated at 14,400 lbs. each for enhanced durability and safety, exceeding the lift’s maximum capacity by 822%.

Wide Drive-Thru Clearance
With 100.25″ of space between the columns and a drive-thru clearance of 86.5″, this lift easily accommodates wider vehicles.

Dual-Hub Wire Rope Sheaves
Oversized dual-hub sheaves reduce wear and tear on the lift’s axles and wire ropes, ensuring smooth operation and a longer lifespan.

Low-Deck Runways with Non-Skid Surface
Low-profile, 4.5″ runways with a non-skid surface make it easy to load low-riding vehicles without the risk of undercarriage damage.

Integrated Safety Features

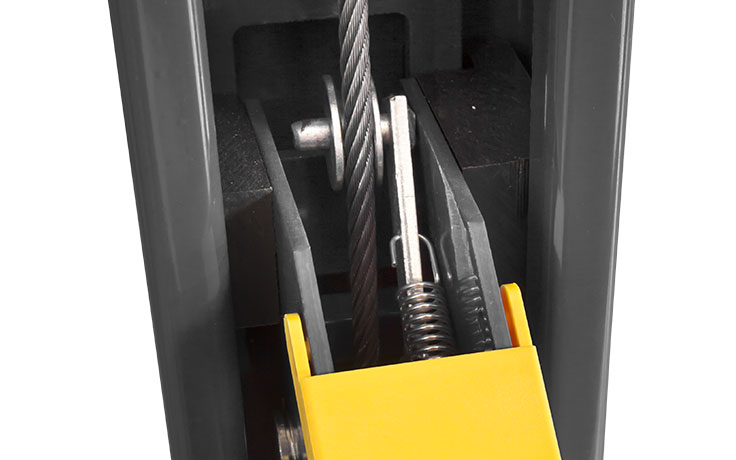

The multi-position locking system automatically secures the lift at various heights, and a secondary slack-cable device ensures additional safety during operation.

Electric-Hydraulic Power System
Maintenance-free, the power system integrates seamlessly into the lift structure, providing reliability and ease of use.

Materials & Tech

Built with rugged 1.25″ roller axles and oversized self-lubricating cable rollers, the HD-7W ensures smooth, low-maintenance operation.

Push-button pneumatic safety release
Adjustable lock ladders
Single hydraulic cylinder mounted under the runway

Comes with

Long approach ramps for safe loading of low-riding vehicles
Fully enclosed critical components for safety and aesthetics

Optional

Rolling jack with 4,500-lb. capacity available for advanced service needs

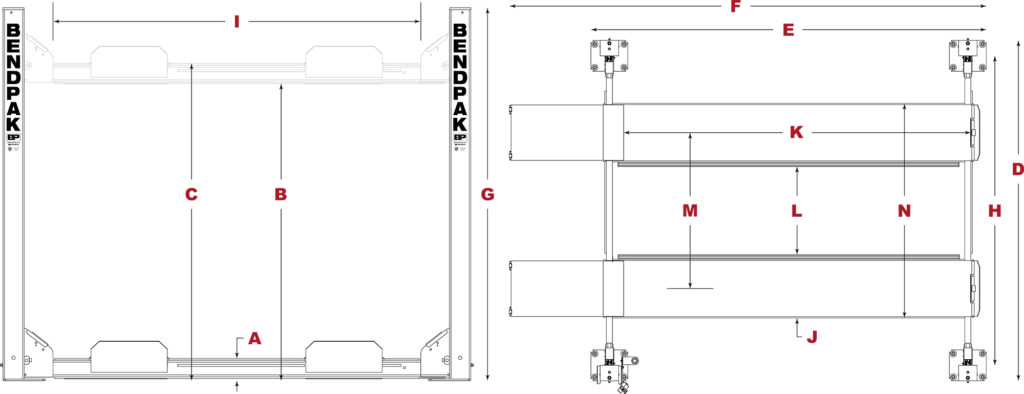

Specifications

Capacity	Imperial	Metric
Lifting Capacity	7,000 lbs	3,175 kg
Max Capacity / Front Axle	3,500 lbs	1,588 kg
Max Capacity / Rear Axle	3,500 lbs	1,588 kg

Rise	Imperial	Metric
A – Min. Runway Height	5″	127 mm
B – Max. Rise	82″	2,083 mm
C – Max. Lifting Height	86.5″	2,197 mm
Time to Full Rise	35 seconds

Outside Dimensions	Imperial	Metric
D – Overall Width	110.25″	2,800 mm
E – Outside Length	174″	4,420 mm
F – Overall Length	200.5″	5,093 mm
G – Height of Columns	100″	2,540 mm

Inside Dimensions	Imperial	Metric
H – Width Between Columns	100.25″	2,546 mm
I – Drive-Thru Clearance	86.5″	2,197 mm

Runways	Imperial	Metric
J – Runway Width	19″	483 mm
K – Length of Runways	158.25″	4,020 mm
L – Width Between Runways	35″ or 41″	889 mm or 1,041 mm
M – Runway Centerline	56.75″ or 63″	1,441 mm or 1,600 mm
N – Outside Edge of Runways	75.75″ or 82″	1,924 mm or 2,083 mm

Minimum Wheelbase	Imperial	Metric
Rated Capacity	115″	2,921 mm
75% Capacity	100″	2,540 mm
50% Capacity	85″	2,159 mm
25% Capacity	70″	1,778 mm

Locking	Imperial	Metric
Locking Positions	17	–
Lock Spacing	Every 4″	102 mm

Power Unit
Motor	220 VAC / 60 Hz / 1 Ph
Noise	45 dB

Shipping
Weight	1,756 lbs	796 kg
Dimensions	167″ x 22″ x 28″	4,242 mm x 559 mm x 711 mm
