SKU: 5175267

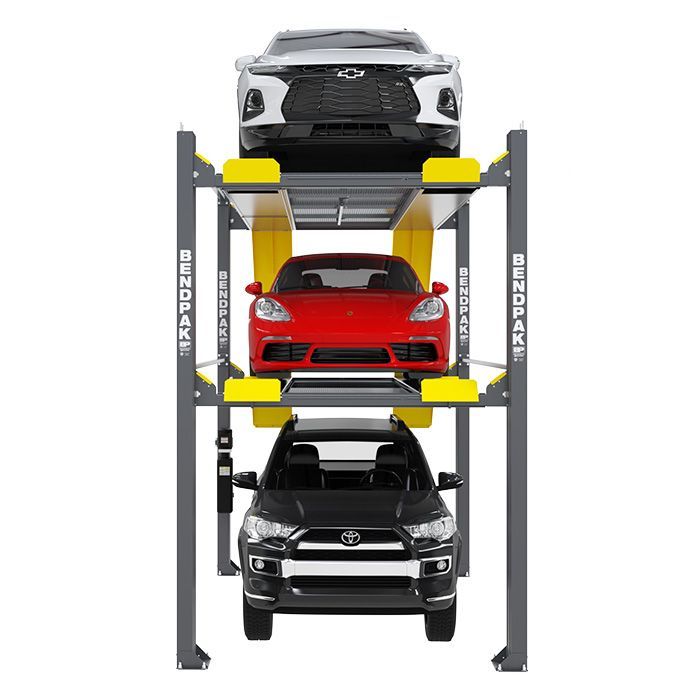

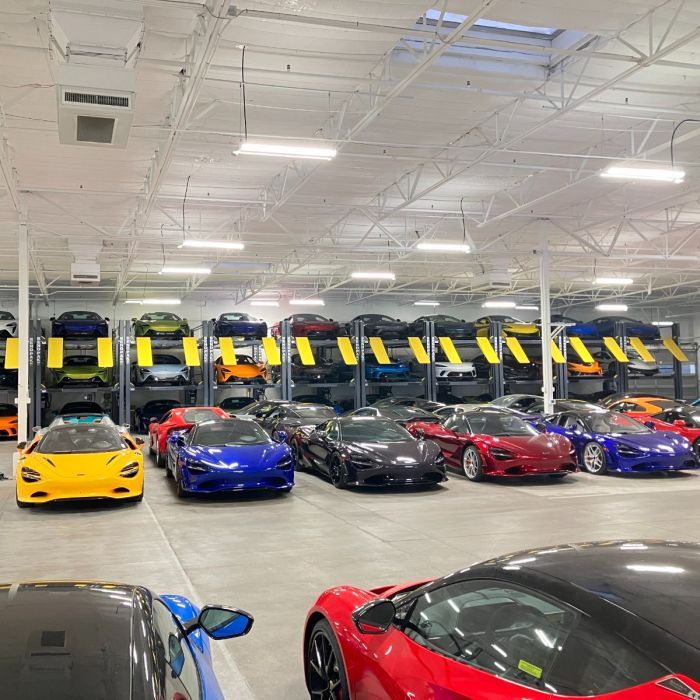

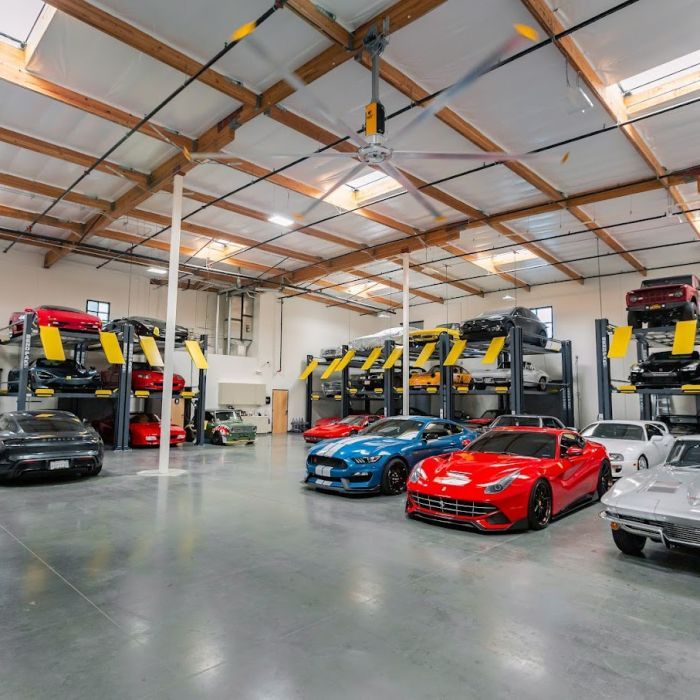

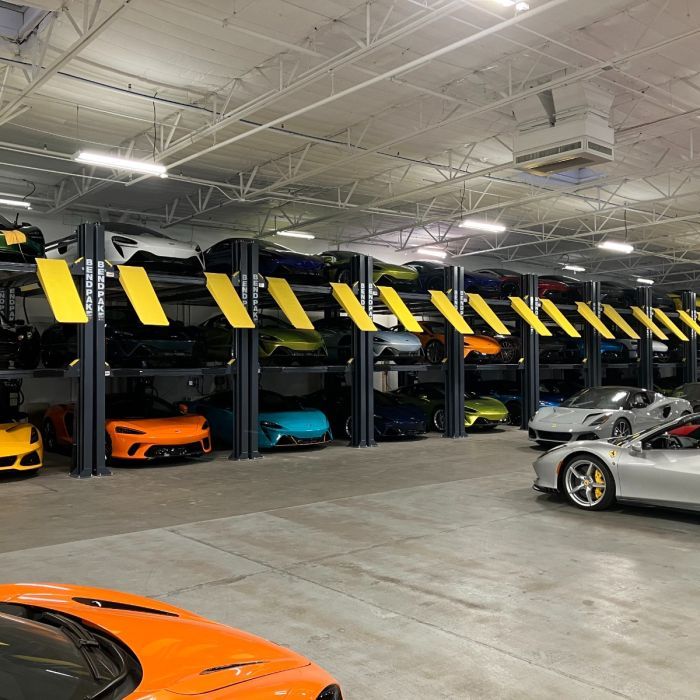

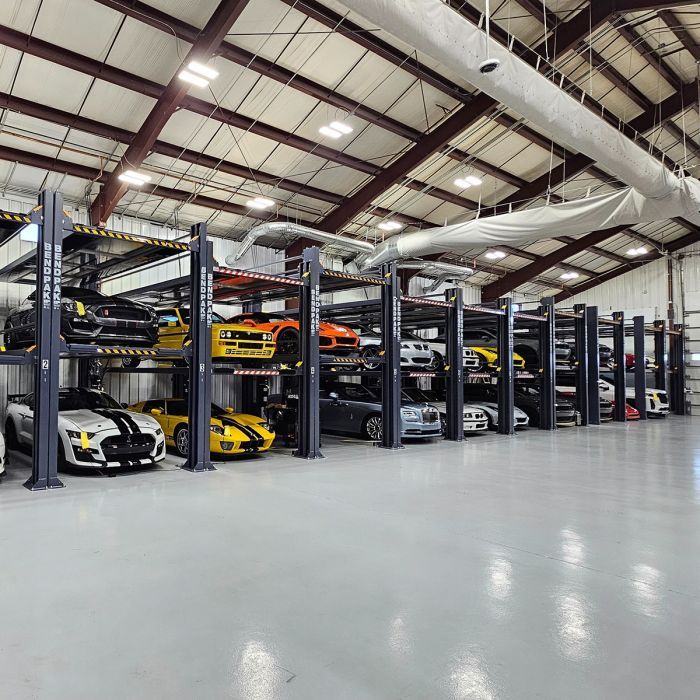

The BendPak HD-973PX is an innovative tri-level four-post parking lift, designed to store three vehicles in a single parking space while accommodating longer and taller vehicles. With an extended length and taller rise than the HD-973P, this model supports a 9,000 lb (4,082 kg) lower deck capacity and a 7,000 lb (3,175 kg) upper deck capacity. Whether for residential garages, dealerships, commercial parking structures, or auto workshops, this lift offers maximum efficiency and versatility.
Features
Independent Lifting Platforms for Maximum Flexibility
Unlike traditional car stackers, this hoist features independent platform operation, allowing vehicles to be accessed individually.
Extended Platform for Long & Wide Vehicles
With 208.5″ (5,296 mm) runways and an increased height clearance, this model accommodates full-size trucks, SUVs, and extended-wheelbase vehicles.
Robust Hydraulic System & High-Strength Hoisting Cables
A powerful hydraulic cylinder with reinforced lifting cables ensures smooth, safe, and reliable lifting.
Multi-Level Safety Locks & Anti-Fall Protection
The HD-973PX includes spring-loaded safety locks spaced every 4 inches, along with redundant anti-fall devices for unmatched security.
Heavy-Duty Steel Construction & Powder-Coated Finish
This hoist is built with industrial-grade welded steel and a durable powder coat finish, ensuring long-term durability in both indoor and outdoor environments.
Materials & Tech
Optional
Top Platform Specifications
| Capacity & Dimensions | Imperial | Metric |
|---|---|---|
| Lifting Capacity | 7,000 lb | 3,175 kg |
| Max. Front Axle Capacity | 3,500 lb | 1,588 kg |
| Max. Rear Axle Capacity | 3,500 lb | 1,588 kg |
| Drive-Thru Clearance | 86.5″ | 2,197 mm |
| Max. Rise | 151.5″ | 3,849 mm |
| Max. Lifting Height | 156″ | 3,988 mm |
| Lifting Time to Max. Rise | 90 sec | |
| Physical Dimensions | Imperial | Metric |
|---|---|---|
| Overall Width | 110.5″ | 2,807 mm |
| Overall Length | 252.25″ | 6,409 mm |
| Column Height | 169.75″ | 4,312 mm |
| Locking | Imperial | Metric |
|---|---|---|
| Locking Spacing | Every 4″ | |
| Locking Positions | 34 | |
| Power Requirements | ||
|---|---|---|
| Motor | 220V AC, 60 Hz, 1 Ph | |
Bottom Platform Specifications
| Capacity & Dimensions | Imperial | Metric |
|---|---|---|
| Lifting Capacity | 9,000 lb | 4,082 kg |
| Max. Front Axle Capacity | 4,500 lb | 2,041 kg |
| Max. Rear Axle Capacity | 4,500 lb | 2,041 kg |
| Drive-Thru Clearance | 86.5″ | 2,197 mm |
| Max. Rise | 82″ | 2,083 mm |
| Max. Lifting Height | 84.5″ | 2,210 mm |
| Lifting Time to Max. Rise | 50 sec | |
| Physical Dimensions | Imperial | Metric |
|---|---|---|
| Overall Width | 110.5″ | 2,807 mm |
| Overall Length | 252.25″ | 6,409 mm |
| Column Height | 169.75″ | 4,312 mm |
| Locking | Imperial | Metric |
|---|---|---|
| Locking Spacing | Every 4″ | |
| Locking Positions | 16 | |
| Power Requirements | ||
|---|---|---|
| Motor | 220V AC, 60 Hz, 1 Ph | |
ShippingImperialMetric
| Shipping Weight | 5,932 lbs | 2,691 kg |
