SKU: 5175969
BendPak’s largest-capacity alignment lift, the HDS-18EA, is designed for handling trucks and large SUVs with ease. Built with free-floating slip plates and galvanized steel turn plates, this four-post alignment hoist ensures precise wheel alignment for vehicles up to 18,000 lbs (8,165 kg).
Features

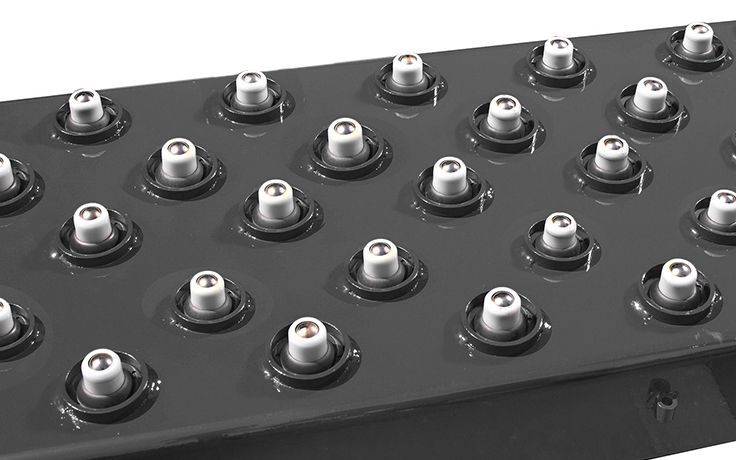

Slip Plates for Effortless Adjustments
Multi-caster slip plates allow vehicles to move freely for precise four-wheel alignments, eliminating suspension flex.
Deluxe Turnplates for Seamless Positioning
Galvanized, corrosion-resistant turn plates are housed in dual recessed pockets, ensuring effortless adjustments.
Supersized Dual-Hub Cable Sheaves
Large 12” (305mm) diameter cable sheaves with 4” (102mm) sheave axles enhance durability and reduce maintenance.
Aircraft-Quality Lifting Cables
Four 16mm diameter, high-tensile lifting cables provide robust lifting power and superior longevity.
Adjustable Locking Positions for Custom Heights
Multiple locking positions allow for optimal work height adjustments, enhancing user comfort and safety.
Built-In Lubrication for Smooth Operation
Integrated grease nipples ensure seamless lubrication, extending the life of moving components.
Flow Restrictor for Controlled Descent
BendPak’s hydraulic flow divider ensures a smooth, even descent, even in the event of hydraulic failure.
Spring-Loaded Safety Locks
Spring-loaded safety locks automatically engage at each locking position for additional security.
Pneumatic Lock Release System
A simple push-button control releases all four safety locks simultaneously, streamlining operations.
Secondary Lock System for Extra Safety
A cable slack detection system ensures safe operation, immediately engaging in case of cable tension loss.
Internally Routed Cables & Airlines
All hydraulic lines, airlines, and cables are neatly routed internally, protecting components from dirt and wear.
Electric-Hydraulic Power System
The ergonomic power control unit features an intuitive layout for seamless operation.
Extended Approach Ramps for Low Vehicles
Longer approach ramps make it easy to load low-clearance sports cars and large trucks/SUVs.
Flexible Protective Conduit
A rugged protective conduit shields all hydraulic hoses and airlines from external damage.
Optional Rolling Bridge Jacks
Upgrade with rolling bridge jacks to turn the HDS-18EA into a multi-functional service lift for tire and brake work.
Materials & Tech
Inclusions
| CAPACITY | lbs | kgs |
| Lifting Capacity | 18,000 lbs | 8,165 kg |
| Max Front Axle Capacity | 9,000 lbs | 4,082 kg |
| Max Rear Axle Capacity | 9,000 lbs | 4,082 kg |
| RISE | inches | mm |
| Min. Runway Height | 11.5” | 292 mm |
| Max. Lifting Height | 71.5” | 1,816 mm |
| OUTSIDE DIMENSIONS | inches | mm |
| Overall Width | 153.5” | 3,899 mm |
| Overall Length | 312.5” | 7,938 mm |
| Drive-Thru Clearance | 109” | 2,769 mm |
| RUNWAY | inches | mm |
| Runway Width | 22” | 559 mm |
| WHEELBASE | inches | mm |
| Min. Wheelbase for Rated Capacity | 185” | 4,699 mm |
| LOCKING | |
| Locking Positions | 13 |
| MOTOR | |
| Motor | 220 VAC / 60 Hz / 1 Ph |
| SHIPPING | lbs | kgs |
| Shipping Weight | 6,790 lbs | 3,079 kg |
