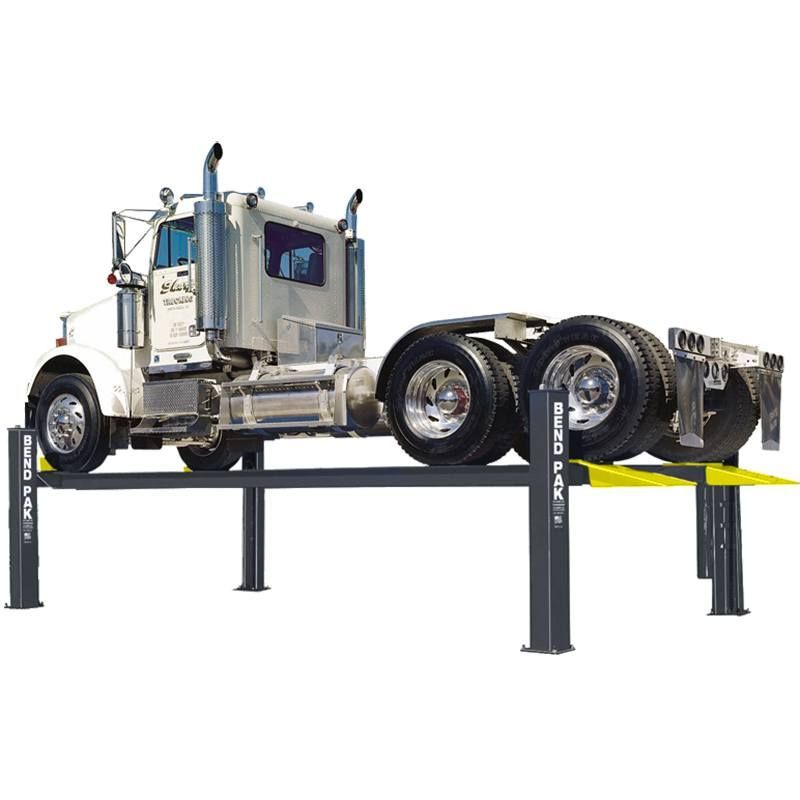

4 Post Bus and Caravan Hoist HDS-40

The Only Heavy-Duty Car Lift You’ll Ever Need

An HDS-40 four-post lift lets you wrench on absolutely massive vehicles. Nothing in BendPak’s lineup has this much brute force to accompany the same features found on our other heavy-duty lifts. That means the ergonomic controls, massive sheaves, over-engineered lift components and aircraft-quality cables are all here to guarantee the ultimate lifting experience.

Extended runways

Truck lifts with longer runways are less prone to causing accidental vehicle damage. For our largest 4-post lift, we make sure the most massive 40K trucks and commercial vehicles can safely make their way onto the ramps for service.

Dual-hub cable sheaves

Truck lift sheaves are made 12” in diameter with 4” diameter sheave axles and are necessarily over-engineered for safer lifting. They’re low-maintenance and low-cost for the entire lifespan of your lift. All four sheaves rotate in perfect synchronization to achieve a smooth, even lift, 100% of the time.

Heavy-duty aircraft cable

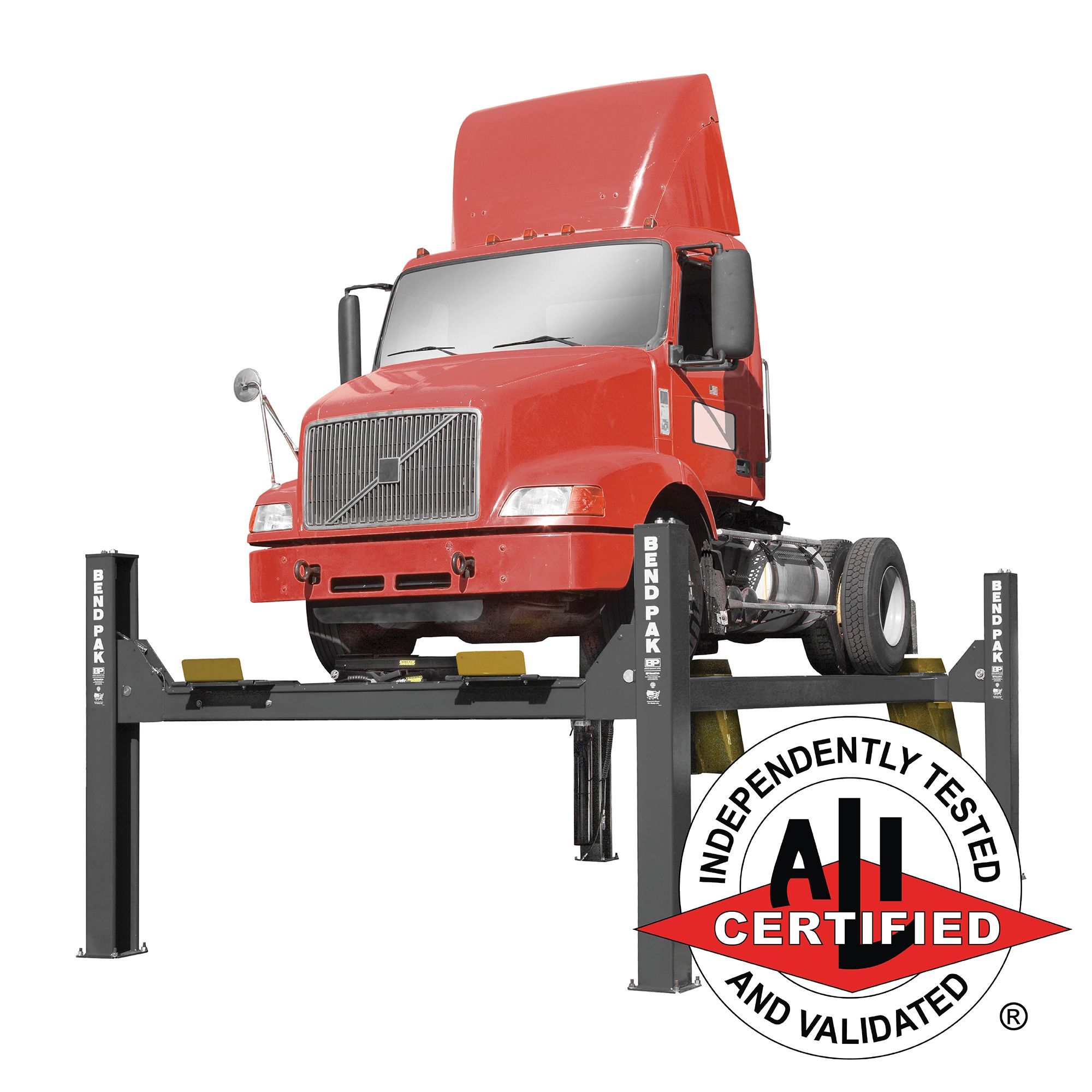

Our 1/2” diameter, 6 x 25 stainless-steel lifting cables have a 6,350kg breaking strength per cable. The four cables alone, without the hydraulic cylinder, offer more than enough power to safely lift your 18,144 kg truck. We over-engineer our components and proudly wear our ALI Certification on the columns of our four post lifts for all the world to see

Built-in lubrication

To keep your cables sliding gently through the sheaves, self-lubricating grease nipples are fitted through the sheave and sheave axle for many years of optimum performance. We keep the grease where it belongs: along the sheave, not on your floor.

Flow restrictor

A flow restrictor is built in to the hydraulic cylinder, providing a safe descent in the rare (and very unlikely) event of a catastrophic hose rupture. Even in the worst-case scenario, your truck lift will gently descend and safely touch down on the ground. Chances are you’ll never have to see this feature at work, but we engineered it just in case.

Large base plates

Truck lift base plates are made a little wider than the bases of our lighter-duty models: 12 x 12 plate dimensions are sturdy and can be easily bolted into suitable concrete flooring for years of extreme security. No wobbles, no worries.

Spring-loaded safety locks

As the lift ascends, adjustable safety locks audibly click into place at multiple levels. This lets you choose your preferred service lifting point and accommodate for uneven floors. 13 lock positions make for an incredibly safe and versatile four-post lift.

Push-button pneumatic lock release

A one-push pneumatic release simultaneously disengages all four locks for a rapid descent that never loses its balance. Stainless steel and aluminum pneumatic cylinders are aircraft-quality, tested and overloaded right here in our own California facilities to ensure optimum functionality and soundness of design. Our quality control experts always listen for a smooth hiss that accompanies the release and descent of every healthy lift we manufacture.

Secondary lock system

A cable-slack detection device acts as a secondary lock in case of a mechanical failure on the lift. Mechanical failures on any BendPak four-post lift are uncommon but more likely to occur than hydraulic failures, given the nature and operation of moving parts. Other lift companies do not incorporate slack-cable detection and thereby put your lift at risk; if one of your posts experiences cable slack, imagine the catastrophe that would follow if it continued to descend unevenly. We don’t like to think about it, so we eliminated the concern: in case of any cable slack, a BendPak lift shuts down completely, keeping you, your lift and your vehicle safe until the problem can be resolved.

Integrated design

All components on this four-post lift are internally routed within the structure: cables, sheaves, axles, etc. Even the hydraulic cylinder is hidden underneath the lift. This ensures a cleaner product that’s well-suited for side-by-side stacking—no cumbersome components to knock into each other when multiple units are installed. It also makes for a better-looking lift. Not to mention, cables and sheaves perform better when they aren’t exposed to dirt, grime and other shop conditions that might affect performance.

Adjustable height locking positions

9 locking positions mean you have more versatility with where you position the ramps. Most other companies only provide 10 positions on their four-post lift models. It might sound minor, but we knows inches make a big difference when it comes to operator comfort.

Electric-hydraulic power system

A lift is only as good as the hydraulic power unit that keeps it running. With ergonomic one-push button control, a stabilizing pressure relief valve and a host of other critical design features (i.e. protective weatherproof casing), every hydraulic power pack we manufacture ensures a clean run, even during busy hours of heavy use.

Flexible protective conduit

To keep all cables safe from wear, and to prevent accidental shocks, protective tubing wraps around all BendPak 4-post lift cables and airlines. The layered conduit is non-conducive to electricity and durable enough to withstand heavy use in busy commercial shops.

Rolling bridge jacks

Wheel service on full-size trucks and commercial vehicles can be tricky without the right equipment. BendPak offers a variety of rolling bridge jacks to support virtually every vehicle type. Hydraulic pumps come standard with each bridge jack, along with SUV/truck adapters you’re going to need in order to reach deeper undercarriages. Never skimp on quality when it comes to heavy-duty lifting (or any lifting, for that matter). Talk to one of our sales team to make sure your investment is well-equipped to handle everything your customers might throw your way.

Choose extended length

18,144 kgs takes a lot of muscle to lift, and many vehicles of this caliber are longer than our standard-length series of four-post lifts can accommodate. If you want to be prepared for the longest and heaviest, you need the biggest and baddest. At a whopping 6.2m in length, the HDS-40 is built for heavy duty workloads. Slap a truck on it and get to work, no sweat.
