Jumbo Lift 3500

SKU: JLB035.0021000D-7016

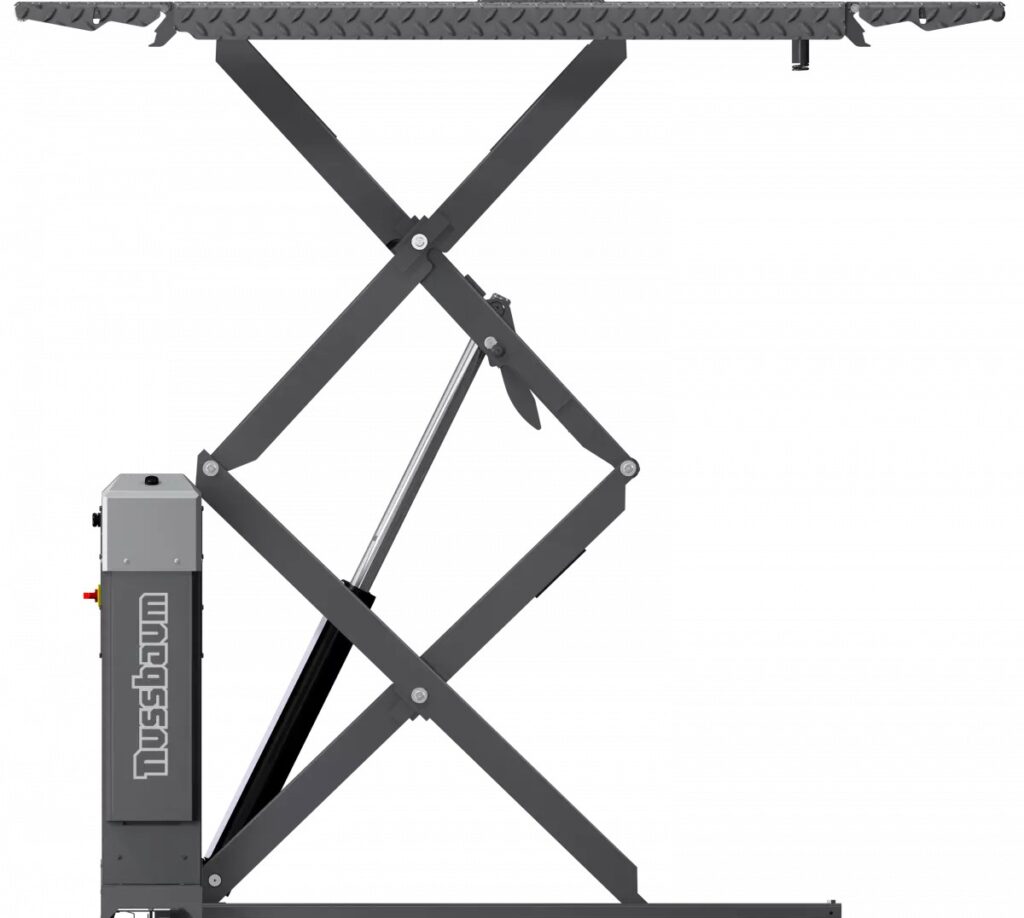

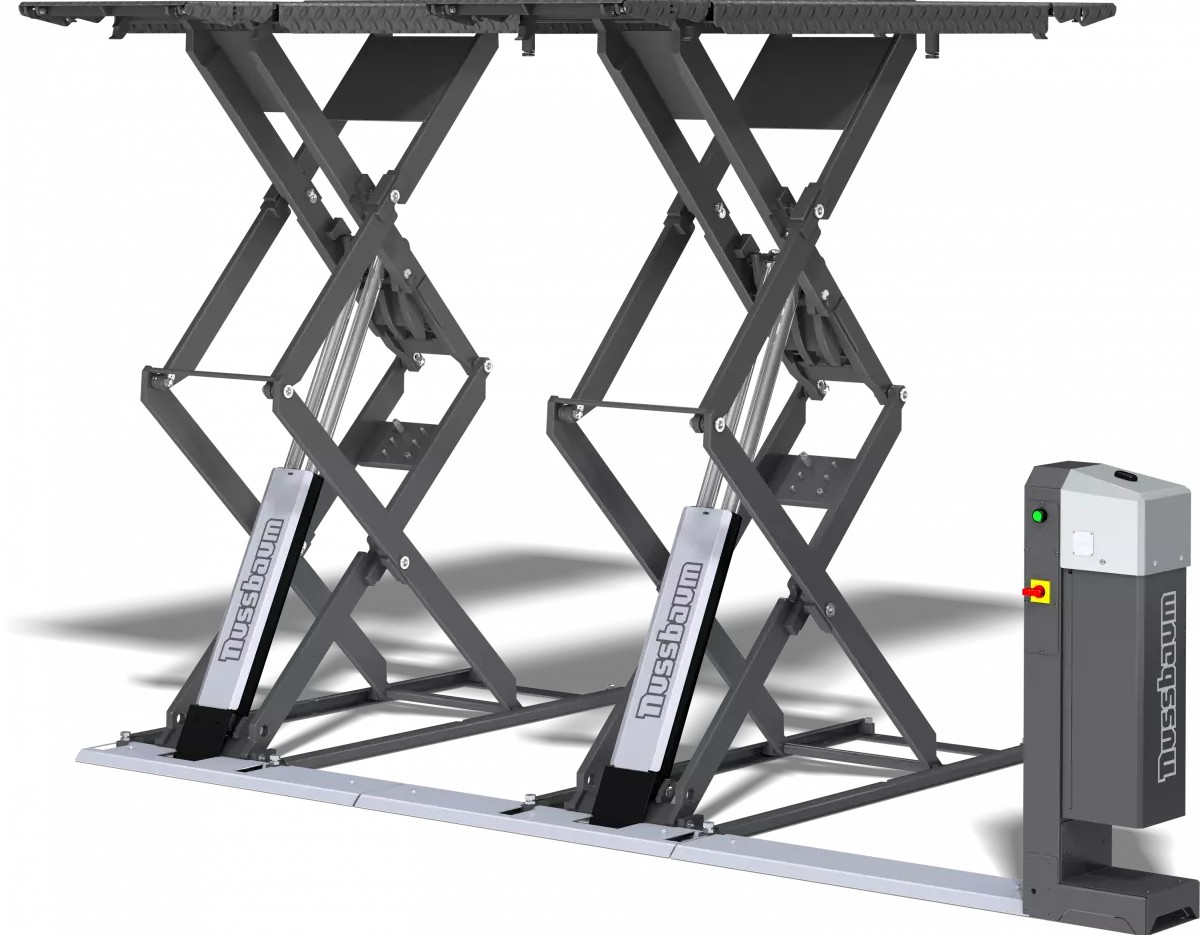

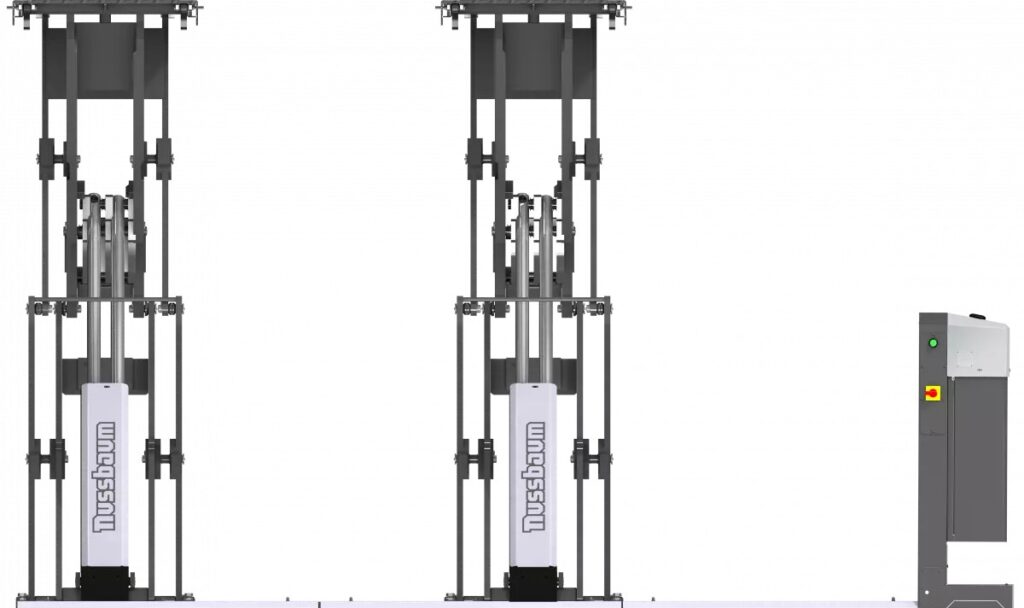

The JUMBO LIFT 3500 NT hydraulic double scissor lift with a load capacity of 3500 kg is the perfect all-round lift for the automotive workshop where speed, flexibility and reliability are required. With its small space requirement, its high lifting height of 2000 mm, the length-adjustable mounts and the flat design, it is the lifting platform that should not be missing in any professional car workshop. Whether for changing tires, changing the oil, working on the engine or receiving, for low-lying sports cars, SUVs or vans, the JUMBO LIFT 3500 NT is ready to be lifted and lifted at lightning speed. The access ramps can be unlocked and locked with one hand to extend or shorten the pick-up areas. The JUMBO LIFT 3500 NT is developed and manufactured by Nussbaum at its main plant in Kehl-Bodersweier in Baden-Württemberg.

Here to help

Jumbo Lift 3500

Features

All hydraulic JUMBO lifts are equipped with two redundant hydraulic circuits as standard: Nussbaum-‘s patented NT hydraulic technology is complemented by HyperFlow® technology, which was introduced in 2016 and is unique in the world. HyperFlow® automatically balances the pressure of the hydraulic circuits at each full stroke. There is no need for manual balancing and maintenance.

Lift heavy loads, quickly and safely

Lifting time/lowering time: 35 seconds
Load capacity: 3500 kg
Effective lifting height of 2000 mm

Flat construction and completely adjustable for each scenario

drive-up height of only mm
Length-adjustable mount – ramps can be locked and unlocked with one hand
Flexible mounting: Adjustable width, no compressed air access required
360° access

Two possible installation types

1: Above-ground
2: Underfloor

Triple guaranteed quality: power unit, hydraulic cylinder and the complete lift are tested before shipment

Designed and manufactured in Germany
Recommended by BMW

Materials & Tech

Lifting platform with powder-coated direct hitch, CE-STOP, Compact sub-oil unit, Left or right driving direction possible, Length of hydraulic lines 1 m, 1 set = 4 pieces superductile polymer pads 50 x 150 x 340 mm

Specifications

GENERAL SPECIFICATIONS
Lifting Capacity	3500Kg
Length adjustable mounts	1460-2158mm
Lifting/lowering time	35 second
Lifting height	2000mm
Recommended install width	2020mm
Drive up height	105mm
Rail width	610mm
Electrical connection	3 Ph, 400 v, 50 Hz
Power	3KW
