SKU: 0034748

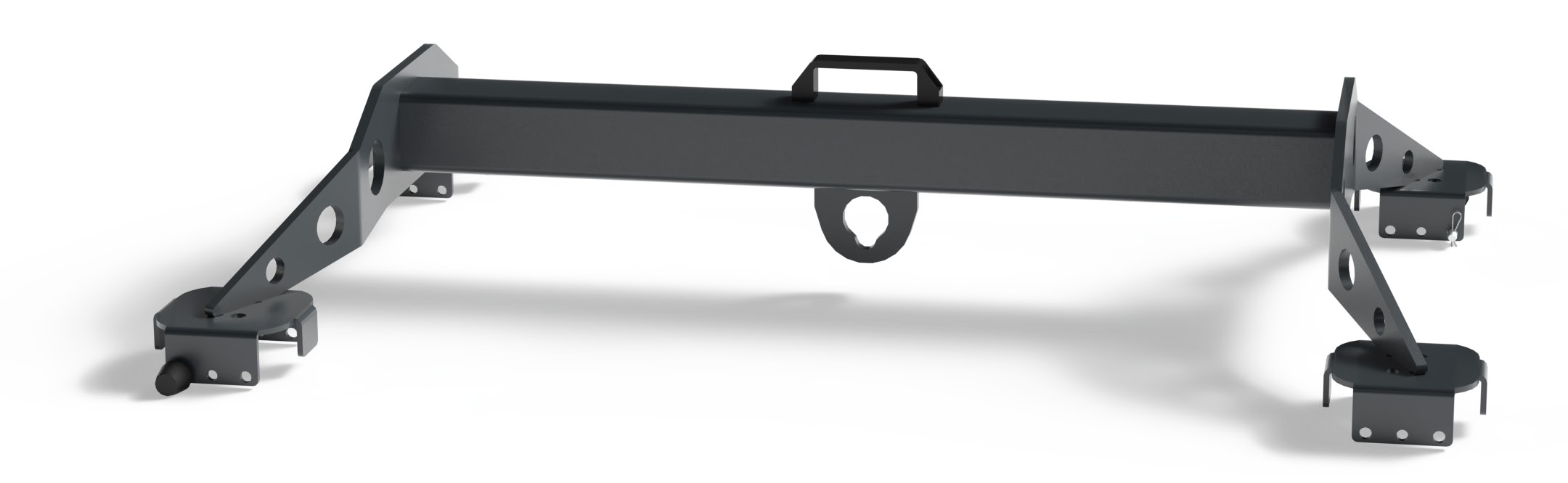

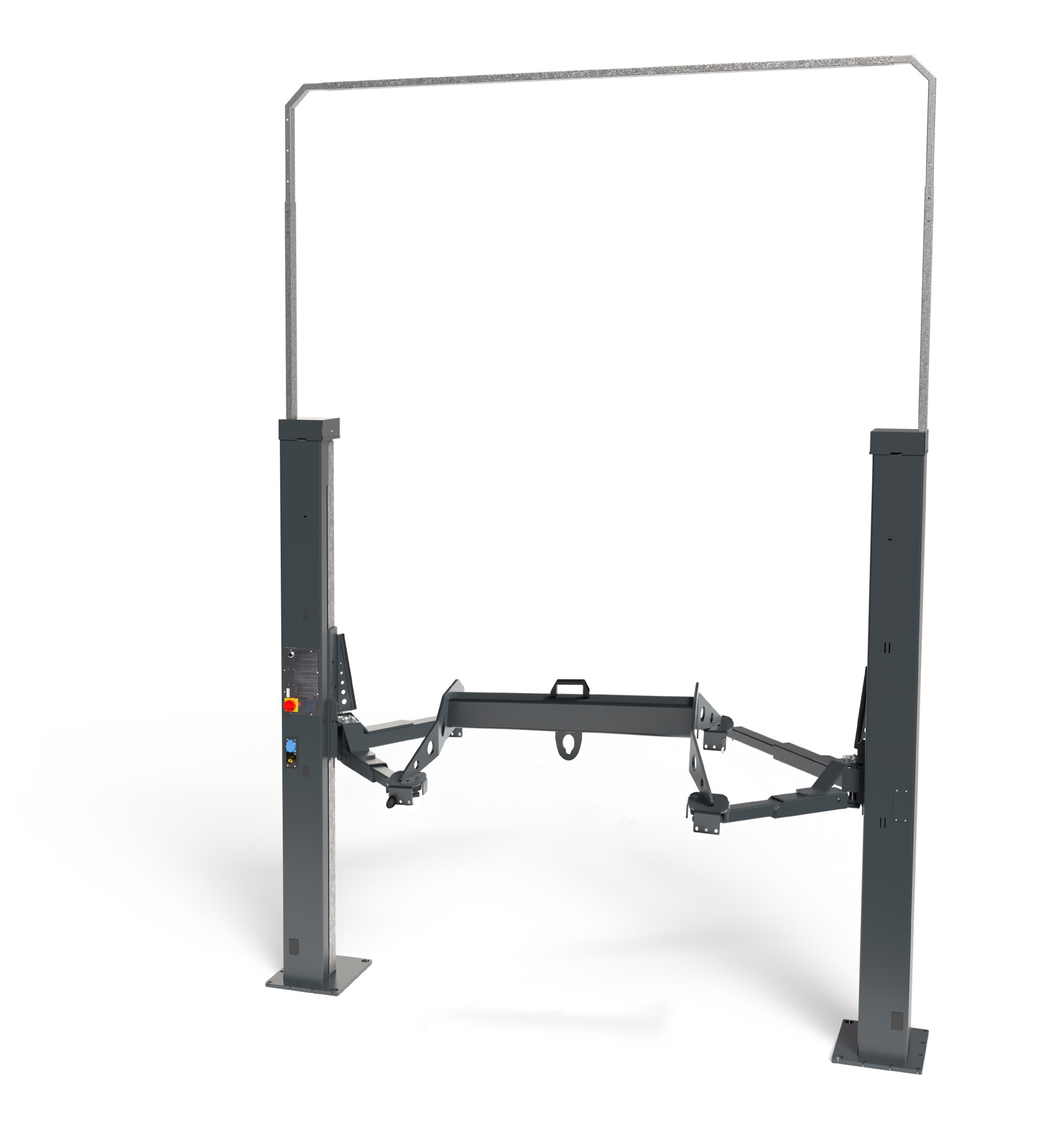

The Nussbaum Universal Lifting Frame 1.25 turns an existing 2-post lift into a controlled way to lift EV battery modules, engines and other heavy components of up to 1,250 kg in and out of their transport crates. The frame sits on the lift’s own pick-up pads and is secured with locking pins, so nothing on the lift is modified and there is no extra floor equipment to store.
Getting your workshop EV ready? See how the DRIVEN rebate works.
Universal Lifting Frame 1.25 for 2 Post Lifts 1,250kg
Features
Uses the Lift You Already Have

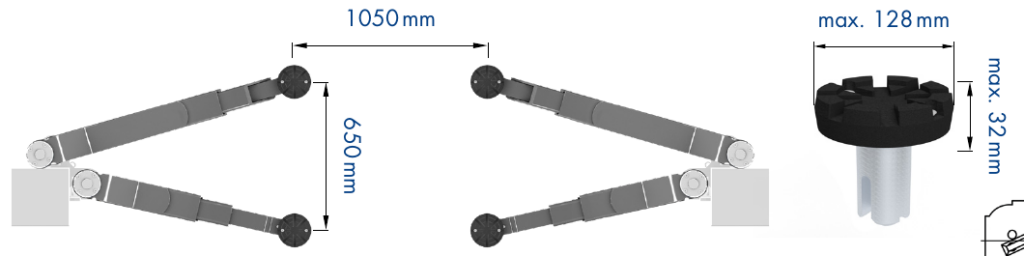

Fits standard 2-post lifts with pick-up pads up to 128 mm in diameter and 32 mm high. There is no conversion to the lift and nothing to install.
Centred Lifting for Heavy Loads
The load is taken at the centre of the frame, so battery modules and motors rise and lower level and under control.
Crate In, Crate Out
Lifts high-voltage battery modules and engines up to 1,250 kg in and out of transport crates precisely and at a comfortable working height.
Quick to Fit and Remove
Place it on the pads, pin it and lift. Set-up and pack-down take less time than rigging a separate lifting device.
Stable, Low-Vibration Lifting
The frame lifts on the 2-post lift’s own mechanism, giving a steady, low-vibration lift for delicate components.
Materials & Tech
Comes with
| Capacity | |
|---|---|
| Lifting Capacity | 1,250 kg |
| Lift Requirements | |
|---|---|
| Maximum Pick-Up Pad Diameter | 128 mm |
| Maximum Pick-Up Pad Height | 32 mm |
| Pad Spacing, Side to Side | 1,050 mm |
| Pad Spacing, Front to Rear | 650 mm |
| Size & Weight | |
|---|---|
| Overall Dimensions | 1,190 × 790 × 225 mm |
| Net Weight | 22.5 kg |
| Nussbaum Item Number | 0034748 |
