Top Lift 2.35 TLD XY

SKU: 0016488

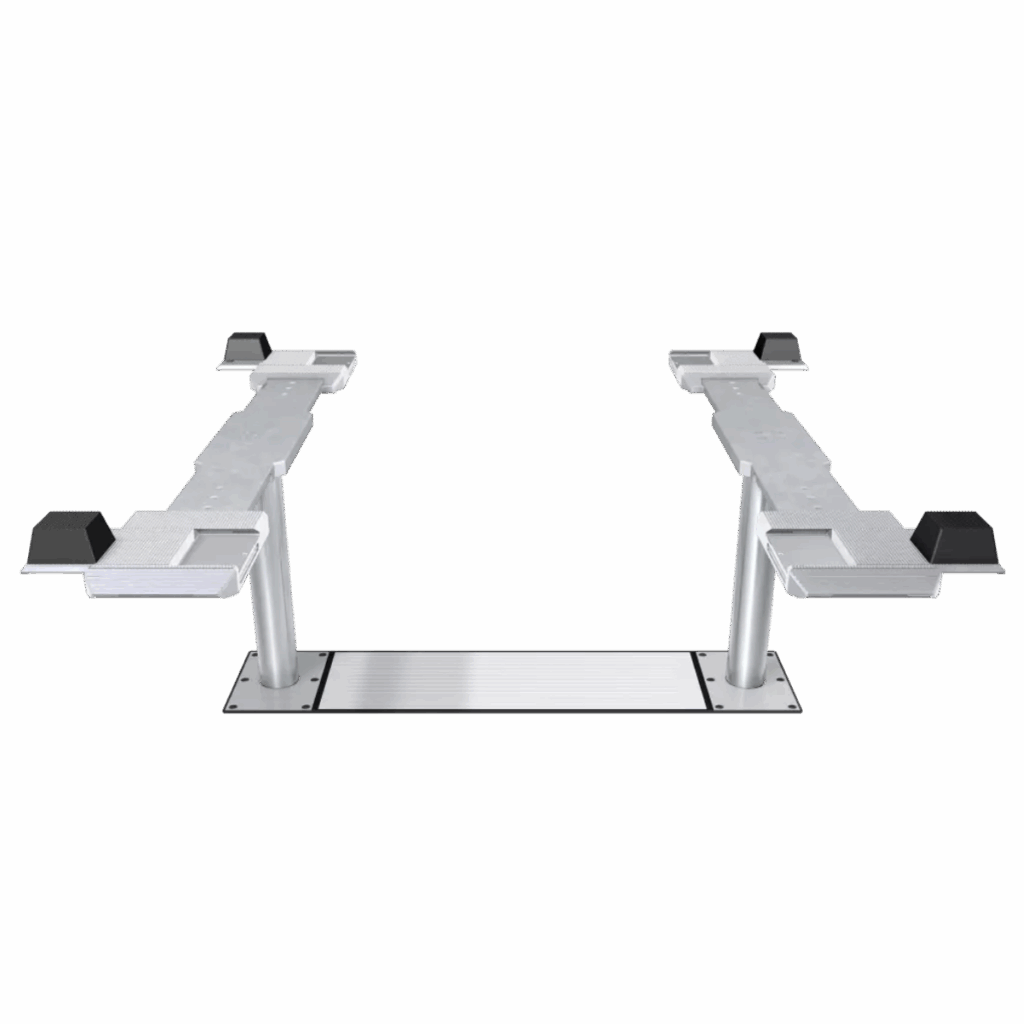

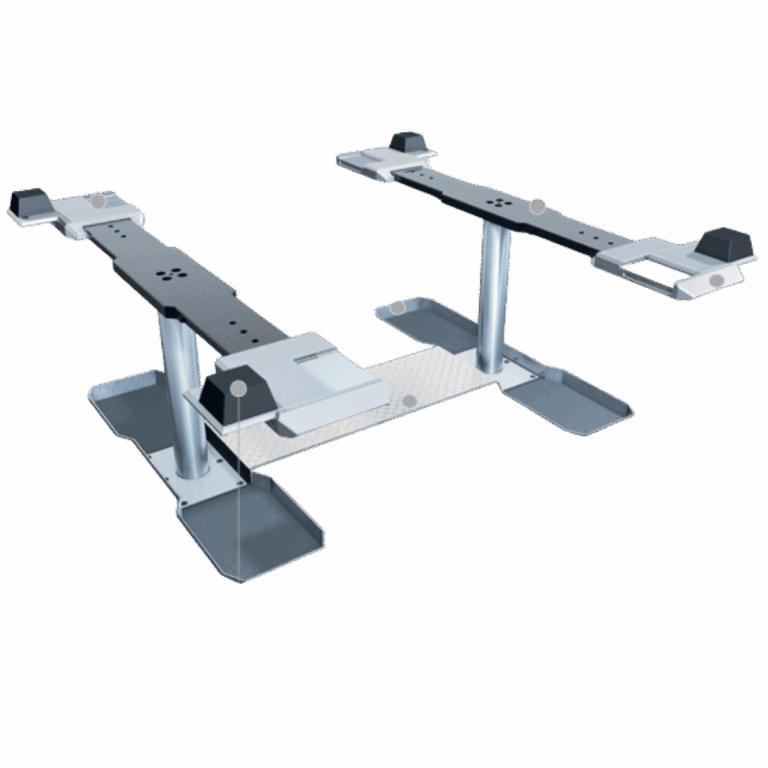

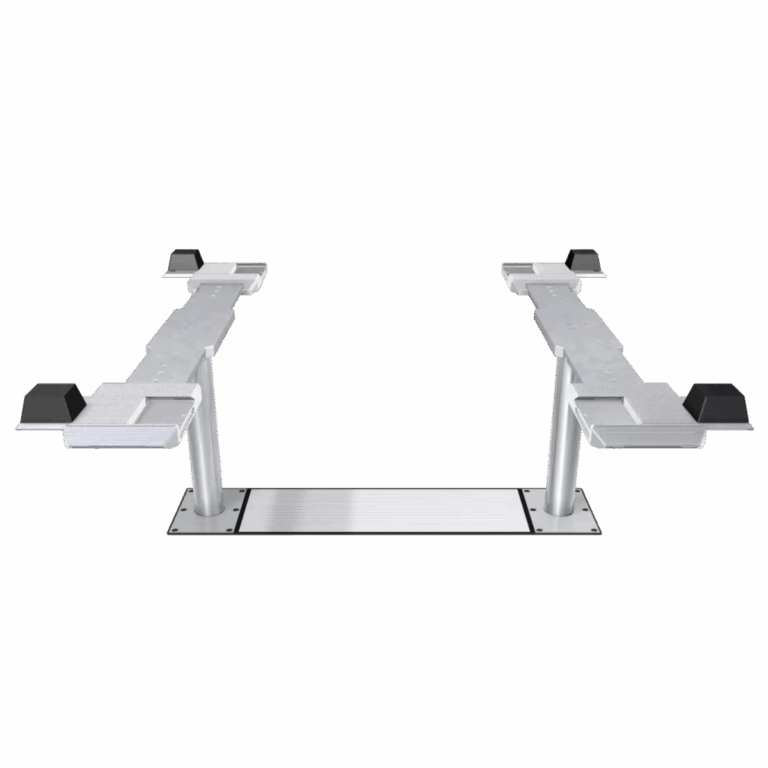

Electro-hydraulic, two-piston, in-ground lift with lengthwise and crosswise adjustable direct pick-up platform with a lifting capacity of 3500Kg.

Here to help

Features

The ultimate in-ground 2-piston flush-mount lift for your workshop space

Lift heavy loads, quickly and safely

Lifting time: 35 seconds
Lowering time: 35 seconds
Load capacity: 3500 kg

Adjustable for your specific needs

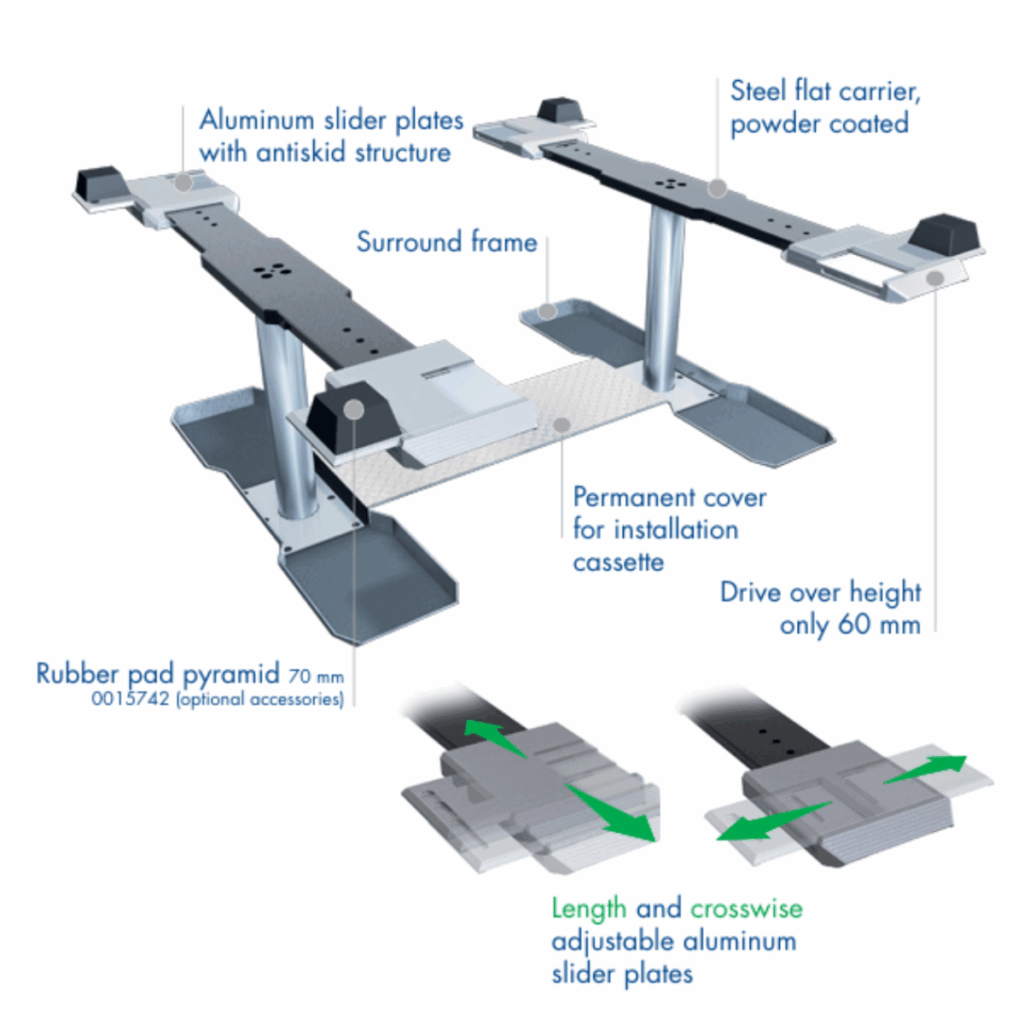

length and crosswise adjustable aluminium slider plates

Safe and reliable construction

High quality: each unit is individually tested before shipment
Designed and manufactured in Germany

Materials & Tech

Powder-coated cassette with stainless steel frame.

Cable length 11m from platform to control.
Steel parts on direct support powder coated RAL7016.

Specifications

GENERAL SPECIFICATIONS
Lifting Capacity	3500Kg
Lifting time	35 seconds
Lowering time	35 seconds
Lifting height	2023mm
Installation depth	2408mm
Drive-on height	60mm
Power Supply	400 V, 50 Hz, 16 Amp

Brand Spotlight

Nussbaum

For over 40 years, Nussbaum has been supplying quality and reliable workshop equipment made in Germany all over the world.

Genesis Equipment is proud to be the exclusive Australian distributor of Nussbaum lifts. The range is the result of decades of experience and continuous adaptations to the constantly changing market conditions and trends of the workshop equipment and automotive industries. This can only be achieved by focusing on the core competence of car lifts and a thorough understanding of the needs of experienced engineers.
