Uni Lift NT 3500

SKU: 0020532

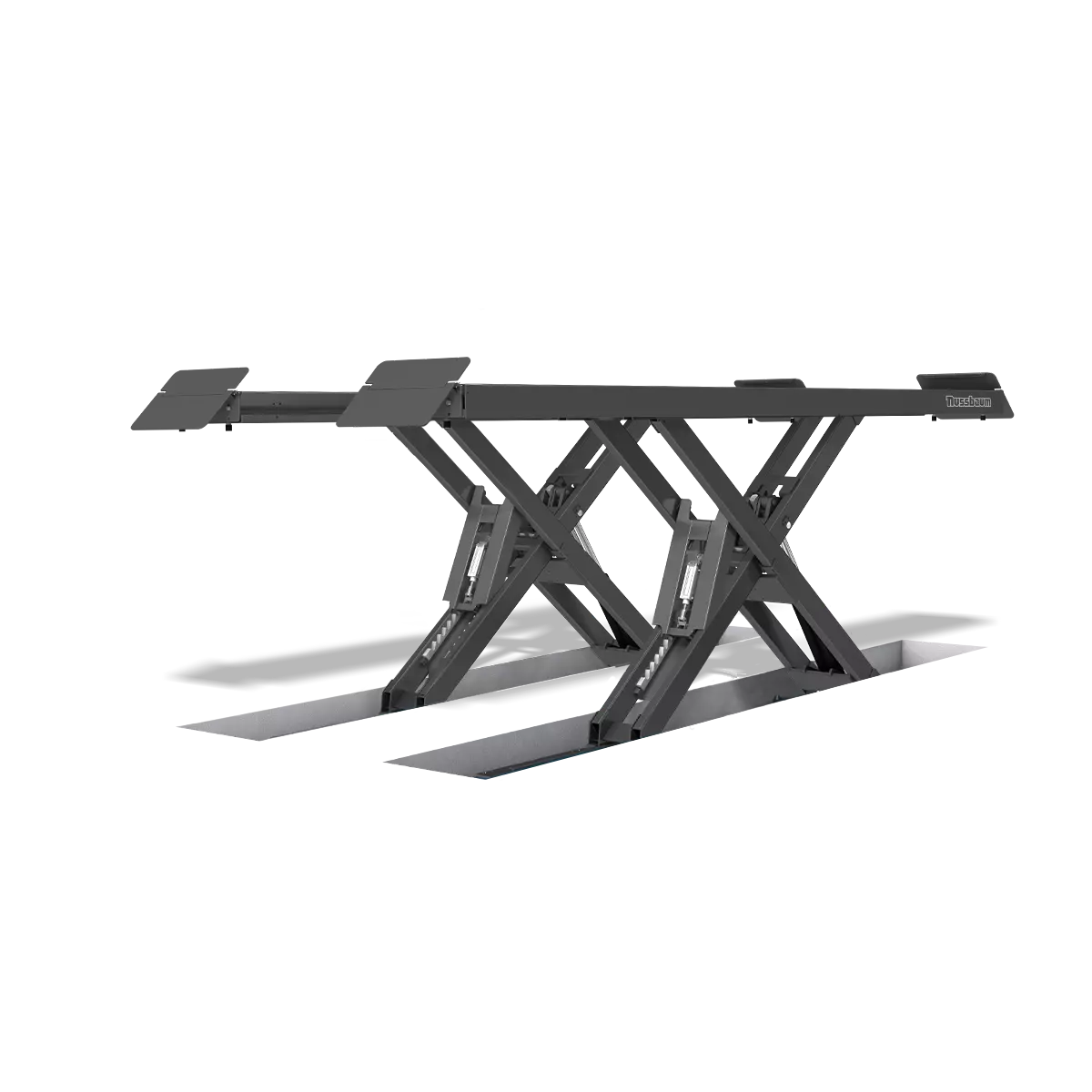

The hydraulic scissor lift UNI LIFT 3500 NT K with a lifting capacity of 4000 kg is the perfect lift for inspection, diagnosis and repairs in the car workshop. With fast lifting and lowering times, small space requirement thanks to the low rails and short ramps, a comfortable lifting height of 1920 mm, flexible installation width and variable distance between the operating unit and the lifting platform, the UNI LIFT 3500 NT K the perfect companion for every car repair shop that needs a lift which meets all requirements. The mechanical ratchet attached to the scissors guarantees perfect stability during wheel alignment.

Here to help

Uni Lift NT 3500

Features

The mechanical lock guarantees perfect stability for testing. With a space-saving design that features low rails and short drive-on ramps, reducing the overall space required to setup and use the lift.

Lift heavy loads, quickly and safely

Lifting time: 35 seconds
Lowering time: 29 seconds
Load capacity: 4000 kg
Effective lifting height of 1920 mm
Mechanical lock guarantees perfect stability for testing

Space-saving design

low rails + short drive-on ramp
Flexible installation width
Distance between control unit and lift can be varied as required
360° access

Efficient

low power consumption
Minimal maintenance requirements
reduced running costs thanks to reduced number of overall moving parts

Safe and reliable

equipped with two hydraulic circuits for perfect synchronisation
equipped with a main switch and protected pushbuttons that can be positioned at various distances from the lift
Designed and manufactured in Germany

Materials & Tech

The scissors and platforms are welded in Nussbaum’s own state-of-the-art welding machines, shot-peened and then powder-coated gray making the lift protected against dirt and weather in the long term.

Specifications

GENERAL SPECIFICATIONS
Lifting Capacity	4000 Kg
Lowering time	29 seconds
Lifting time	35 seconds
Lifting height	1920mm
Installation type	in-ground
Total width minimum	2220mm
Platform width	635mm
Electrical connection	3 Ph, 400 v, 50 Hz
Power	3KW

Brand Spotlight

Nussbaum

For over 40 years, Nussbaum has been supplying quality and reliable workshop equipment made in Germany all over the world.

Genesis Equipment is proud to be the exclusive Australian distributor of Nussbaum lifts. The range is the result of decades of experience and continuous adaptations to the constantly changing market conditions and trends of the workshop equipment and automotive industries. This can only be achieved by focusing on the core competence of car lifts and a thorough understanding of the needs of experienced engineers.
