XPR-9S | 2-Post Hoist

SKU: 5175390

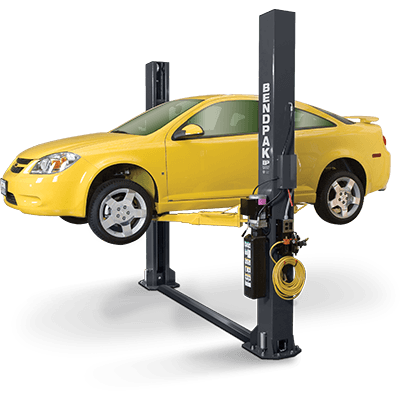

The BendPak XPR-9S is a compact floorplate two-post hoist with a 4,082 kg lifting capacity. Designed for low-ceiling installations, it features advanced safety systems, dual-synchro equalization, and maintenance-free components, making it ideal for professionals and DIY enthusiasts alike.

4,082-kg lifting capacity
Low-profile design for versatile vehicle access
Dual hydraulic chain-over cylinders
CE Certified for safety and durability
Maintenance-free load bearings

Here to help

Features

The XPR-9S offers a compact, open-top design for low-ceiling garages while maintaining robust lifting power.

Two-Stage Telescoping Screw Pads
Rugged and adjustable screw pads ensure safe and efficient hoisting for various vehicle types.

Low-Profile Contact Pads
Safely access low-profile race cars and lowered compact vehicles without damaging frames or chassis.

Triple-Telescoping Front Arms
Extended reach and adaptability accommodate unibody vehicles and various wheelbases.

Automatic Arm Restraints
Arms lock automatically during lifting and release upon descent, ensuring secure and safe operation.

Taller Hoist Carriages
1,346 mm tall hoist carriages reduce column stress for safer and more durable operations.

Maintenance-Free Load Bearings
UHMW polyethylene bearings require no lubrication and resist wear, chemicals, and environmental damage.

Materials & Tech

The XPR-9S features single-piece steel columns for strength and durability, reducing stress under heavy loads.

XPR-9S Hoist Unit
4-piece 63 mm stackable adapter set
Installation and user manual

Comes with

Chain-over lifting system
Electric/hydraulic power system

Optional

Extended reach adapters for specialty vehicles

Specifications

Capacity	Imperial	Metric
Lifting Capacity	9,000 lbs	4,082 kg
Max Capacity / Front Axle	4,500 lbs	2,041 kg
Max Capacity / Rear Axle	4,500 lbs	2,041 kg

Rise	Imperial	Metric
A – Rise	72″	1,829 mm
B – Rise + Pad Only	78″	1,981 mm
C – Rise + Pad + 63 mm Adapter	80.5″	2,045 mm
D – Min. Height + Pad	4.25″	108 mm
Time to Full Rise	45 seconds

Outside Dimensions	Imperial	Metric
E – Height Overall	113″	2,870 mm
F – Width Overall	132″ or 145″	3,353 mm or 3,683 mm
G – Outside Columns	126.75″ or 139.75″	3,219 mm or 3,550 mm

Inside Dimensions	Imperial	Metric
H – Inside Columns	105″ or 118″	2,667 mm or 2,997 mm
I – Drive-Thru Clearance	93″ or 106″	2,362 mm or 2,692 mm

Arms & Pads	Imperial	Metric
K – Front Arm Reach (MIN)	27.5″	699 mm
K – Front Arm Reach (MAX)	51.5″	1,308 mm
L – Rear Arm Reach (MIN)	34″	864 mm
L – Rear Arm Reach (MAX)	54.5″	1,384 mm
Screw Pad Adjustment	1.75″	44 mm
Max Load Per Arm	2,250 lbs	1,021 kg

Floorplate	Imperial	Metric
Height	1.75″	44 mm
Width	8.5″	216 mm

Power Unit
Motor	220 VAC / 60 Hz / 1 Ph
Noise	45 dB

Brand Spotlight

BendPak

For decades, BendPak has set the gold standard in hoisting technology, trusted by automotive repair workshops, motor dealerships, and heavy vehicle operators alike.

Renowned for its unmatched quality and durability, BendPak delivers solutions built to withstand the demands of high-volume operations. With our exclusive partnership, Genesis Equipment ensures that your business benefits from the latest innovations and superior performance. When you choose BendPak through Genesis, you’re choosing a brand that professionals trust worldwide to maximize safety, efficiency, and value.
