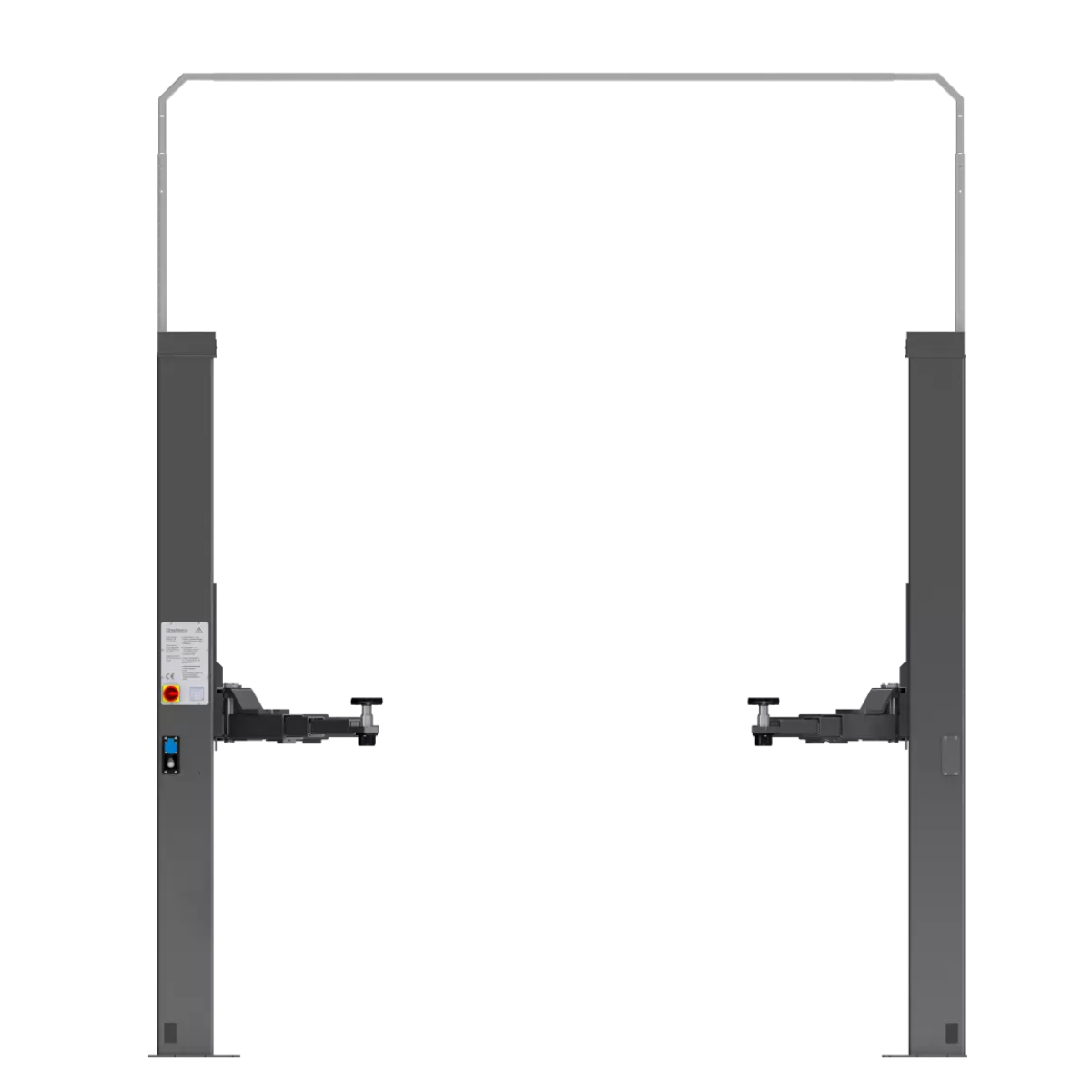

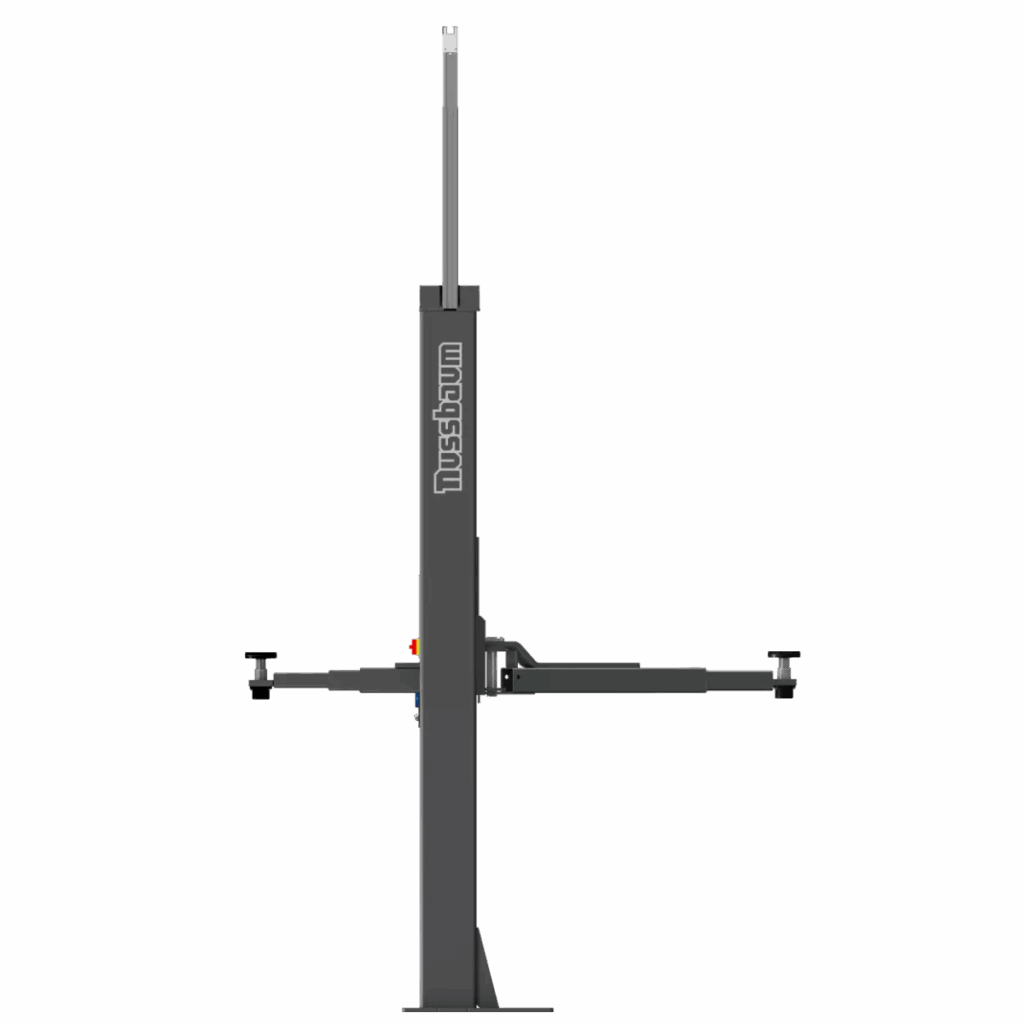

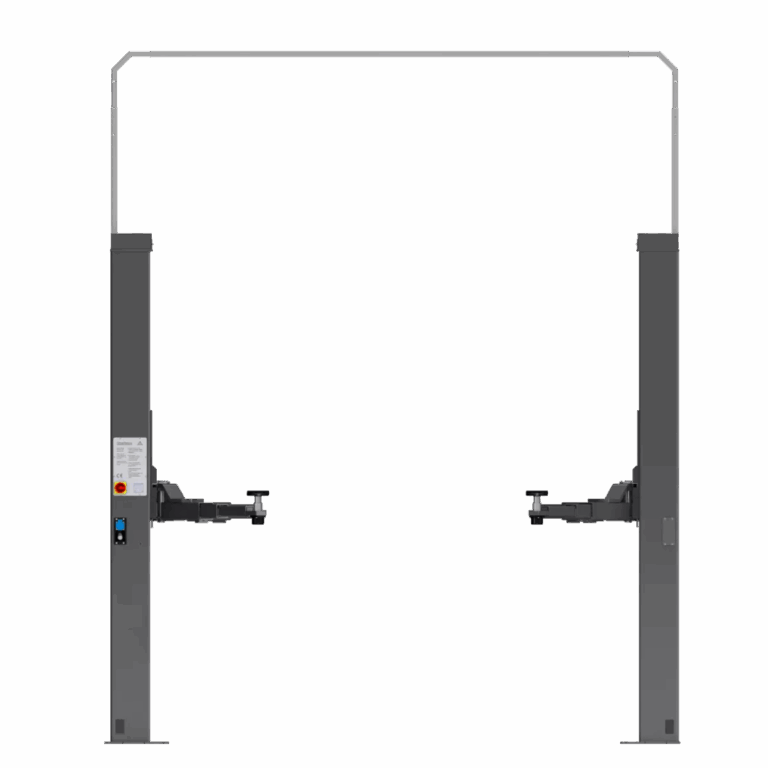

Smart Lift 2.40 SL Uni

SKU: 0010655

With the asymmetrical universal arms, consisting of four 2-times telescopic arms, a wide range of vehicle sizes and weights – from SMART to long-wheelbase vans. – can be lifted without any problems. In addition, in combination with the asymmetrical lifting carriage, they offer optimal door clearance as well as door protection on the columns.

Here to help

Features

With its low minimum height and flexible installation width, it fits into any car workshop. The simple cable connection between the columns can either be installed in the floor or via a simple, height-adjustable cable bridge at the top between the columns.

Lift heavy loads, quickly and safely

Lifting time: 46 seconds
lowering time: 40 seconds
Load capacity: 4000 kg

Adjustable for your specific needs

Ideal for low ceiling heights with minimum height of 2890 mm
Universal 3-stage arms
Adjustable in width and height, low minimum space requirement

Safe and reliable construction

Nussbaum’s SMART LIFT series proven track record for over 20 years
High quality: each unit is individually tested under load before shipment
Designed and manufactured in Germany

Materials & Tech

The spindle carrying nut system consists of a rotating spindle and a low-wear lifting nut made of high-quality Nylatron®. A second safety nut under the carrying nut additionally secures the system. The arms are secured by an automatic locking device. The lifting nut can be inspected by the user by means of an easily visible optical wear check.

Installation requirements

Foundation 200 mm C20/25 standard reinforcement
12 dowels BM12-20/80/40 (depending on foundation, see manual)
eletric connection 3 PH, N + PE, 400 V, 50 Hz, 16 Amp.

Specifications

GENERAL SPECIFICATIONS
Lifting Capacity	4000Kg
Lifting time	46 seconds
Lowering time	40 seconds
Lifting height	2060mm
Total height column	2890mm
Power Supply	400 V, 50 Hz, 16Amp
Drive-through width	2514mm
total width	3350mm
