SKU: BMW 69 501 071
BMW recommended. POWER LIFT HF 3S 3500 BMW gives fast-paced workshops the world’s only triple-safety-system guarantee. The hoist’s double telescopic arms lift asymmetrically, quickly, up to a load capacity of 3500kg.
This workshop asset works best with continual use and keeps the busy mechanic safer with two redundant hydraulic circuits and one integrated automatic safety lock. BMW servicing hoist moving quietly up and down without clacking.
Nussbaum’s HyperFlow® technology reduces maintenance down time by automatically sychronizing hoist arms and bleeding air from the hydraulic system with every lift.
Mechanics control descent speed and position with a precision available only with easy grip, stepless lever Nussbaum Commander.
Workshops more easily integrate BMW POWER LIFTS into existing spaces using its frame-free design base and adjustable width/height.
Built in cost savings include the pulling hydraulic cylinders that protect the hydraulic circuit, a reduced number of moving parts, and integrated sockets and connections protected from the dust and grime of continual use.

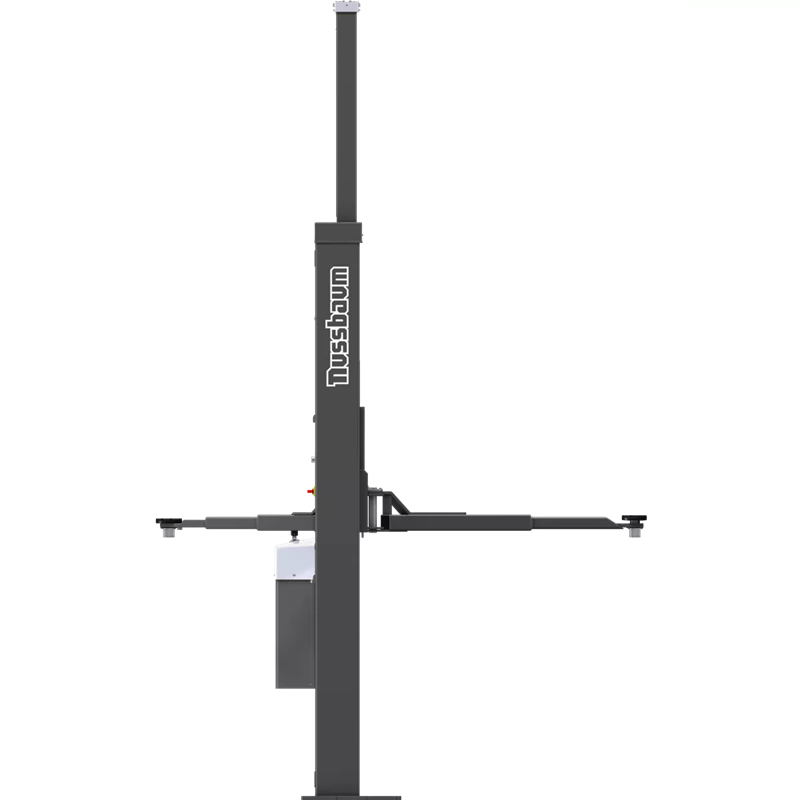

BMW POWER LIFT HF 3S 3500
A BMW servicing hoist looks elegant to complement the car on the top. Nussbaum’s personal welding workshop seals these top shelf assets before they’re shot-peened and grey powder coated. Your photographic advertising is upgraded with these machines in view.
A safety latch automatically secures the vehicle every 100 mm up to the maximum height of 2005 mm. Operators choose a manual placement, when needed, using a safety switch on the control column. All this movement happens quietly, without the loud clicking noise of an average 2 post lift.
POWER LIFT HF 3S 3500 BMW’s telescopic asymmetrical arms contain four fixed turntables per arm giving the mechanic ultimate undercarriage manoeuvrability.
Learn more from Nussbaum ‘s English language site here: https://uk.nussbaumlifts.com/bmw-power-lift-hf-3s-3500-grey/
Hydraulic 2 post lifts with triple safety - 3 tons, 3,5 tons, 4 tons - HF 3S
The POWER LIFT HF 3S 3500 BMW self-regulates pneumatic pressure and gives the mechanic exacting hoist control with easy grip leverage.
| GENERAL SPECIFICATIONS | |
| BMW article number | BMW 69 501 071 |
| Capacity | 3500 kg |
| CE stop | yes |
| Clear distance between columns | 2400 – 2646 mm |
| E-set | yes |
| Electrical connection (Ph/V/Hz) | 3 Ph, 400 V, 50 Hz |
| Engine power | 3 KW |
| Fuse protection | 16 Amp. slow blow |
| Length front arm | 505 – 823 mm |
| Length rear arm | 940 – 1495 mm |
| Lifting height | 2005 mm |
| Lifting time | 23 seconds |
| Lowering time | 14 seconds |
| Lower swivelling height | 95 – 140 mm |
| Total height (extension required) | 4040 – 4904 mm |
| Total width | 3230 mm |
