SKU: 0001064

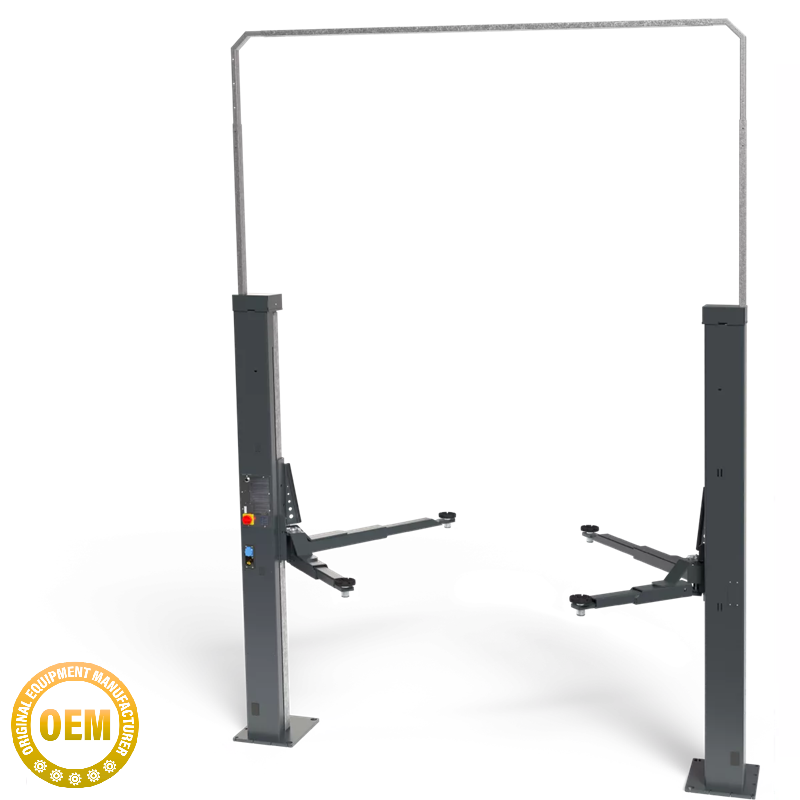

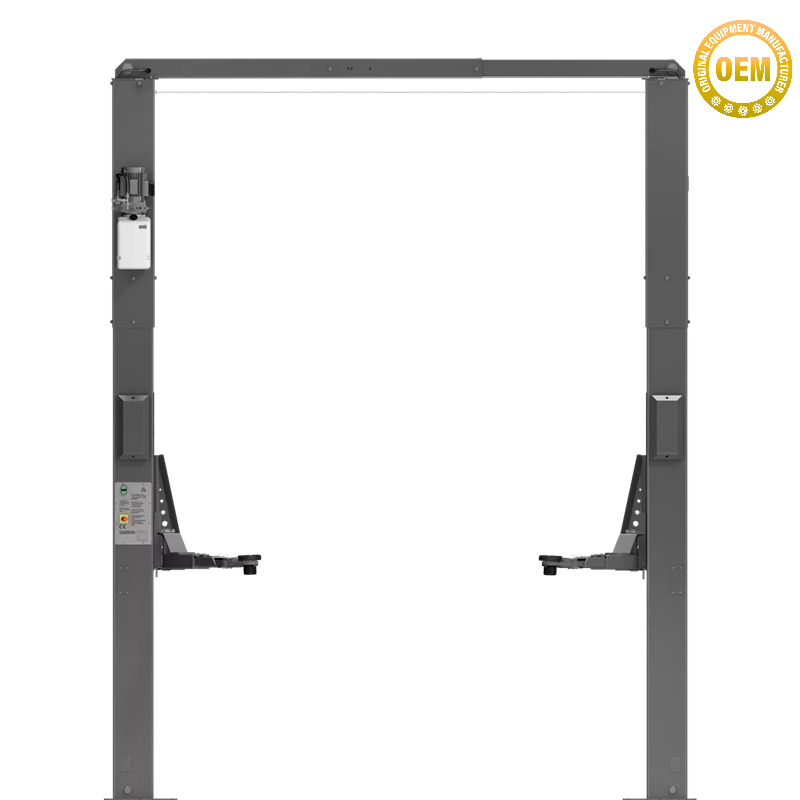

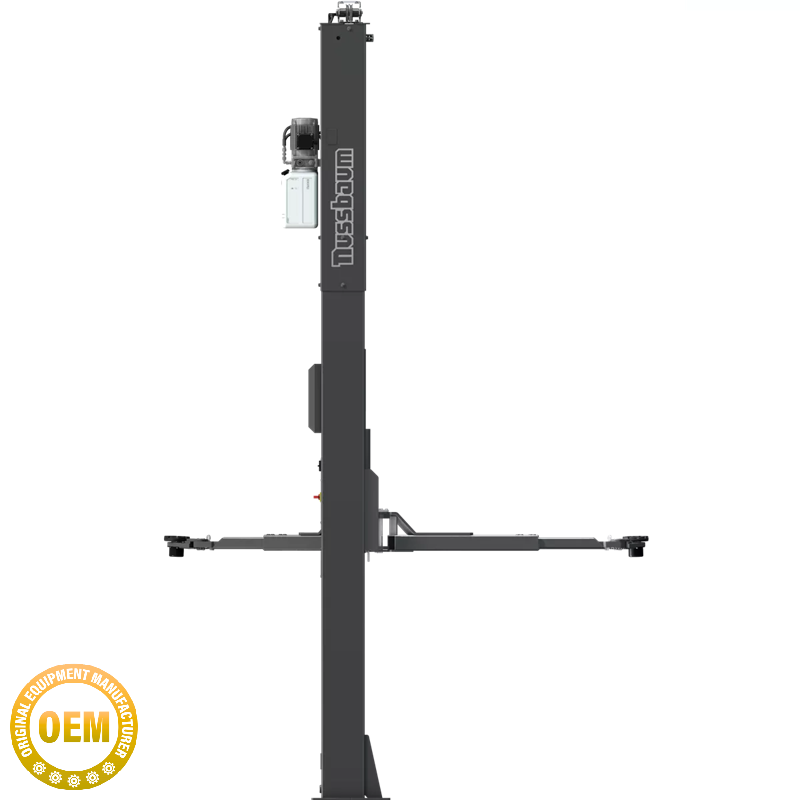

BMW recommended. SMART LIFT 2.35 SL BMW continues two decades of SMART LIFT design and improvement. Priced for large-quantity installations, these 2 post hoists work an electromechanical spindle raising 3500 kg. Low 2890 mm minimum height and adaptive workspace width give workshop designers better use of space. Cable between columns connects in the floor or through a cable bridge above (please specify connection location with sales person when ordering).
SMART LIFT 2.35 BMW
Created in partnership with BMW to improve service work and results. Easy to use column includes a compressed air connection and 220 V socket. With over 100,000 SMART LIFT units sold, this custom BMW SMART LIFT keeps the familiar Nussbaum quality while adding a personal Euro touch that mechanics appreciate.
The generational design uses a spindle carrying nut system – Nylatron® rotating spindle and a low-wearing lifting nut. Additional security delivered by a second safety nut under the carrying nut. Arms automatically lock into place.
Self-contained manufacturing from design to final product gives this BMW recommended SMART LIFT its Nussbaum-custom welding, shot-peened strengthening, and powder coating finish.
Individual testing of every unit before export shares confidence from manufacturer to workshops around the world.
Learn more from Nussbaum ‘s English language site here: https://uk.nussbaumlifts.com/bmw-smart-lift-2-35-sl-grey/
Electromechanical 2 post lifts - SMART LIFT - Short Intro
| GENERAL SPECIFICATIONS | |
| Capacity | 3500 kg |
| CE stop | yes |
| Clear distance between columns | 2400 – 2646 mm |
| Clearance height | 3685 – 4170 mm |
| E-set | yes |
| Electrical connection (Ph/V/Hz) | 3 Ph, 400 V 50 Hz |
| Engine power | 2 x 1, 5 KW |
| Fuse protection | 16 Amp. slow-blow |
| Length front arm | 505 – 823 mm |
| Length rear arm | 940 – 1495 mm |
| Lifting height maximum | 2060 mm |
| Lifting time | 46 seconds |
| Lowering time | 40 seconds |
| Lower swivelling height | 95 – 140 mm |
| Total height | 2890 mm |
| Total width | 3230 mm |
