Home / Vehicle Lifts / Power Lift HF 3S 3500 DT

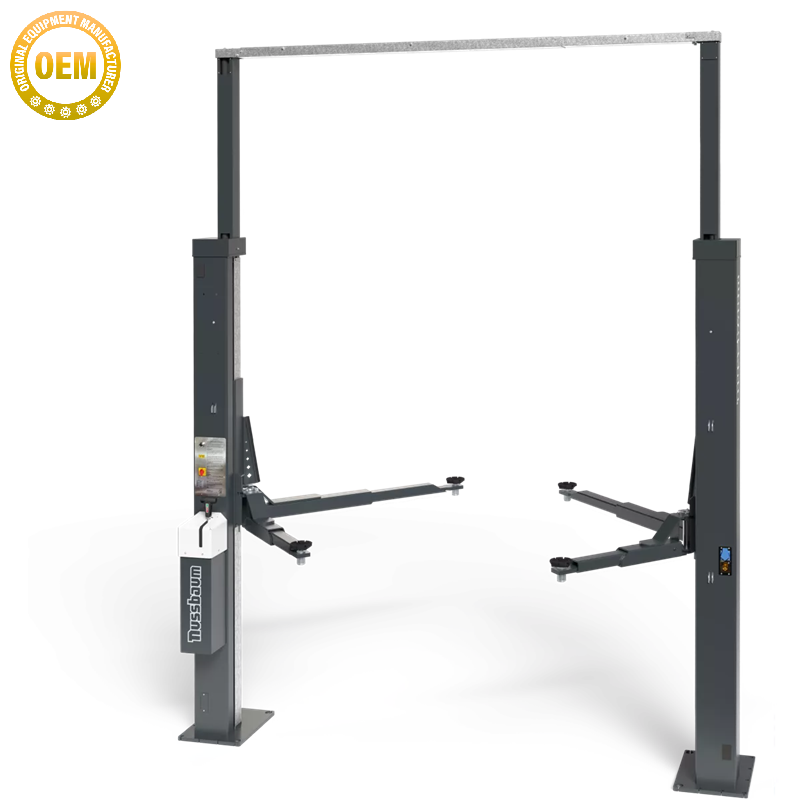

Power Lift HF 3S 3500 DT

SKU: 0010621

The hydraulic 2-post lifts POWER LIFT HF 3S 3500 DT with a load capacity of 3500 kg and asymmetrical double telescopic lifting arms is the world’s only lift with triple safety system. The POWER LIFT HF 3S 3500 DT is the ideal lift for daily continuous use in a consistently busy garage where only the best is good enough. With its fast lifting- and lowering time, two redundant hydraulic systems and the automatic safety latch, it is the perfect blend of maximum safety and performance.

Here to help

Features

The HF 3S series is the result of over 40 years of experience in the manufacture and development of high-quality automotive lifting platforms Made in Germany. With specially developed, in-house technologies, we are the only lift manufacturer in the world that can provide you with a precise, variable lowering speed and an always perfect synchronisation without manual maintenance effort.

Lift heavy loads, quickly and safely

Lifting time: 26 seconds
Lowering time: 14 seconds
Load capacity: 3500 kg

Adjustable for your specific needs

flexible and can be adapted to a wide range of workshop sizes and configurations
Adjustable in width and height

Safe and reliable construction

Triple safety – two hydraulic circuits + automatic safety latch
Always perfect synchronisation
Safety switch attached to the control column
High quality: each unit is individually tested before shipment
Designed and manufactured in Germany

Materials & Tech

The pulling hydraulic cylinders protect the hydraulic circuit even during intensive use and require very little energy. Low power consumption, consistent automatic compensation of the hydraulic circuits by the HyperFlow® system and low maintenance costs. The pump unit integrated in a sound-absorbing metal housing is mounted on the control column and easily accessible for maintenance work. A compressed air connection and a 220 V socket are integrated in the slave column. The arms and columns are welded in Nussbaum’s own state-of-the-art welding facilities, shot-peened and grey powder-coated

Safety

During the lifting process, the Nussbaum safety latch automatically secures the vehicle at intervals of 100 mm up to the maximum lifting height of 2005 mm. The safety switch attached to the control column allows the lift to be additionally placed manually in the latch. In contrast to conventional 2-post lifts, the safety latch does not make any clicking noise during lifting and lowering, which is typical for this type of lifts. The vehicle can be lowered immediately after release of the latch, without first having to be lifted upwards out of the latch.

Specifications

GENERAL SPECIFICATIONS
Lifting Capacity	3500Kg
Lifting time	26 seconds
Lowering time	14 seconds
Lifting height	2045mm
Total column height	4040mm
Power Supply	400 V, 50 Hz, 16 Amp
recommended total width	3230mm

Brand Spotlight

Nussbaum

For over 40 years, Nussbaum has been supplying quality and reliable workshop equipment made in Germany all over the world.

Genesis Equipment is proud to be the exclusive Australian distributor of Nussbaum lifts. The range is the result of decades of experience and continuous adaptations to the constantly changing market conditions and trends of the workshop equipment and automotive industries. This can only be achieved by focusing on the core competence of car lifts and a thorough understanding of the needs of experienced engineers.
