SKU: 5150595

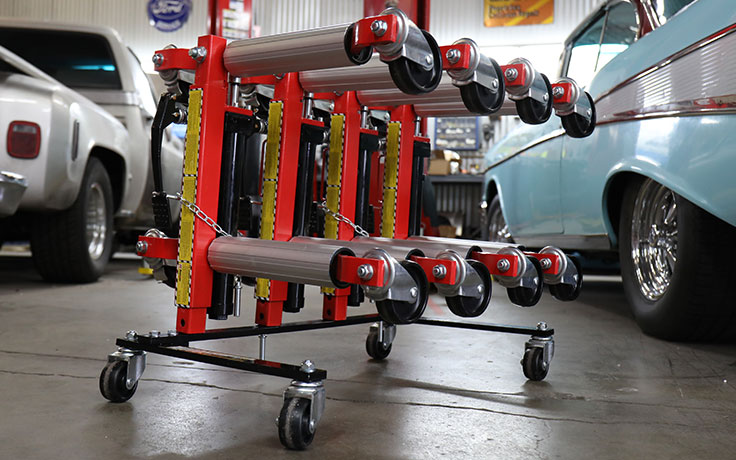

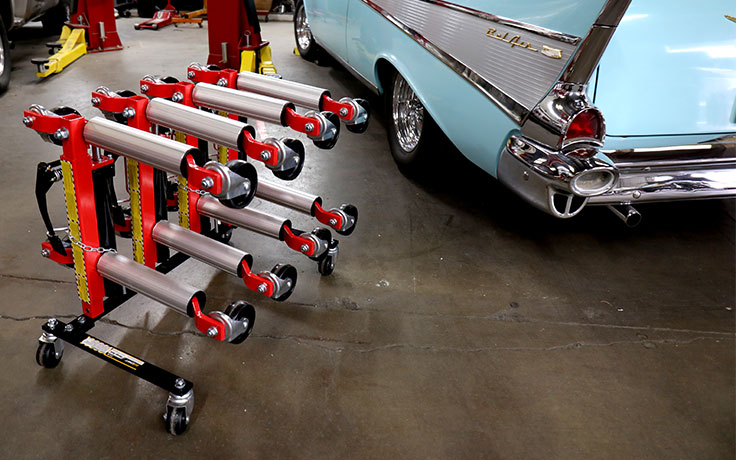

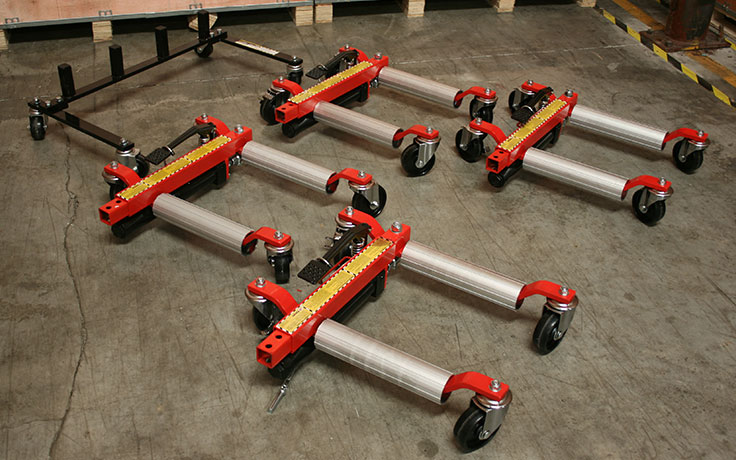

Four-Dolly Go-Cart Storage Stand RCD-1500
Features
Hydraulic Foot Pump for Effortless Lifting
Quick-action hydraulic foot pump lifts the vehicle in seconds
No manual effort required – simply pump and elevate
Heavy-Duty Steel Construction for Maximum Durability
Reinforced steel frame supports heavy loads
Powder-coated finish for long-lasting protection
Smooth, Multi-Directional Maneuverability
Precision-bearing casters ensure seamless movement
Non-marking polymer wheels protect delicate flooring
Expandable Frame for Versatile Fit
Accommodates tyre widths up to 305mm
Handles tyres with diameters from 381mm to 711mm

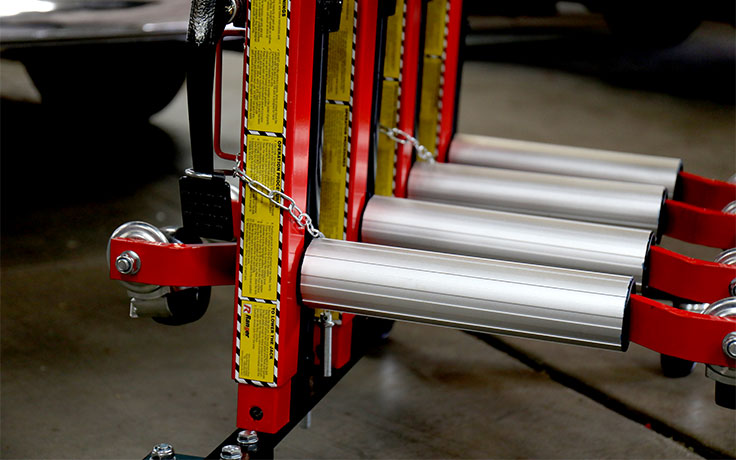

Secure Locking Mechanism
Multi-position locking pin for safety
Reinforced, non-skid brushed aluminium rollers for added grip
Optional Storage Rack for Easy Organization
Keep your dollies neatly stored and ready for use
Available as an add-on accessory
Materials & Tech
OPTIONAL
| LOAD & LIFTING CAPACITY | Specifications |
| Load Rating (Each Dolly) | 680 kg (1,500 lbs) |
| Load Rating (Set of 4) | 2,722 kg (6,000 lbs) |
| Lifting Mechanism | Hydraulic Foot Pump |
| DIMENSIONS & COMPATIBILITY | Specifications |
| Tyre Width Capacity | 305 mm (12″) |
| Wheel Size Capacity | 203 mm – 610 mm (8” – 24″) |
| Tyre Diameter Capacity | 381 mm – 711 mm (15” – 28″) |
| BUILD & MOBILITY | Specifications |
| Casters + Frame Height | 152 mm (6″) |
| Casters Diameter | 102 mm (4″) |
| Stowed Dimensions | 533 mm x 610 mm (21” x 24″) |
| Caster to Handle Distance | 457 mm (18″) |
| WEIGHT & DURABILITY | Specifications |
| Unit Weight | 19 kg (42 lbs) |
| Frame Material | Heavy-Duty Steel with Powder-Coat Finish |
| Rollers Material | Non-Skid Aluminium |
| Wheel Material | Flat-Free Polymer |
