SKU: 5140139

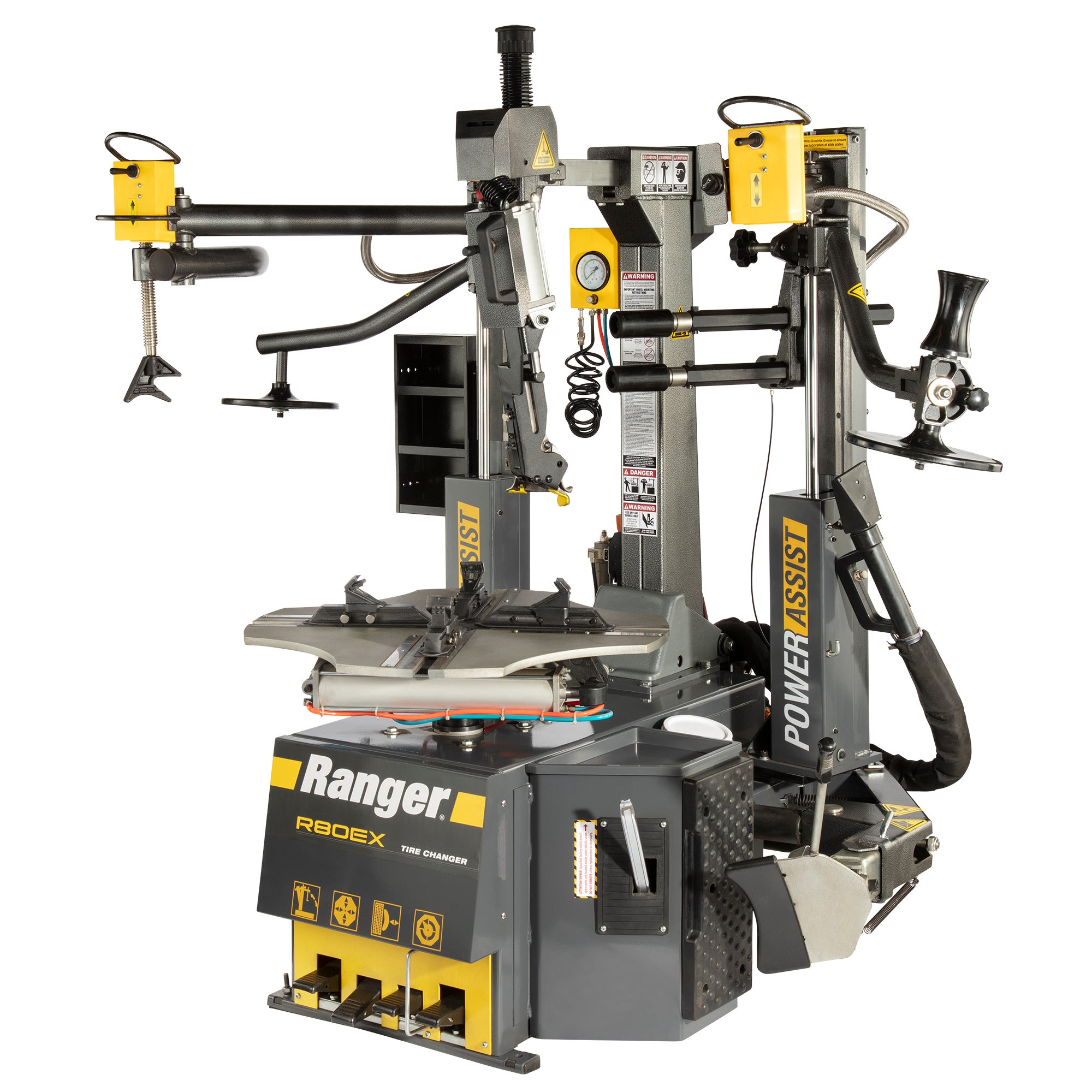

The Ranger R80EX is a tilt-back tyre changer with power assist towers on both sides, set up for high-volume workshops that change a wide mix of tyres every day. It clamps wheels from 13 to 34 inches on the inside jaws and takes tyres up to 1,194 mm (47 inches) in diameter.

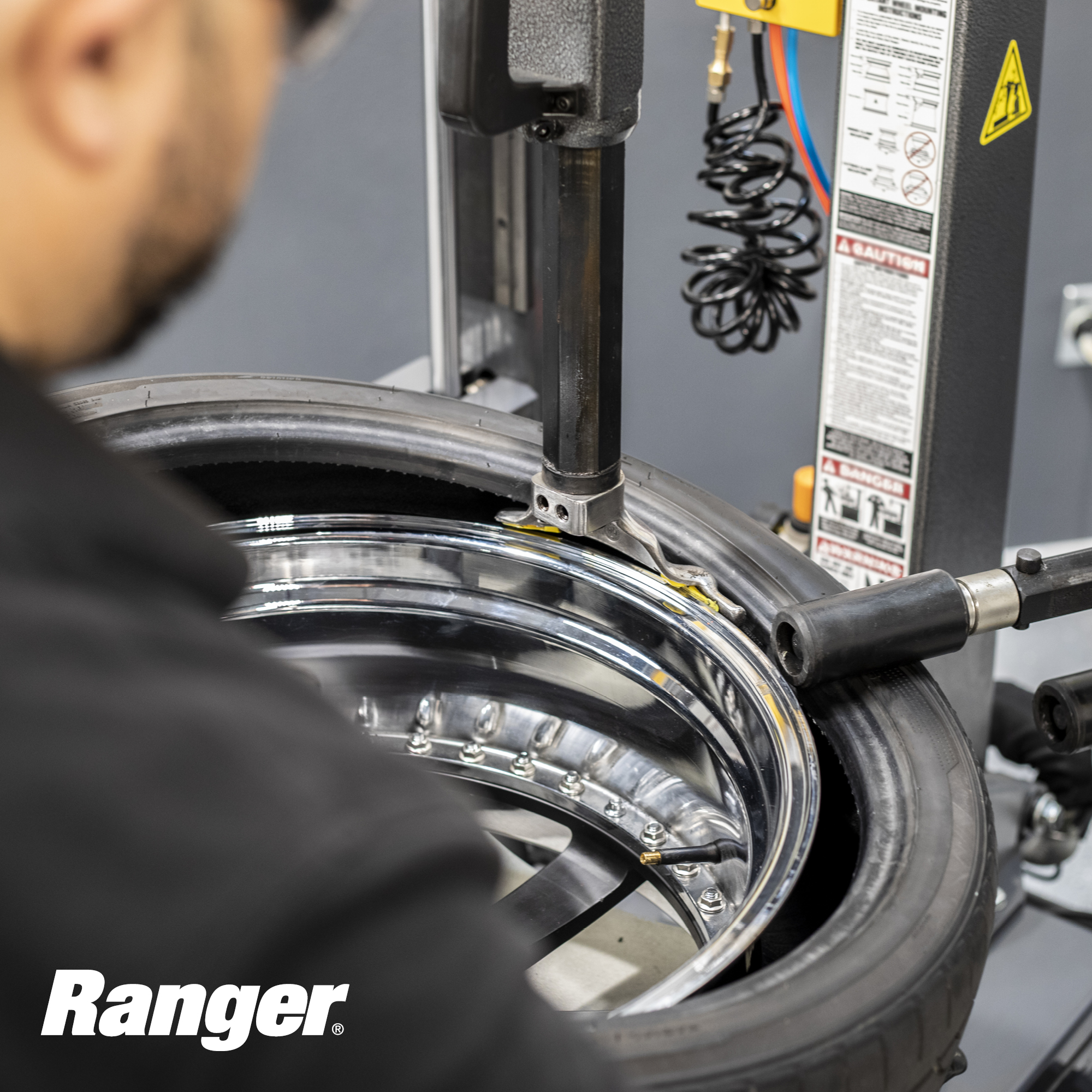

The left tower carries a travelling drop-centre tool, a lower bead-lifting disc and a pneumatic wheel restraint. The right tower adds dual power-drop upper bead rollers, a second bead-lifting disc and a sidewall roller. Together they take much of the physical strain out of stiff and low-profile fitments.
The towers tilt back out of the way for removing and inflating tyres, and the bead loosener is run from a single lever on the shovel handle rather than a foot pedal. A 3 HP motor, maintenance-free gearbox and TurboBlast bead seating complete a machine built for steady, all-day use.
Dual-Tower Tilt-Back Tyre Changer R80EX by Ranger
Features
Built for the workshop
| Inside wheel clamping range | 330–864 mm (13–34 inches) |
| Outside wheel clamping range | 254–762 mm (10–30 inches) |
| Max rim width | 381 mm (15 inches) |
| Max tyre diameter | 1,194 mm (47 inches) |

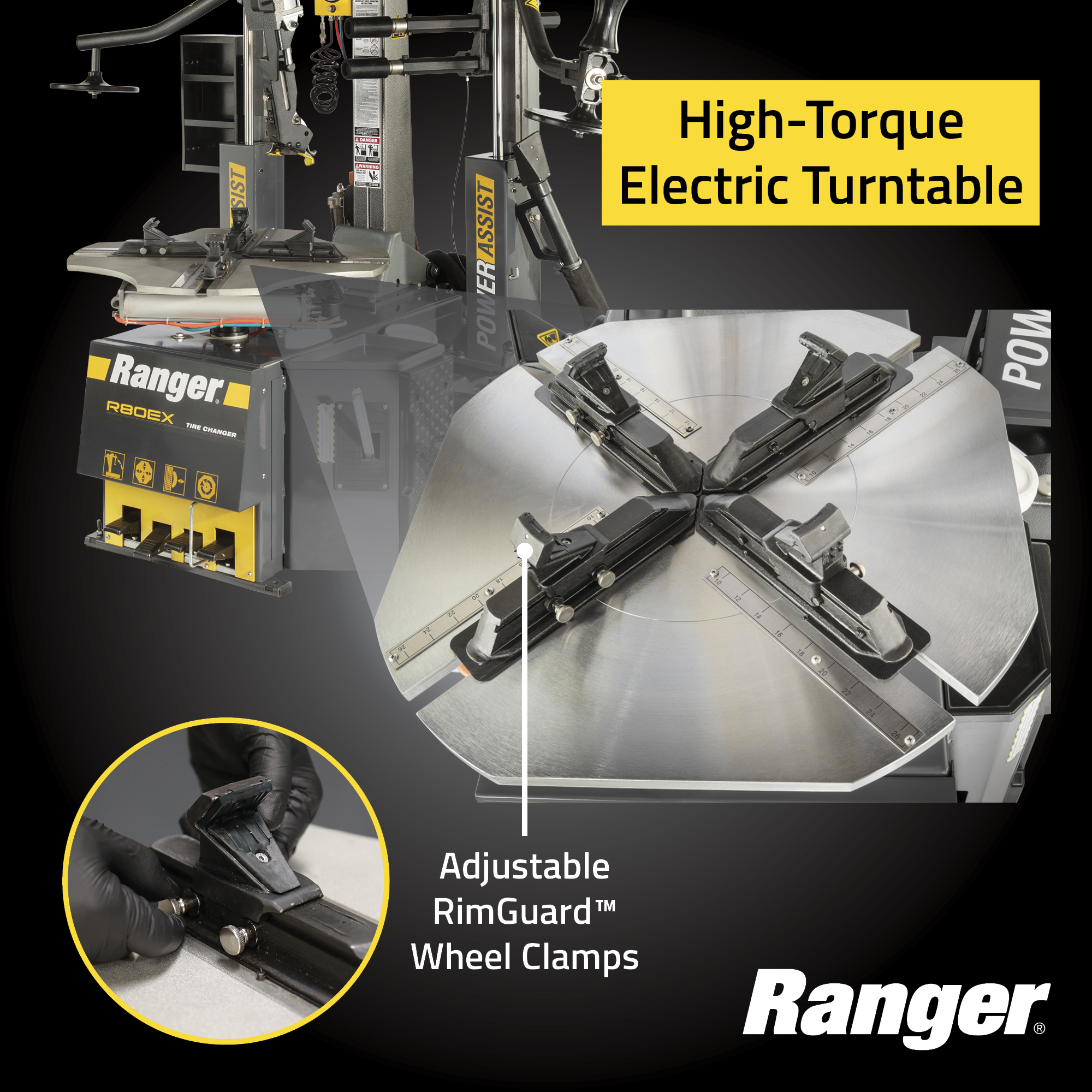

| Wheel clamping method | 4 clamps, internal / external |

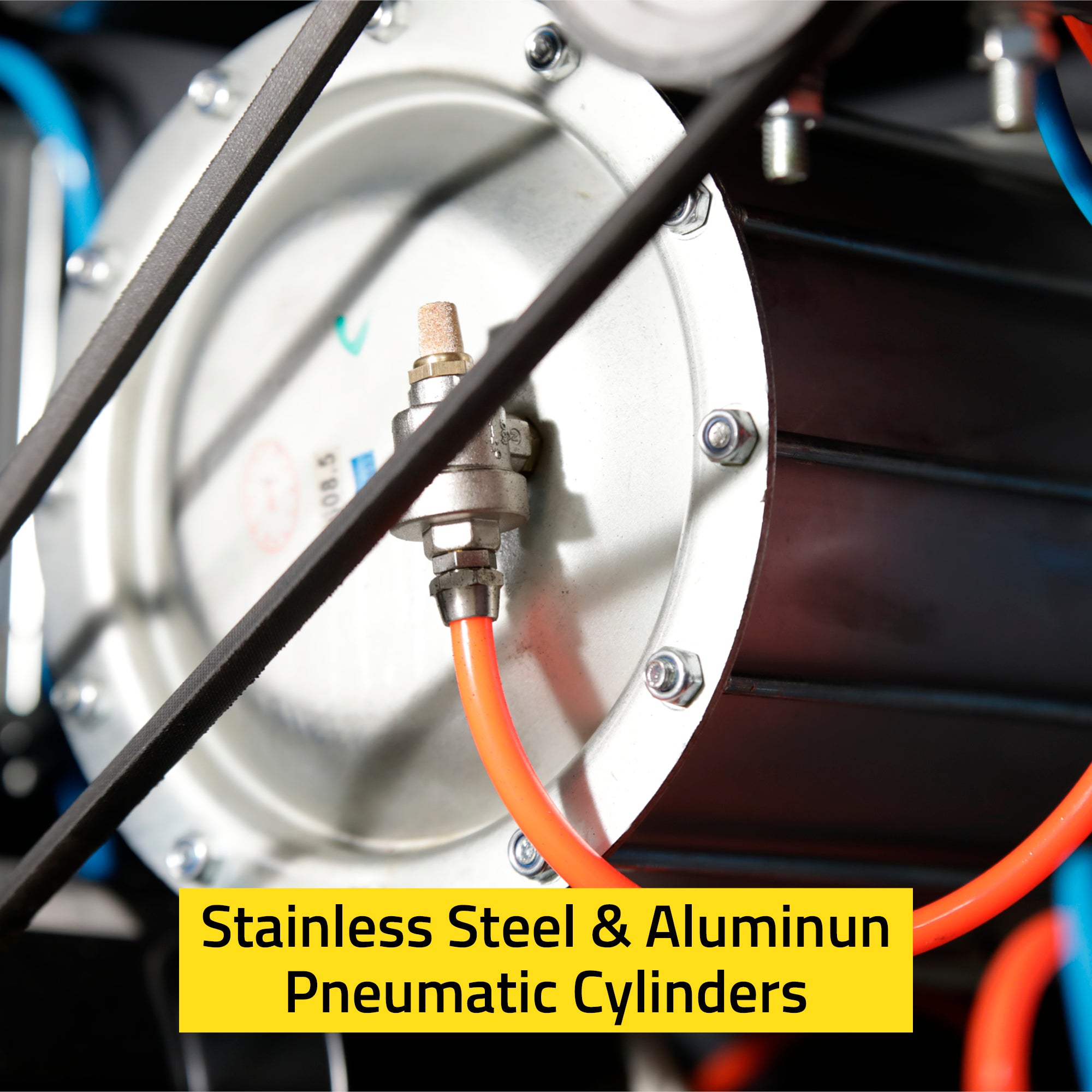

| Table clamping system | Dual pneumatic cylinders |

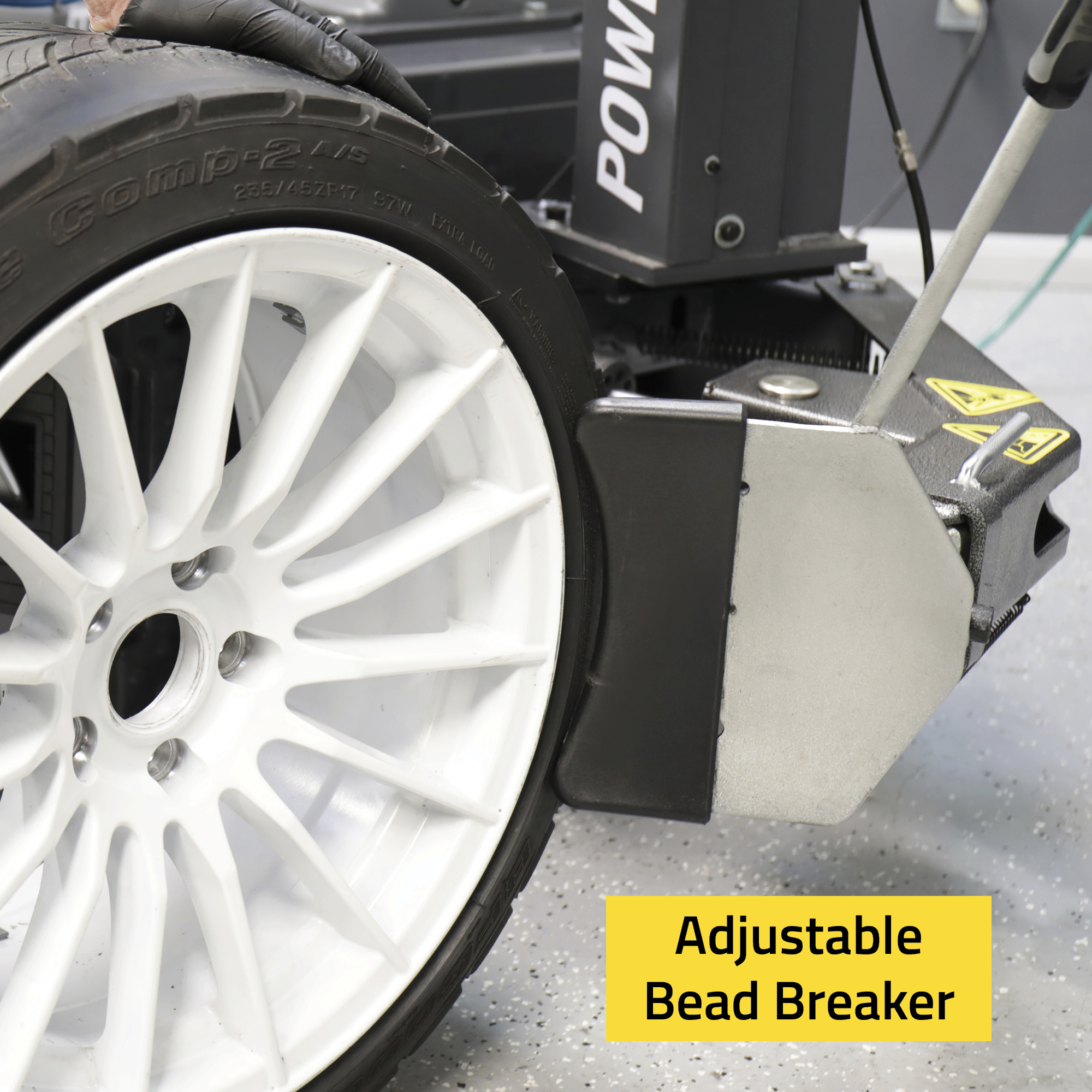

| Bead breaking system | Pneumatic blade |

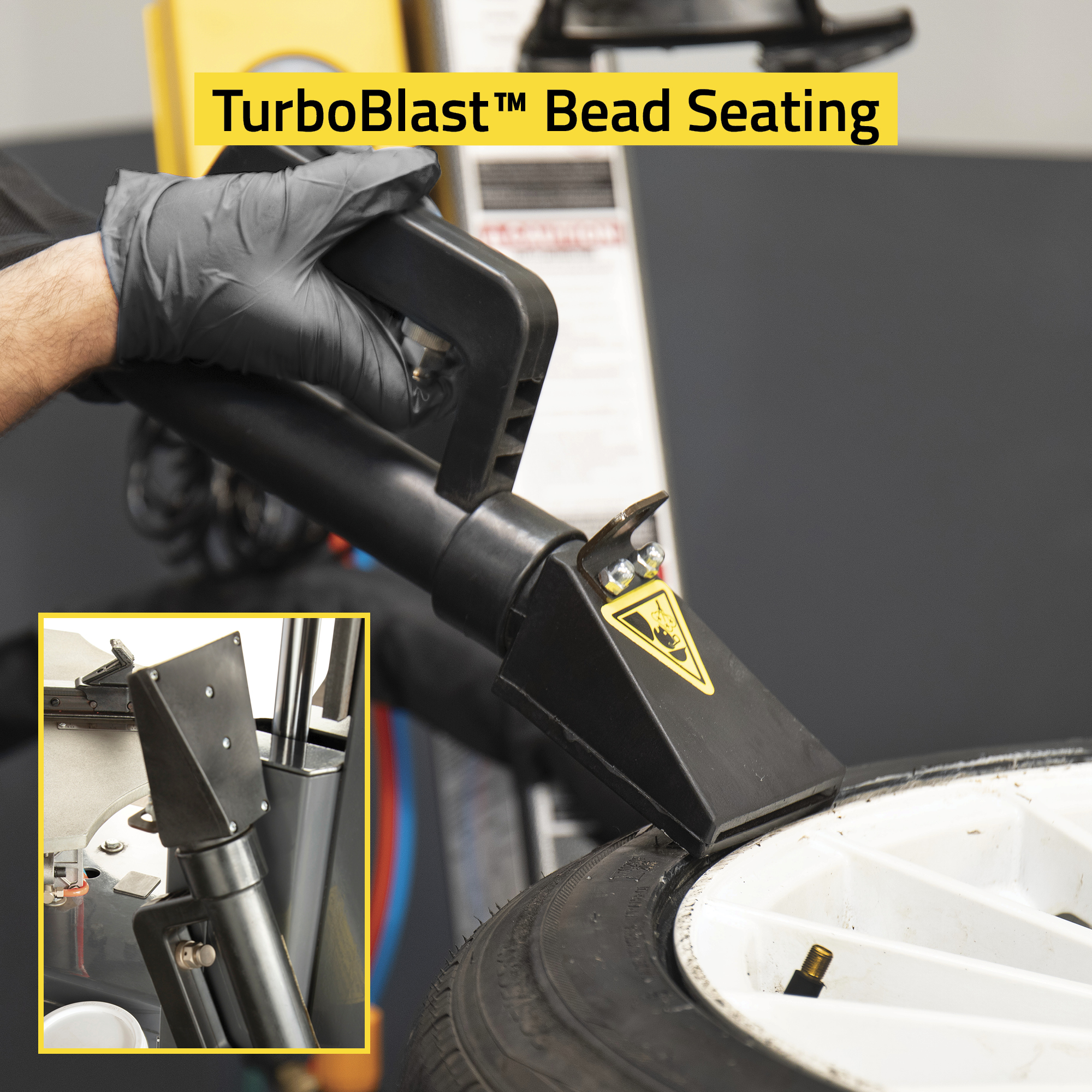

| Bead seating system | Turbo Blast bead seating |
| Tower design | Tilt-back |
| Power assist towers | Dual / left and right |

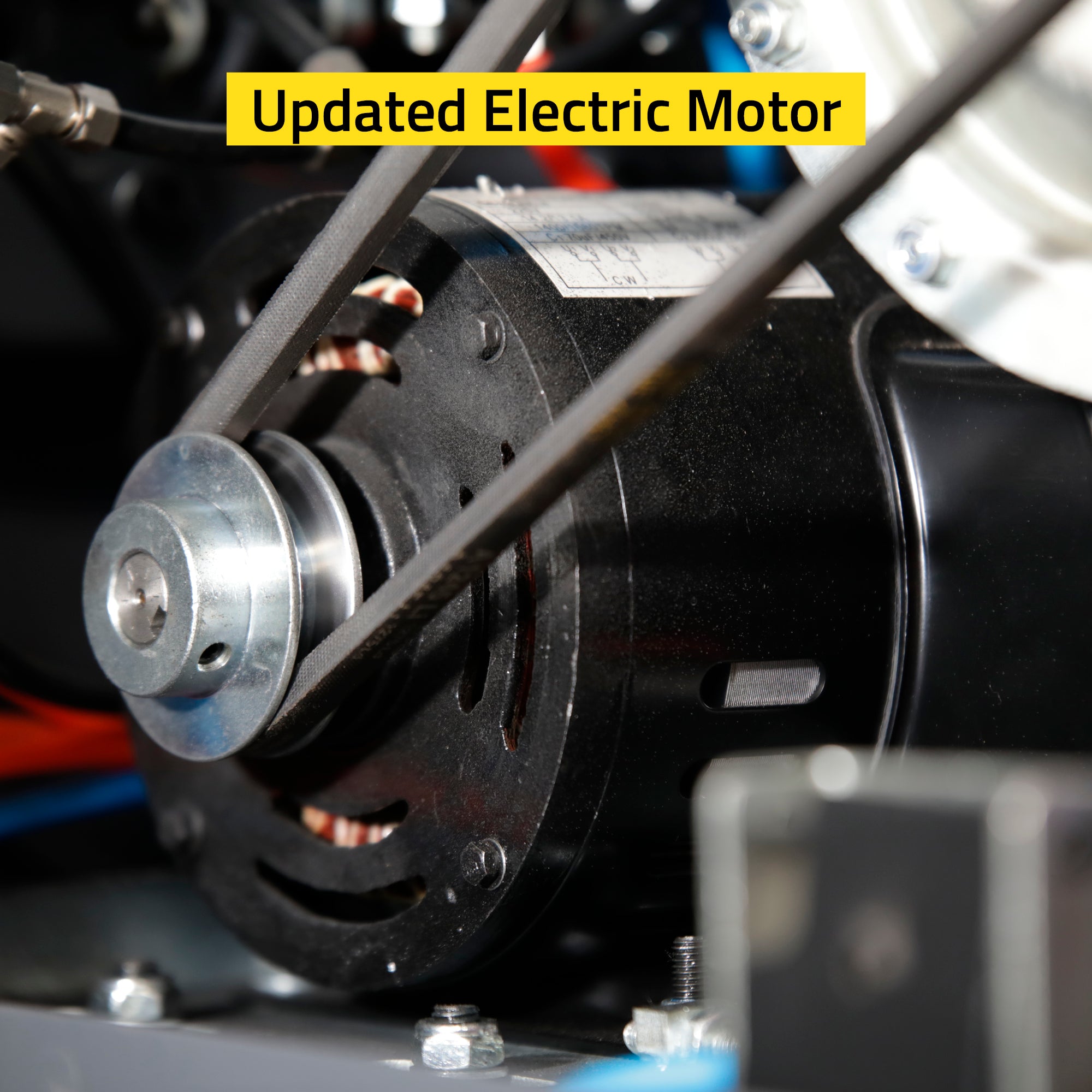

| Motor | 2.24 kW (3 HP) |
| Voltage | 220 VAC 50-60 HZ |
| Drive system | Electric / air |
| Air requirement | 965–1,138 kPa (140–165 PSI) |
| Recommended footprint | 1,829 x 1,778 x 1,930 mm (72 x 70 x 76 inches) |
| Shipping weight | 570 kg (1,256 lb) |
| Shipping dimensions | 1,651 x 1,524 x 1,829 mm (65 x 60 x 72 inches) |
