SKU: 5140177
The Ranger LS45DS takes much of the manual measuring out of wheel balancing. It is designed for busy tyre shops, dealerships, performance workshops and service centres where technicians want more automation and clearer guidance on every wheel.

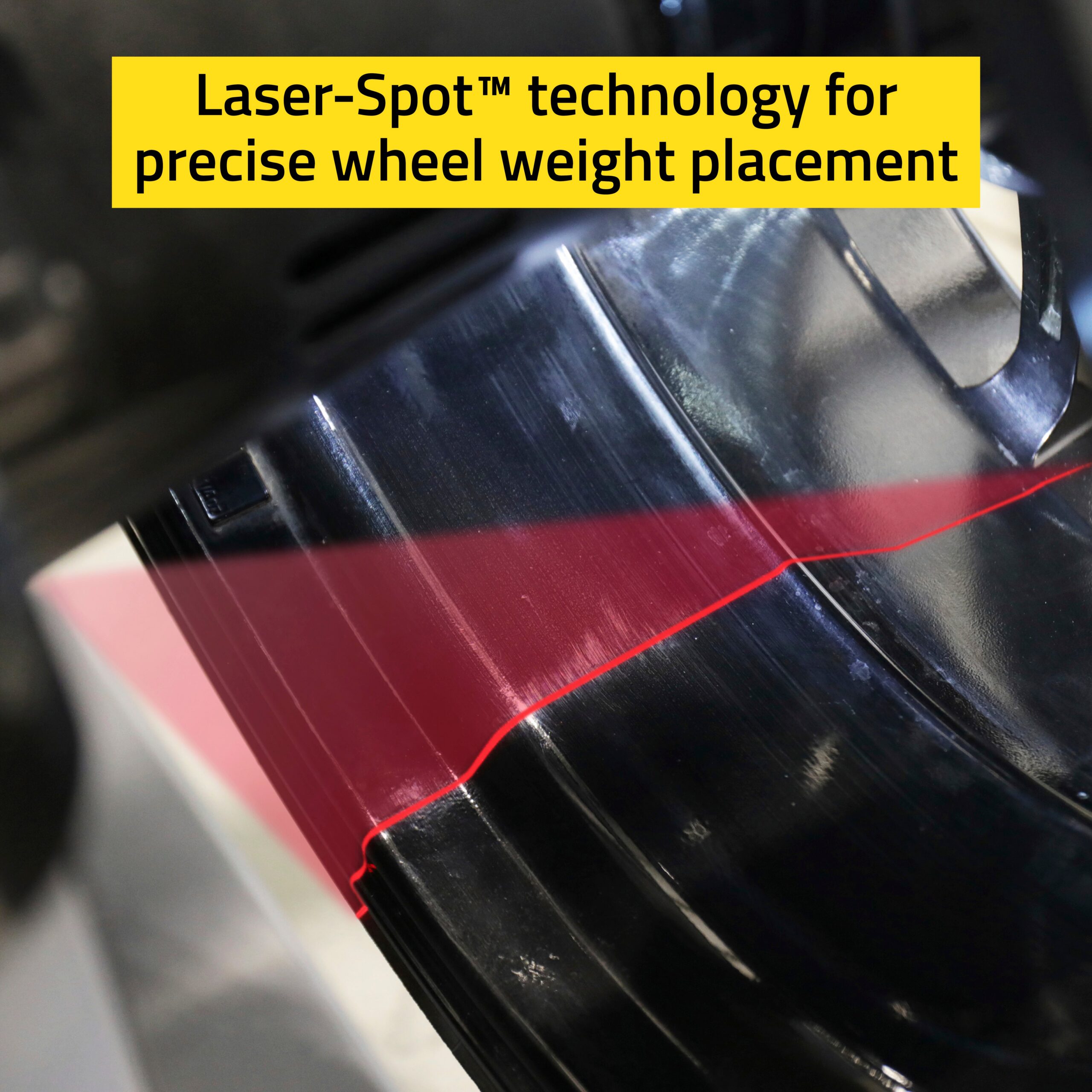

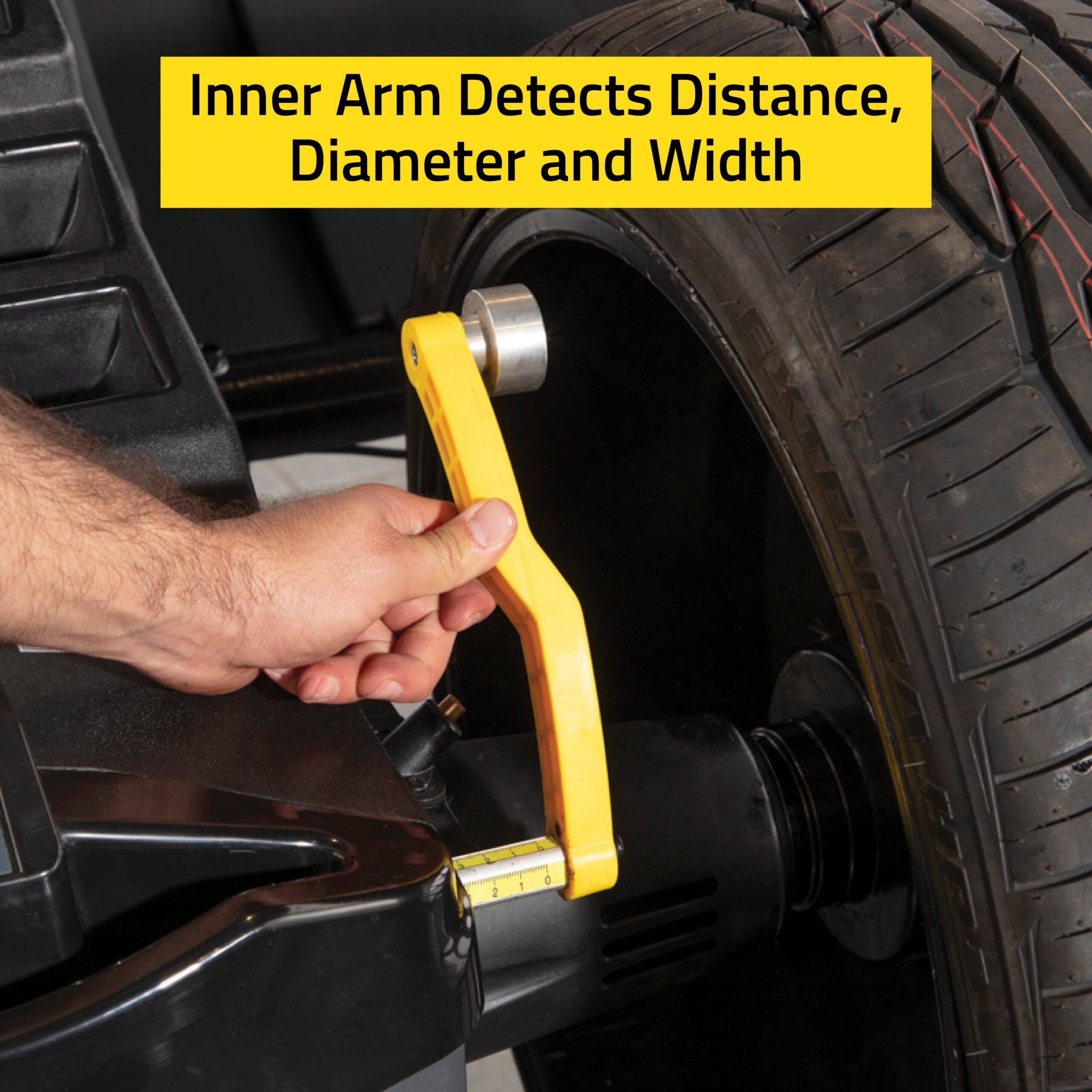

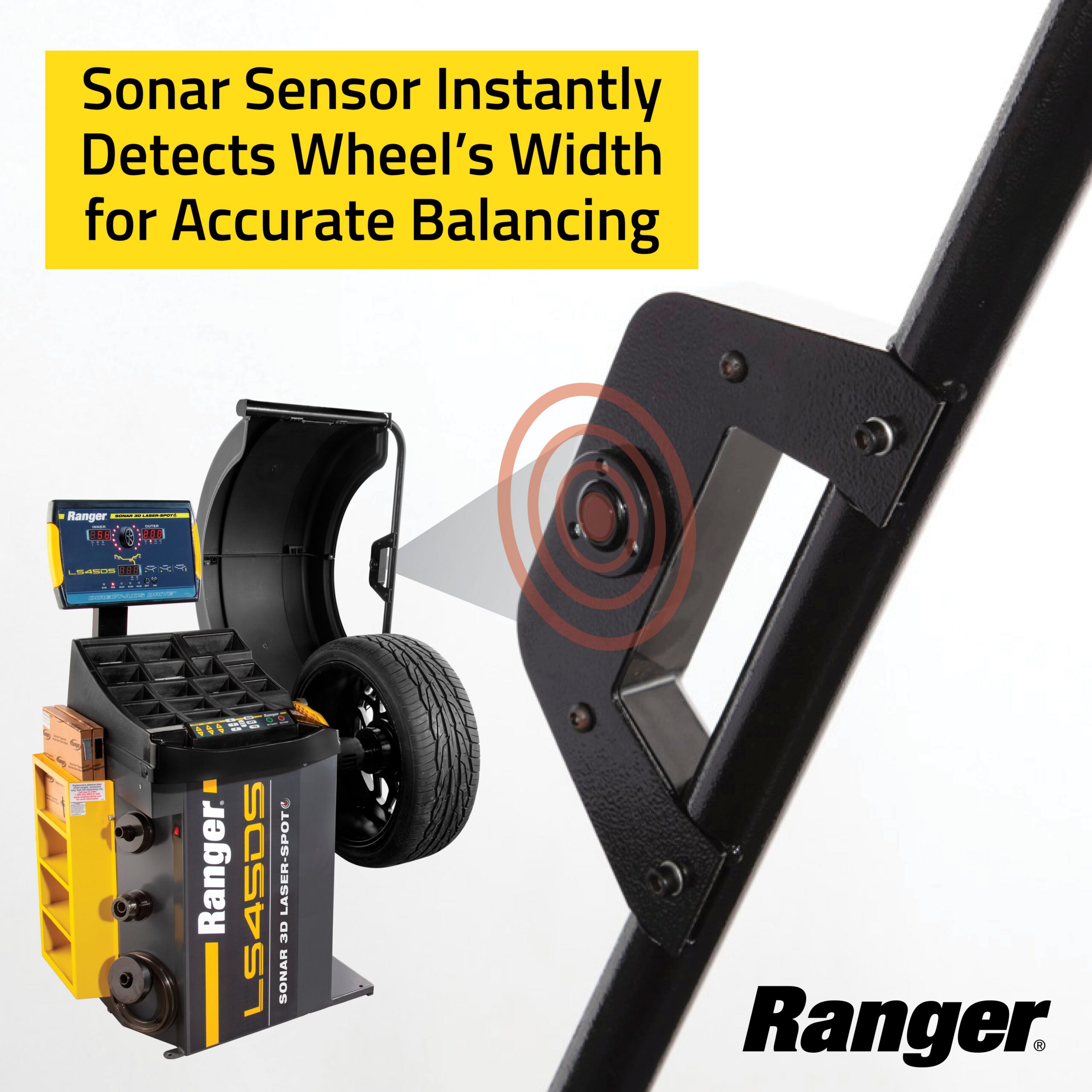

Built-in sonar reads wheel diameter, width and offset automatically through 3D auto data entry, which cuts setup time and the errors that come from measuring by hand. Once the spin is finished, a Laser-Spot marks where each weight goes, at 6 o’clock for stick-on weights and 12 o’clock for clip-on weights, so placement is accurate first time and comebacks are reduced.
The LS45DS handles wheels from 305 mm to 610 mm (12 to 24 inches) in diameter and up to 508 mm (20 inches) wide, with assemblies up to 66 kg. An open-side hood, low-RPM operation and an average cycle of around seven seconds keep the bay moving.

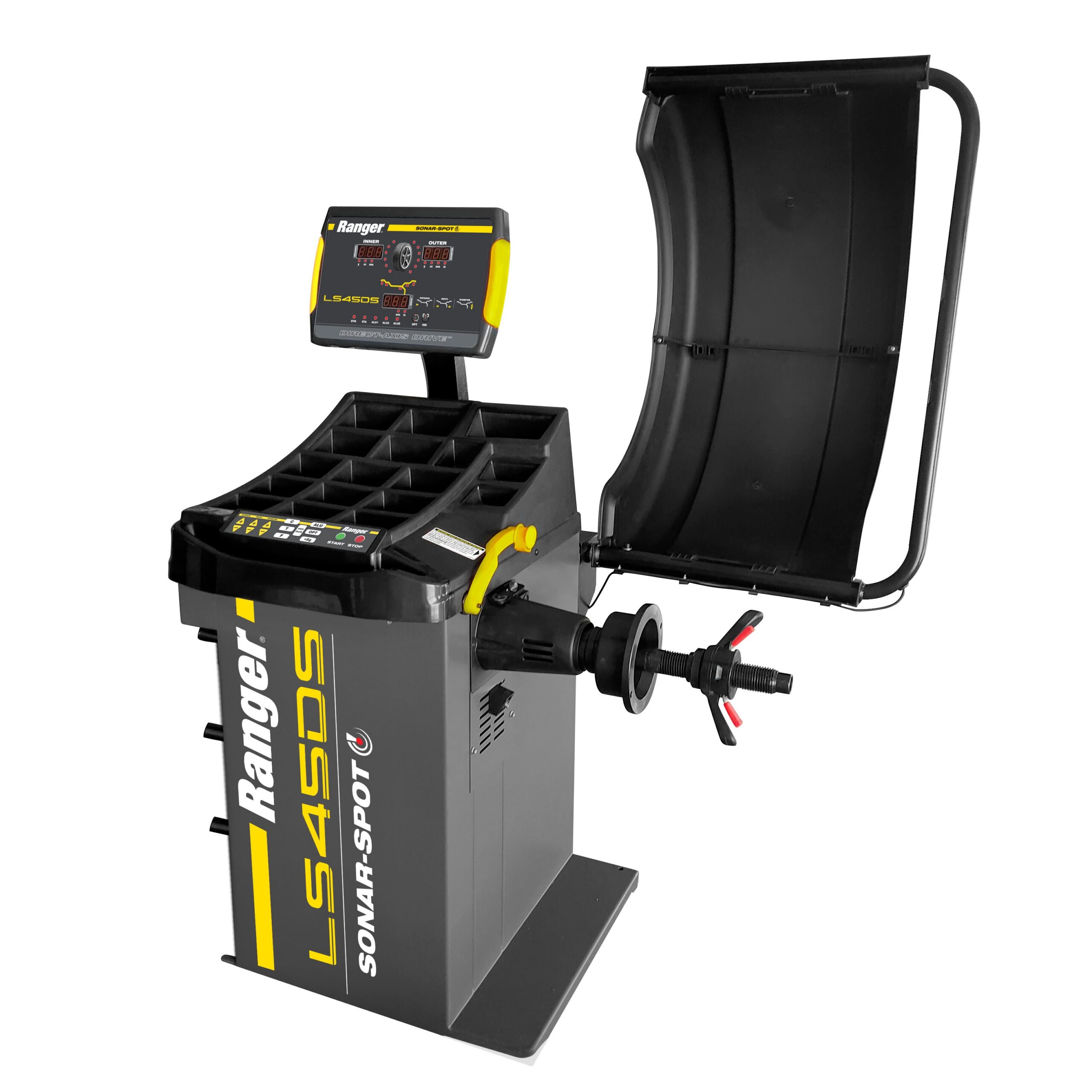

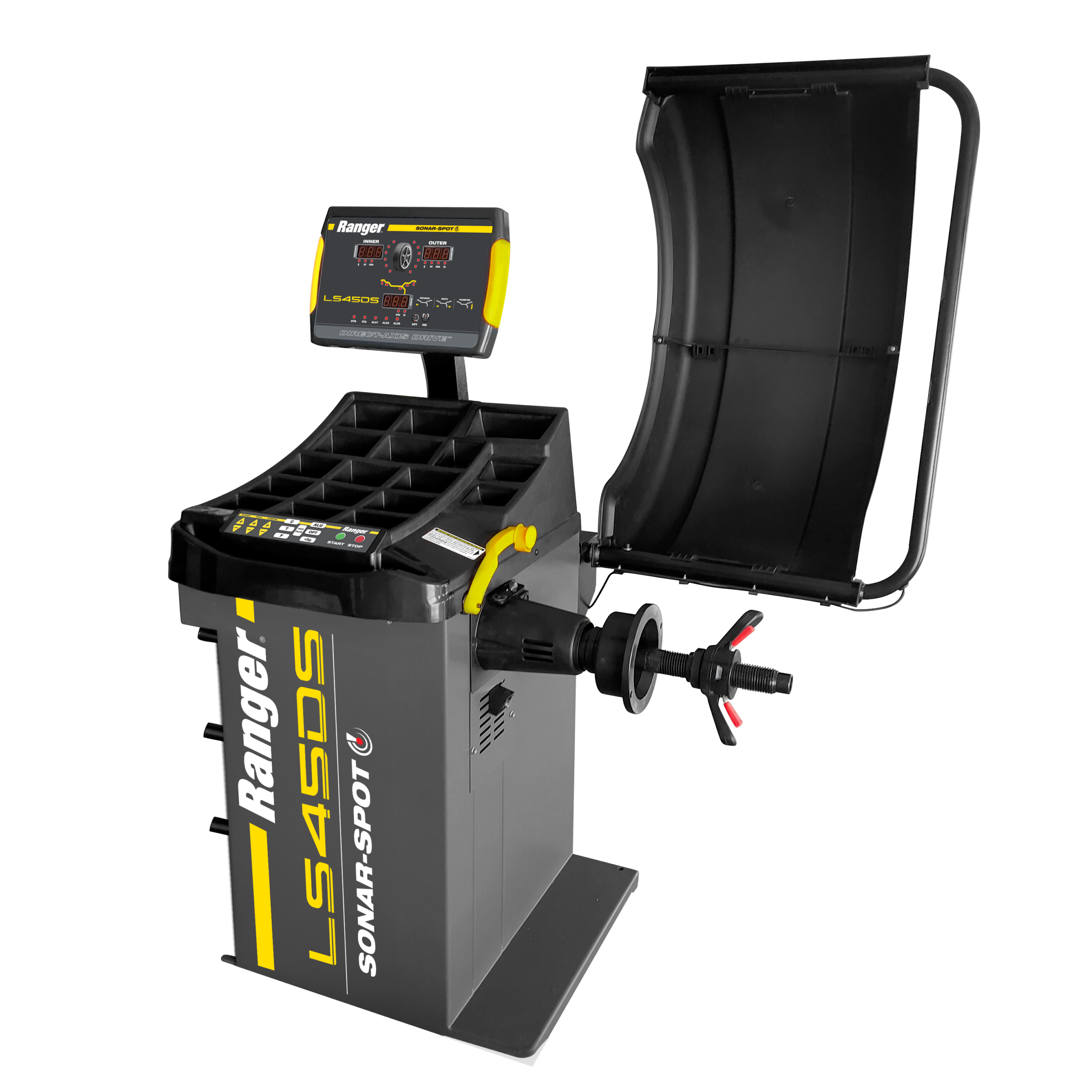

Sonar 3D Laser-Spot Wheel Balancer LS45DS by Ranger

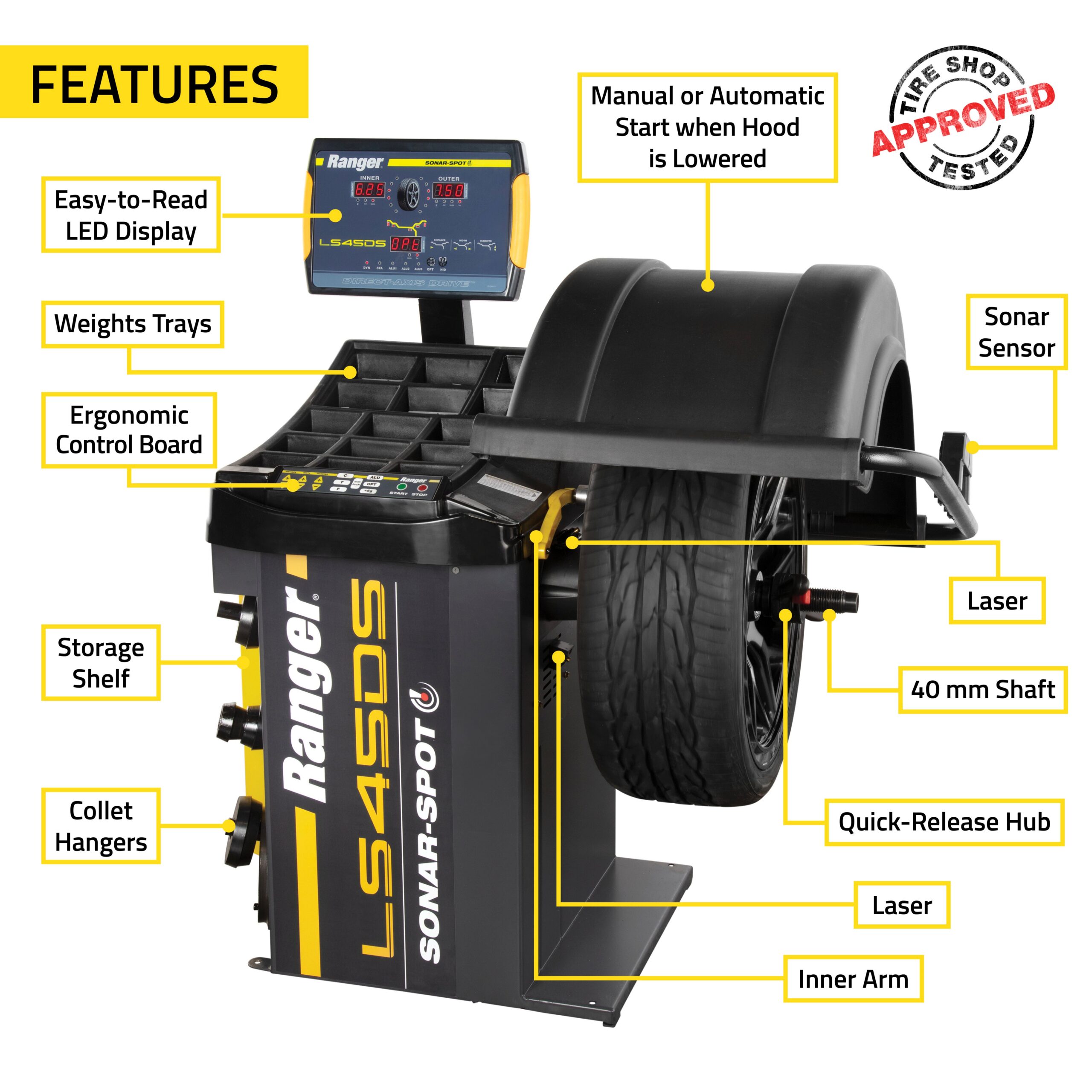

Features
Built for busy workshops
| Max tyre diameter | 1,092 mm (43 inches) |
| Max wheel weight | 66 kg (145 lb) |
| Wheel diameter | 305–610 mm (12–24 inches) |
| Wheel width | 102–508 mm (4–20 inches) |

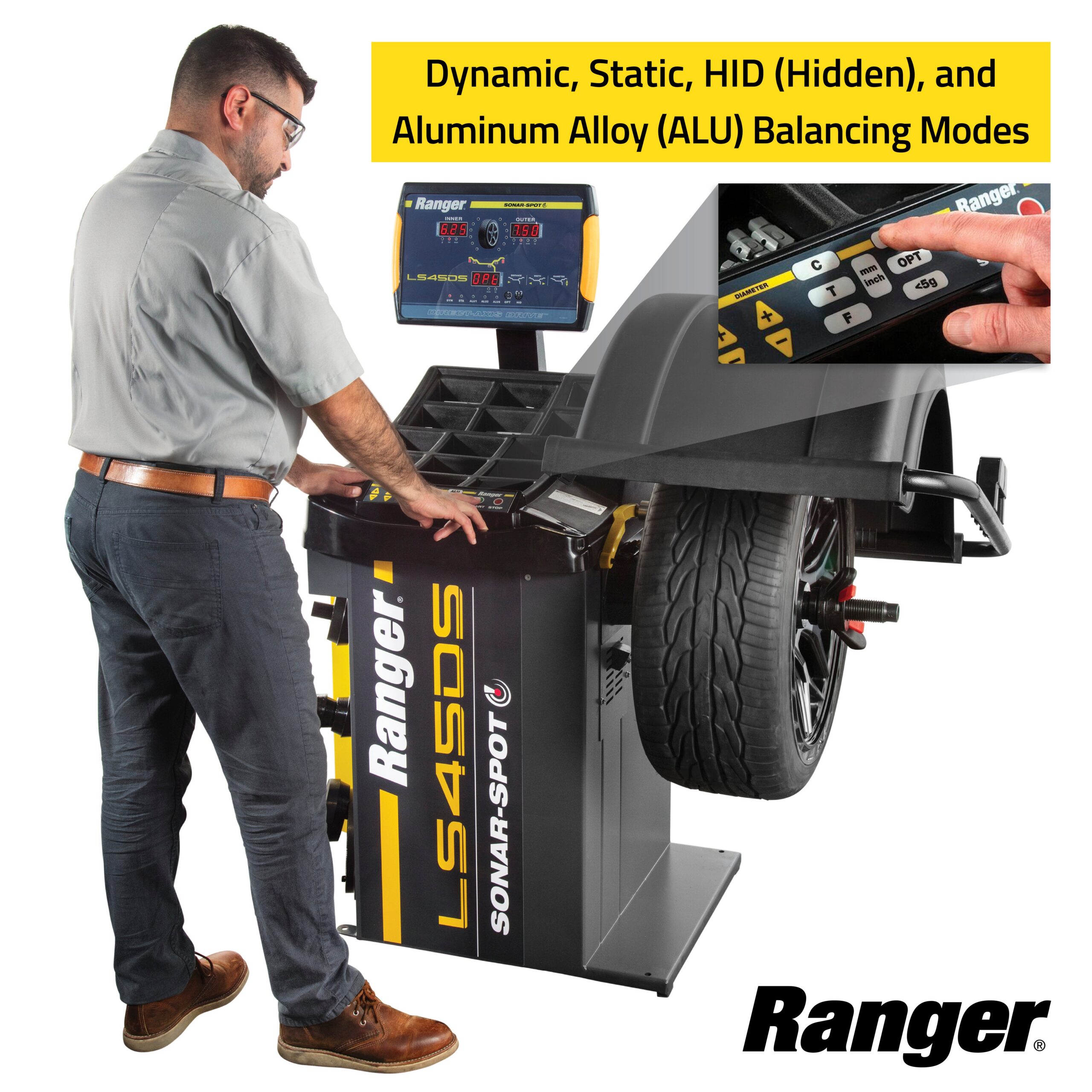

| Balancing modes | Dynamic / Static / Alloy / 1 Hidden |
| Balancing increments | 5 g or 0.25 oz (selectable) |
| Accuracy | ± 1 g (± 0.035 oz) |
| Resolution | 5 g or 0.25 oz (selectable) |
| Balancing speed | 260 RPM |
| Wheel braking | Automatic / Electronic Resistor |
| Average cycle time | 7 seconds |

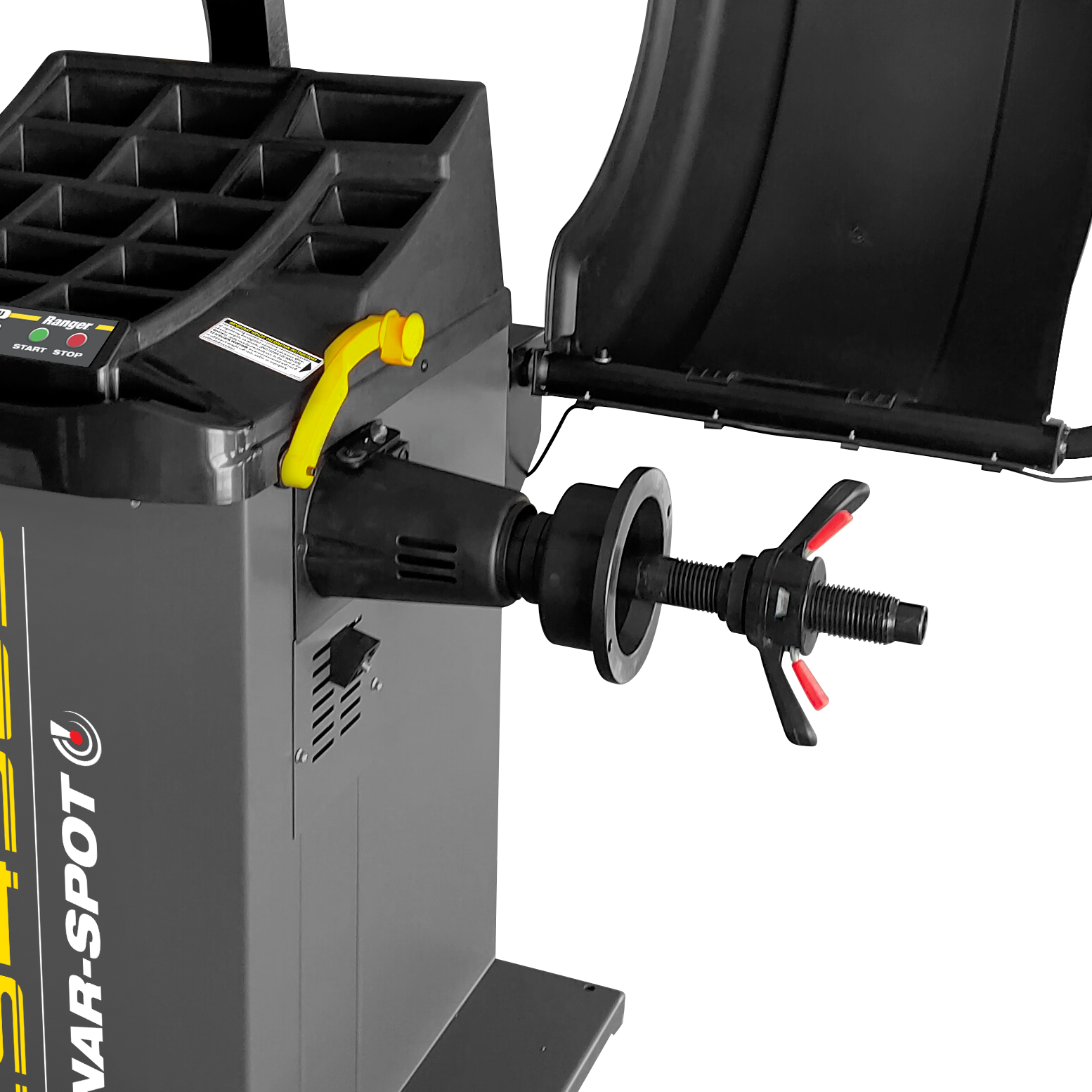

| Shaft size | 40 mm |
| Voltage | 208-240V / 50/60 Hz / 1-Phase |
| Drive system | Belt Drive |
| Working temperature | -5°C to 40°C (23°F to 104°F) |

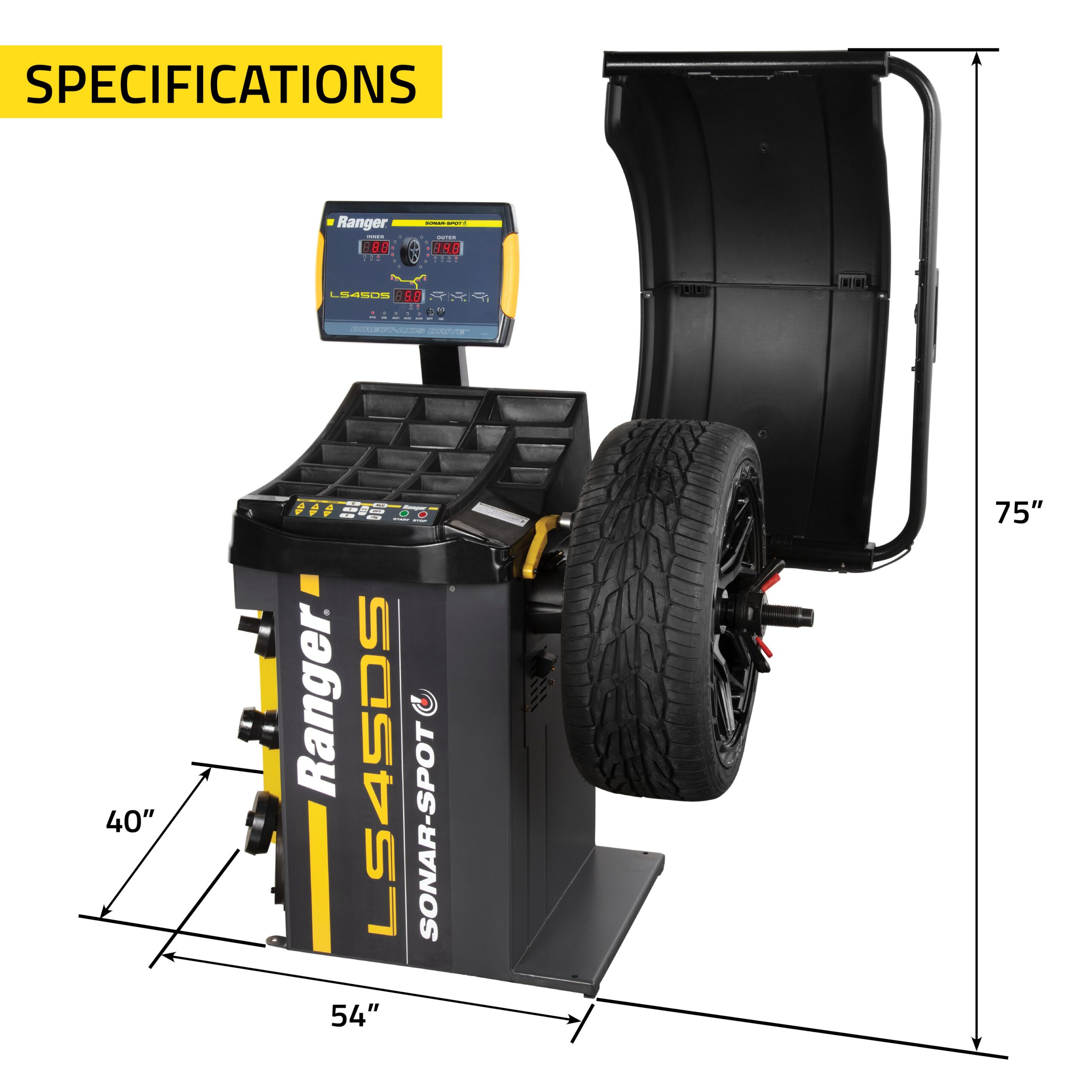

| Height, guard up | 1,905 mm (75 inches) |
| Height, guard down | 1,346 mm (53 inches) |
| Width | 1,270 mm (50 inches) |
| Depth | 1,016 mm (40 inches) |
| Shipping dimensions | 762 x 1,118 x 1,168 mm (30 x 44 x 46 inches) |
| Shipping weight | 206 kg (454 lb) |
