RML-1500XL

SKU: 5150605

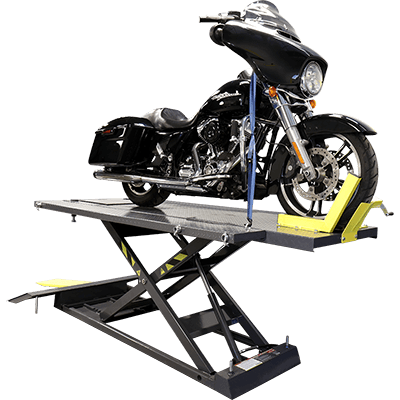

The Ranger RML-1500XL is a high-capacity motorcycle hoist platform, engineered for safe, efficient, and precise servicing of motorcycles, ATVs, and recreational vehicles. With a 680 kg lifting capacity, a stretched work platform, and hydraulic/air-powered lifting, this hoist is the ultimate all-in-one lifting solution for workshops and professional mechanics.

680 kg lifting capacity for motorcycles, ATVs, and trikes
Extended work platform for extra-large vehicles
Hydraulic & air-powered operation for efficient lifting
Diamond-plate surface with multiple safety lock positions
Removable rear deck for easy wheel and suspension work

Here to help

RML-1500XL

Features

Designed with rugged 12-gauge steel construction, the RML-1500XL ensures maximum durability and lifting power for all types of motorcycles and ATVs.

Extended Work Platform for Larger Vehicles
With a spacious platform measuring up to 2,591 mm in length, this hoist can easily accommodate long motorcycles, trikes, and custom choppers.

Powerful Hydraulic & Air Operation
Equipped with a dual-function power unit, allowing for both air and hydraulic operation, ensuring fast and effortless lifting.

Full-Perimeter Safety Lock System
Features multiple safety lock positions, providing stable and secure height adjustments at various levels.

Adjustable & Removable Side Decks
Includes reversible bolt-on side decks, allowing for customized workspace configurations.

Integrated Dyno-Rollers for Wheel Rotation Testing
A secondary rear deck with built-in dyno-rollers transforms the platform into a motorcycle testing simulator.

Materials & Tech

The RML-1500XL is built with reinforced 12-gauge steel, ensuring maximum strength, stability, and longevity.

RML-1500XL Motorcycle Hoist
Adjustable Front Wheel Vise
Removable Rear Deck for Wheel Service
Reversible Bolt-On Side Decks
Integrated Dyno-Rollers for Wheel Testing

Optional

Ranger RML-1100 Motorcycle Jack for full wheel service

Specifications

Capacity & Dimensions	Imperial	Metric
Lifting Capacity	1,500 lbs	682 kg
Max Lifting Height	45”	1,143 mm
Multiple Lock Positions	23.5” to 40.5”	597 mm to 1,029 mm

Power
Power Supply	Air / Hydraulic

Physical Dimensions	Imperial	Metric
Main Platform Length	89”	2,286 mm
Main Platform Length w/ Extension	102”	2,591 mm
Main Platform Width	30”	762 mm
Overall Width with Side Decks	53”	1,346 mm
Overall Length w/ Extension & Ramp	126”	3,200 mm
Lowered Height	7.5”	191 mm

Weight & Shipping	Imperial	Metric
Shipping Weight	832 lbs	377 kg
