SKU: 5140156
The Ranger DST2420 is a dependable wheel balancer for passenger car, SUV and light truck work. It handles wheels from 254 mm to 762 mm (10 to 30 inches) in diameter and tyres up to 1,194 mm (47 inches) tall, on a hardened 40 mm shaft.
Ranger’s Digital Sensor Technology does the measuring: a 16-digit digital signal processor working with dual-component quartz piezoelectric load sensors and a digital rotation encoder. The machine reads imbalance in more than one direction from a single spin, works out the least weight needed, and rounds the result to the top-dead-centre position.

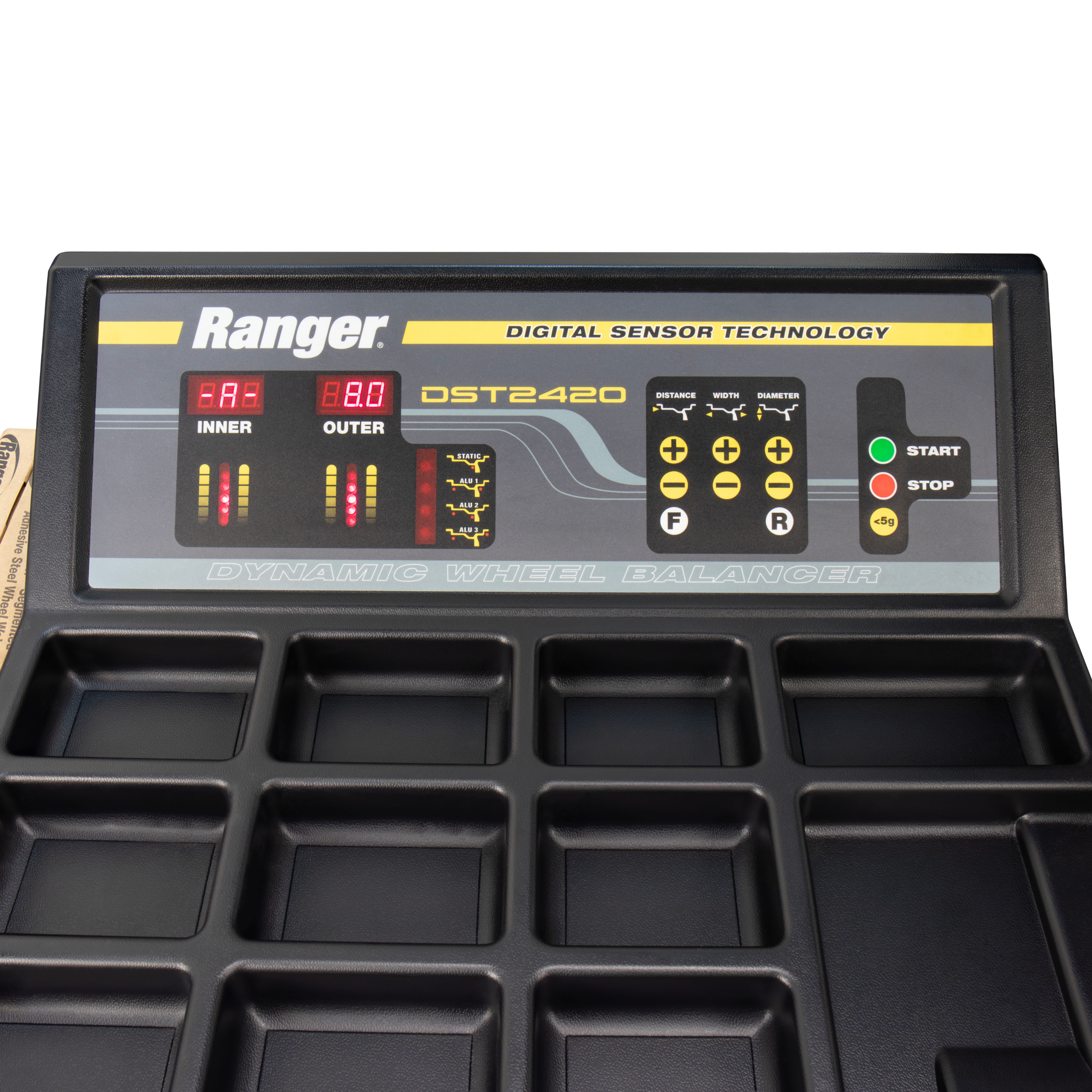

It is set up to keep wheels moving through the bay. Wheel parameters are entered by rolling the measuring arm, spins run at a low 180 RPM with a typical six to nine second cycle, the wheel brakes automatically, and LED indicators show exactly where each weight goes.
Wheel Balancer DST2420 by Ranger
Features
Built for the workshop
| Max tyre diameter | 1,194 mm (47 inches) |
| Max tyre weight | 66 kg (145 lb) |
| Wheel diameter capacity | 254–762 mm (10–30 inches) |
| Wheel width capacity | 38–457 mm (1.5–18 inches) |
| Balancing modes | Dynamic / Static / 3-Alloy |
| Balancing increments | 0.25 oz or 0.01 oz (selectable) |
| Accuracy | ±1 g (0.035 oz) |
| Resolution | 0.01 oz, 1.4° |
| Balancing speed | 180 RPM |
| Cycle time | 6–9 seconds (average) |
| Drive system | Belt drive |
| Wheel braking | Automatic / electronic |
| Shaft | 40 mm |
| Collets included | 3 standard, 1 truck |
| Motor | 1.5 HP, 110V / 220V, 50 / 60 Hz, 1Ph |
| Shipping dimensions | 965 × 762 × 1,168 mm (38 × 30 × 46 inches) |
| Shipping weight | 161 kg (356 lb) |
